Microscan FIS-0870-0007G Fixed Barcode Scanner
Full specifications (PDF)

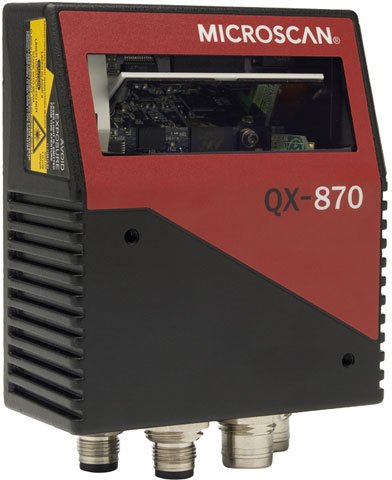

Microscan QX-870 Fixed Barcode Scanner Model Overview
The Microscan QX-870 Industrial Raster Laser Scanner is engineered to optimize barcode track, trace, and control applications. With its IP65-rated enclosure, this robust scanner is perfect for any industrial environment, ensuring reliability even in challenging conditions. The QX-870 offers superior performance with a scanning speed between 300 to 1400 scans per second, adaptable to various reading distances. Its intelligent raster technology allows for the seamless reading of damaged or mis-aligned barcodes, making it a flexible choice for modern manufacturing needs.
Key Features:
- Easy Setup: Features EZ Button for quick configuration without a computer.
- High Performance: Scans barcodes up to 30 inches (762 mm), ideal for versatile applications.
- Advanced Decoding: Supports damaged or poorly printed barcodes with X-Mode Technology.
- Multiple Connectivity Options: Includes optional embedded Ethernet TCP/IP for high-speed communication.
- Sweeping Raster: Programmable raster for reading multiple symbols efficiently.
Specifications:
- Dimensions: Height: 4.29" (109 mm), Width: 3.74" (95 mm), Depth: 1.76" (45 mm)
- Weight: 16 oz. (453 g)
- Read Range: 1 to 30" (25 to 762 mm)
- Scan Rate: Adjustable from 300 to 1400 scans/sec
- Operating Temperature: 0° to 50° C (32° to 122° F)
- Enclosure Rating: IP65
- Power Requirement: 10-28 VDC, 270mA at 24 VDC (typical)
- Supported Symbologies: Code 39, Codabar, Code 128, PDF417, GS1 Databar, and more.
Recommended Accessories
Category
- Cables, Connectors, and Adapters (1)
- Data Networking Device (4)
- Fixed Barcode Scanner Accessories (33)
- Miscellaneous (3)
- Mounting Hardware and Stands (2)
- Scanner Accessories (1)
Recommended Accessories for Model: Microscan FIS-0870-0007G Fixed Barcode Scanner
Top Cables, Connectors, and Adapters Purchased With Microscan FIS-0870-0007G
-
Microscan 61-000160-03 Cables, Connectors, and AdaptersQX Cordset, Host, Ethernet, M12 8-Pin Plug (Screw-On)-to-RJ45, 1 m. This product is non-returnable / non-cancelable.Ships from vendor — chat for lead time$163.93
Top Data Networking Device Purchased With Microscan FIS-0870-0007G
-
Microscan FIS-0210-0001G Data NetworkingMS-Connect 210, Connectivity Box with DisplayShips from vendor — chat for lead time$1,198.13 -
Microscan FIS-0210-0002G Data NetworkingMS-Connect 210, Connectivity BoxShips from vendor — chat for lead time$785.63 -
Microscan FIS-0210-0003G Data NetworkingMS-Connect 210, Connectivity Box with Display and Ethernet, This product is non-cancellable and non-returnableShips from vendor — chat for lead time$1,297.50
Top Fixed Barcode Scanner Accessories Purchased With Microscan FIS-0870-0007G
-
Microscan 98-500006-01 AccessoryKit, Mounting plate, MS-710, MS-820, QX-830, QX-870, This product is non-cancellable and non-returnableShips from vendor — chat for lead time$39.78 -
Microscan 20-610024-01 AccessoryTrigger Connector, 4-pin Plug (screw terminal and field wireable for custom wiring into IB-131)Item on backorder — chat for lead time$41.00 -
Microscan 98-000037-01 AccessoryMounting Arm Extension Kit, 6", all readers, This product is non-cancellable and non-returnableShips from vendor — chat for lead time$100.71
Top Miscellaneous Purchased With Microscan FIS-0870-0007G
-
Microscan 98-000013-04 ProductsRelay Module, 120VAC, 3 Amp Output, Series 70, Type SM, for MS-Connect 210 and MS-890, This product is non-cancellable and non-returnableShips from vendor — chat for lead time$90.00 -
Microscan 98-000013-05 ProductsRelay Module, 240VAC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 and MS-890, This product is non-cancellable and non-returnableShips from vendor — chat for lead time$90.00 -
Microscan 98-000013-06 ProductsRelay Module, 24VDC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 and MS-890Ships from vendor — chat for lead time$90.00
Top Mounting Hardware and Stands Purchased With Microscan FIS-0870-0007G
-
Microscan 98-000016-01 Mounting Hardware and StandsMounting Arm/Adapter Kit, MS-710/820/860, 6 inchShips from vendor — chat for lead time$198.21 -
Microscan 98-000054-01 Mounting Hardware and StandsKit, Mounting Stand base plateShips from vendor — chat for lead time$60.00
Top Scanner Accessories Purchased With Microscan FIS-0870-0007G
-
Microscan 97-000012-01 AccessoryPower Supply, 100-240VAC, +24VDC, M12 12-pin SocketItem on backorder — chat for lead time$212.00
