Metrologic MS9520 Voyager – Barcode Scanner – 1D

Part Number: MK9520-77A47
Model: MS9520 Voyager
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  PS/2 kit, 1D Laser. Includes PS/2 coiled cable and stand. Color: Gray.
Explore all Metrologic MS9520 Voyager Barcode Scanners
Add to Quote

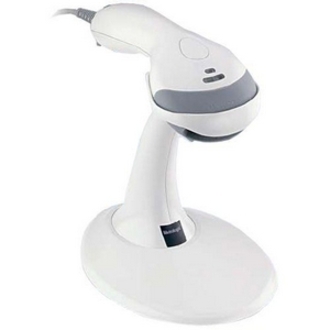

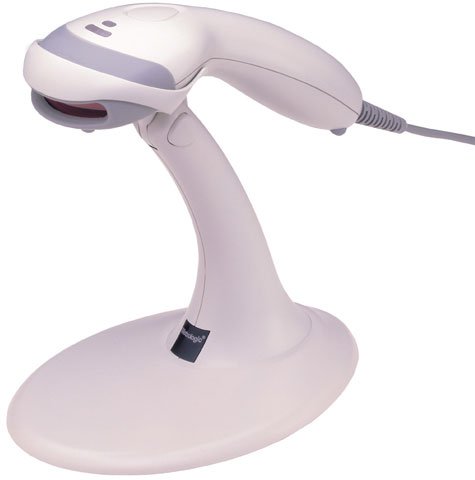

Metrologic MK9520-77A47 Barcode Scanner
Metrologic MK9520-77A47 Barcode Scanner
Metrologic MK9520-77A47 Barcode Scanner
Metrologic MK9520-77A47 Barcode Scanner Metrologic MK9520-77A47 Barcode Scanner Metrologic MK9520-77A47 Barcode Scanner
Full specifications (PDF)

Metrologic MS9520 Voyager Barcode Scanner Model Overview

The MS9520 Voyager can be used as both a handheld and fixed projection scanner. The MS9520 Voyager is packed with all of the same features as the MS9540, with the exception of CodeGate. All units feature a five year warranty.
Metrologic MK9520-77A47 Barcode Scanner Overview

The Metrologic Voyager MS9520 Bar Code Reader is a hand-held, single-line scanners have united form with function to become the industry benchmark for value and performance. These sleek scanners feature a patented automatic infrared activation and decode all standard 1D bar codes, including RSS codes.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • All Standard 1D Symbologies
Light Source:
Laser
Scan Rate:
72 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 2"@5.2mil
  • 0" - 5"@7.5mil
  • 0" - 7"@10.4mil
  • 0" - 8"@13mil
  • 1" - 10"@21mil
Scan Pattern:
Single Line
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
White
Height:
7.8"
Width:
4"
Depth:
1.6"
Weight (Approximate):
5.26 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • USB
  • Keyboard Wedge
  • OCIA
  • IBM 468X/469X
  • Light Pen Emulation
  • Laser Emulation

    • Certifications & Standards:

    Laser Class 1:

    • Class 1; IEC60825-1:1993/A1:1997+A2:2001
    • Class 1; EN60825-1:1994/A11:1996+A2:2001

    EMC:

    • FCC Class B
    Environmentally Friendly:
    Yes
    Environmental Certification:
    • RoHS
    • WEEE
    Item Numbers
    GTIN: 2002500610008, 4016138420722, 4250204911138
    EAN: 2002500610008, 4016138420722, 4250204911138
    UNSPSC: 43211701
