Honeywell MS9540 Voyager – Barcode Scanner – 1D

Part Number: MK9540-77A47
Model: MS9540 Voyager
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  KBW Kit: light gray scanner (MS9540-47), stand (46-46128 and 46-46351), coiled KBW
Explore all Honeywell MS9540 Voyager Barcode Scanners
Add to Quote

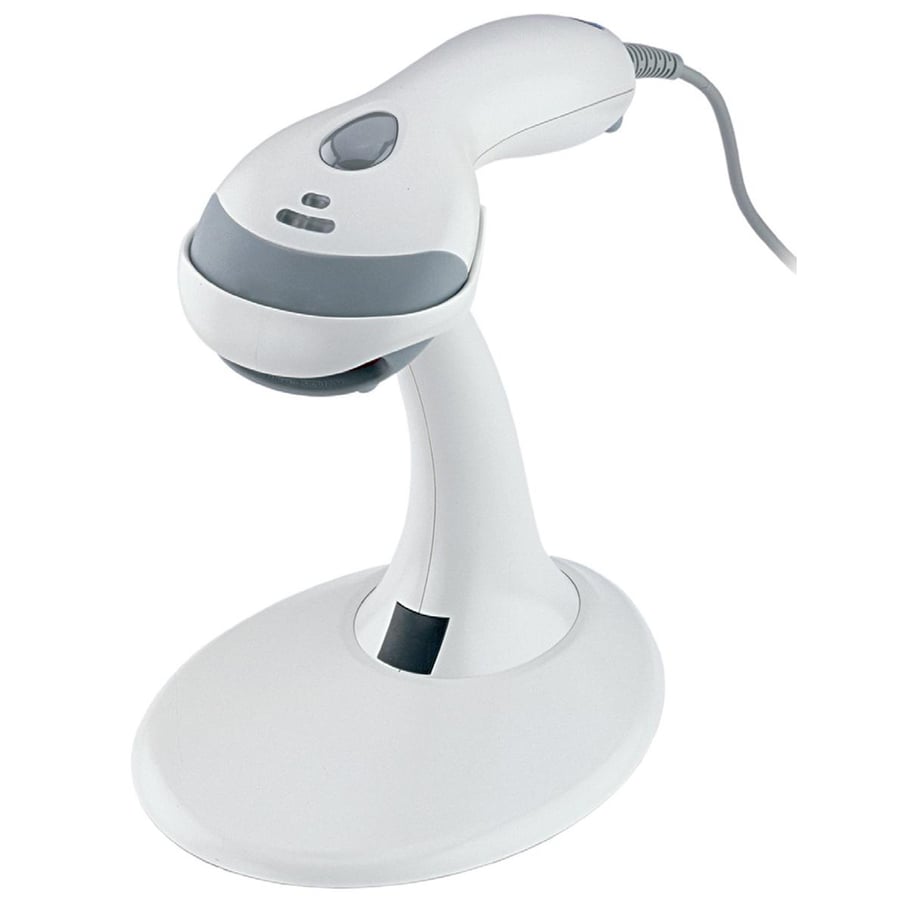

Honeywell MK9540-77A47 Barcode Scanner
Honeywell MK9540-77A47 Barcode Scanner
Honeywell MK9540-77A47 Barcode Scanner Honeywell MK9540-77A47 Barcode Scanner
Full specifications (PDF)

Honeywell MS9540 Voyager Barcode Scanner Model Overview

The MS9540 Voyager features Honeywell's proprietary CodeGate technology. CodeGate is an intuitive scanning system that is ideal for all scanning applications, including menu-scanning, Point-of-Sale, document processing, and inventory, just to name a few. All units feature a five year warranty.
Honeywell MK9540-77A47 Barcode Scanner Overview

VoyagerCG MS9540 Bar Code Reader offers high performance scanning, a futuristic design and a more intuitive

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • All Standard 1D Symbologies
  • RSS-14
Light Source:
Laser
Scan Rate:
72 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 2"@5.2mil
  • 0" - 5"@7.5mil
  • 0" - 7"@10.4mil
  • 0" - 8"@13mil
  • 1" - 10"@21mil
Scan Pattern:
Single Line
Interfaces/Ports
Host Interface:
Keyboard Wedge
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Product Color:
Gray
Height:
7.8"
Width:
4"
Depth:
1.6"
Weight (Approximate):
5.25 oz
Miscellaneous
Package Contents:
  • VoyagerCG MS9540 Bar Code Reader
  • Manual
Additional Information:

Supported Interface:

Keyboard Wedge

USB Cable separate

Certifications & Standards:

Laser Class:

  • CDRH Class II;
  • EN60825-1:1994/A11:1996 Class 1

EMC:

  • FCC
  • ICES-003
  • EN55022 Class B
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 2002500620007, 4250204911299, 5712505305874
EAN: 2002500620007, 4250204911299, 5712505305874
UNSPSC: 43211701
