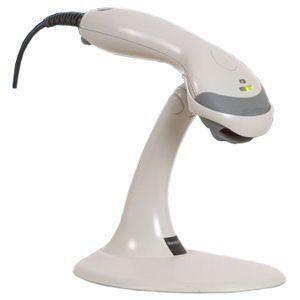

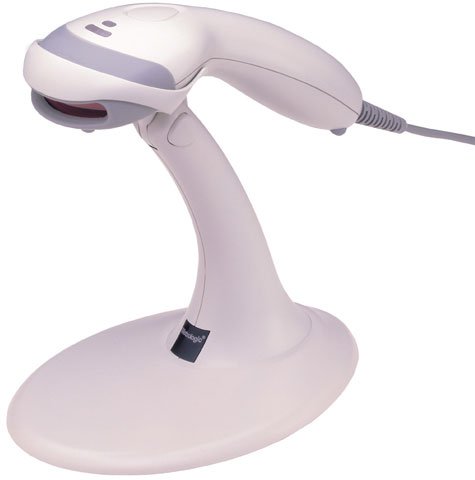

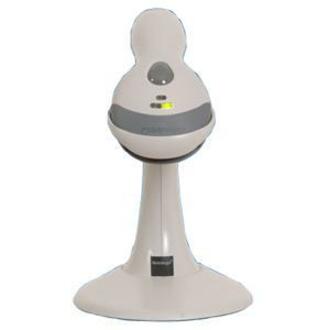

Metrologic MK9520-72B41 Barcode Scanner

Metrologic MK9540-72B41 Barcode Scanner A newer version of this item is available.
It is replaced by the Metrologic MK9540-72B41 Barcode Scanner.
Metrologic MS9520 Voyager - RS-232 kit, 1D Laser. Includes RS-232 cable, power supply, and stand. Color: Gray.
Connectivity
Corded
Form Factor
Handheld
Interface Options
Serial
Scanner Capability
1D
Scanner Type
Laser
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Scan barcodes with a staggering speed of 72 scan/s
Read More
Metrologic MS9520 Voyager Barcode Scanner Model Overview
The MS9520 Voyager can be used as both a handheld and fixed projection scanner. The MS9520 Voyager is packed with all of the same features as the MS9540, with the exception of CodeGate. All units feature a five year warranty.
Metrologic MK9520-72B41 Barcode Scanner Overview

The Metrologic Voyager MS9520 hand-held, single-line scanner have united form with function to become the industry benchmark for value and performance. This sleek scanner feature a patented automatic infrared activation and decode all standard 1D bar codes, including RSS codes.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • All Standard 1D Symbologies
Light Source:
Laser
Scan Rate:
72 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 2"@5.2mil
  • 0" - 5"@7.5mil
  • 0" - 7"@10.4mil
  • 0" - 8"@13mil
  • 1" - 10"@21mil
Scan Pattern:
Single Line
Scanning Distance:
8"
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Gray
Height:
7.8"
Width:
3.1"
Depth:
1.6"
Weight (Approximate):
5.26 oz
Miscellaneous
Package Contents:
  • Voyager MS9520 Bar Code Reader
  • MetroSelect Single-Line Configuration Guide
  • MS9500 Voyager Series Single-Line Hand Held Laser Scanner User's Guide
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • Serial
  • OCIA
  • IBM 468X/469X
  • USB
  • Platform Supported:
    PC
    Certifications & Standards:

    Laser Class:

    • CDRH: Class II
    • EN60825-1:1994/A11:1996 Class 1

    EMC:

    • FCC
    • ICES-003 Class B
    • EN55022 Class B
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    GTIN: 0000886715036, 0783555087794, 4923773196663, 4923773197134, 4963273165912
    UPC: 000886715036, 783555087794
    EAN: 0000886715036, 0783555087794, 4923773196663, 4923773197134, 4963273165912
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Metrologic MK9520-72B41 Barcode Scanner is also known as MET-MK952072B41 or MK952072B41.
