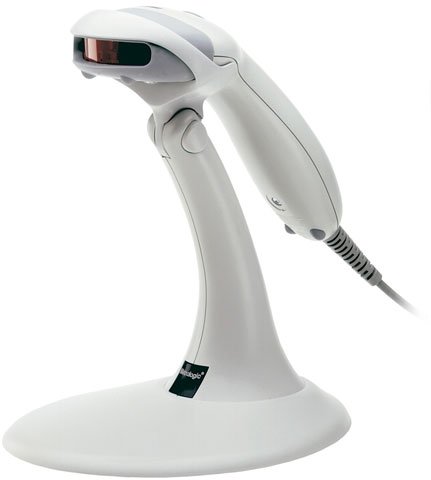

Metrologic MK9540-72B41 Barcode Scanner

A newer version of this item is available.
It is replaced by the Honeywell MK9540-72B41-6 Barcode Scanner.

Metrologic MS9540 Voyager - RS-232 kit, 1D Laser. Includes RS-232 cable, power supply, and stand. Color: Gray.

Connectivity

Corded

Form Factor

Handheld

Interface Options

Serial

Scanner Capability

Scanner Type

CCD, Imager

Wired connectivity makes this scanner ideal for retail and desktop applications
Powerful laser scan source provides 72 scan/s decode rate
Scan barcodes with a staggering speed of 72 scan/s

Need a different version? See all Metrologic MS9540 Voyager Barcode Scanners

Discontinued See Replacement

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

Metrologic MS9540 Voyager Barcode Scanner Model Overview

The MS9540 Voyager features Metrologic's proprietary CodeGate technology. CodeGate is an intuitive scanning system that is ideal for all scanning applications, including menu-scanning, Point-of-Sale, document processing, and inventory, just to name a few. All units feature a five year warranty.

Metrologic MK9540-72B41 Barcode Scanner Overview

VoyagerCG MS9540 is auto-trigger, single-line laser Bar Code Reader designed for decoding all standard 1D bar codes, including RSS codes. Its sleek, futuristic design certainly catch your attention. But looks get you only so far, its performance and value that really count. It is here that VoyagerCG excels and sets new industry standards. It features the CodeGate data transmission technology.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

All Standard Symbologies
RSS

Light Source:

Laser

Scan Rate:

72 scan/s

Maximum Scan Resolution:

5 mil

Depth of Field:

0" - 2"@5.2mil
0" - 5"@7.5mil
0" - 7"@10.4mil
0" - 8"@13mil
1" - 10"@21mil

Scan Pattern:

Single Line

Scanning Distance:

Stand Included:

Yes

Interfaces/Ports

Host Interface:

Serial

Power Description

Input Voltage:

110 V AC

Power Supply Included:

Yes

Physical Characteristics

Color:

Gray

Height:

7.8"

Width:

3.1"

Depth:

1.6"

Weight (Approximate):

5.26 oz

Miscellaneous

Package Contents:

VoyagerCG MS9540 Bar Code Reader
110V Power Supply
Mask Stand
Coiled 9-pin Femal Connector Cable
Manuals

Additional Information:

Laser Power: 0.96 mW (peak)
Scan Pattern: Single scan line
Roll, Pitch, Yaw: 42°, 68°, 52°
Termination: 10 pin modular RJ45
DC Transformers: Class 2; 5.2 VDC @ 650 mA

System Interfaces:

PC Keyboard Wedge
RS232
OCIA
Light Pen Emulation
Non-decode Emulation
IBM 468X/469X
Stand Alone Keyboard
USB (low speed and full speed)

USB Cable separate

Platform Supported:

Certifications & Standards:

Laser Class:

Class 1 In accordance with IEC 60825-1:1993+A1:1997+A2:2001
Class 1 In accordance with EN 60825-1:1994+A11:1996+A2:2001

EMC:

FCC
ICES-003
EN55022 Class B

Warranty

Limited Warranty:

5 Year

Item Numbers

GTIN: 0000004523680, 0000004651901, 0783555087800

UPC: 000004523680, 000004651901, 783555087800

EAN: 0000004523680, 0000004651901, 0783555087800

UNSPSC: 43211701
