Metrologic MK9520-72A47 Barcode Scanner

A newer version of this item is available.
It is replaced by the Honeywell MK9540-77A47 Barcode Scanner.

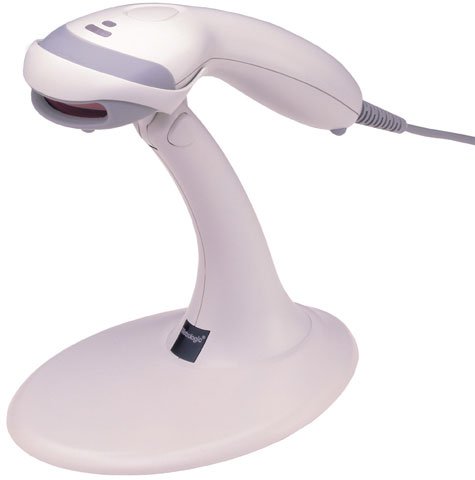

Metrologic MS9520 Voyager - PS/2 kit, 1D Laser. Includes PS/2 cable and stand. Color: Gray. Non-Cancelable/Non-Returnable.

At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
Perfect for applications that require direct association with a workstation or a notebook
With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Scan barcodes with a staggering speed of 72 scan/s

Need a different version? See all Metrologic MS9520 Voyager Barcode Scanners

Discontinued See Replacement

Add to Quote

Overview

Full specifications (PDF)

Metrologic MS9520 Voyager Barcode Scanner Model Overview

The MS9520 Voyager can be used as both a handheld and fixed projection scanner. The MS9520 Voyager is packed with all of the same features as the MS9540, with the exception of CodeGate. All units feature a five year warranty.

Metrologic MK9520-72A47 Barcode Scanner Overview

The Metrologic Voyager MS9520 hand-held, single-line scanner have united form with function to become the industry benchmark for value and performance. This sleek scanner feature a patented automatic infrared activation and decode all standard 1D bar codes, including RSS codes.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

All Standard 1D Symbologies

Light Source:

Laser

Scan Rate:

72 scan/s

Maximum Scan Resolution:

5 mil

Depth of Field:

0" - 2"@5.2mil
0" - 5"@7.5mil
0" - 7"@10.4mil
0" - 8"@13mil
1" - 10"@21mil

Scan Pattern:

Single Line

Interfaces/Ports

Host Interface:

Multi-interface

Power Description

Input Voltage:

5 V DC

Physical Characteristics

Height:

7.8"

Width:

3.1"

Depth:

1.6"

Weight (Approximate):

5.26 oz

Miscellaneous

Package Contents:

Voyager MS9520 Bar Code Reader
MetroSelect Single-Line Configuration Guide
MS9500 Voyager Series Single-Line Hand Held Laser Scanner User's Guide

Additional Information:

Supported Interfaces:

Keyboard Wedge

Serial

OCIA

IBM 468X/469X

USB

Platform Supported:

Certifications & Standards:

Laser Class:

CDRH: Class II
EN60825-1:1994/A11:1996 Class 1

EMC:

FCC
ICES-003 Class B
EN55022 Class B

Warranty

Limited Warranty:

5 Year

Item Numbers

GTIN: 0000003425268, 0654323066153, 0778889978573, 0783555036570, 0896289001742, 0984537625830, 4913393125891

UPC: 000003425268, 654323066153, 778889978573, 783555036570, 896289001742, 984537625830

EAN: 0000003425268, 0654323066153, 0778889978573, 0783555036570, 0896289001742, 0984537625830, 4913393125891

UNSPSC: 43211701

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Metrologic MK9520-72A47 Barcode Scanner is also known as MET-MK952072A47 or MK952072A47.
