Honeywell MK3480-30A38 Barcode Scanner

Honeywell MK3580-31A38 Barcode Scanner A newer version of this item is available.
It is replaced by the Honeywell MK3580-31A38 Barcode Scanner.
Honeywell IS3480 QuantumE - Scanner, Honeywell-Metrologic, USB kit with omnidirectional and single line modes, Includes USB cable and user's manual, No power supply.
Connectivity
Corded
Form Factor
Fixed Mount
Scanner Capability
1D
Scanner Type
Laser, Omnidirectional
Ruggedness
General Purpose
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More
Discontinued See Replacement
Add to Quote

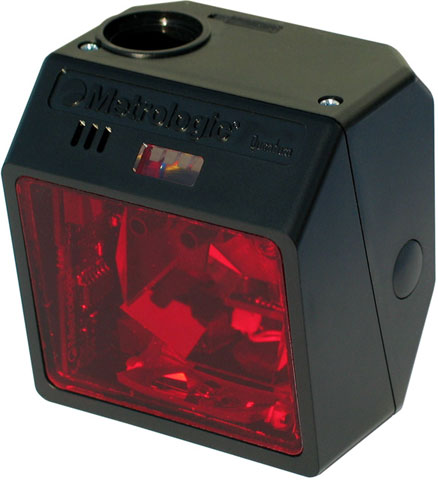

Honeywell IS3480 QuantumE Barcode Scanner Model Overview
The Honeywell IS3480 QuantumE omni-directional and single-line scanner is designed for integration with a variety of applications including interactive kiosks, price lookup systems, ATM's, reverse vending machines, controlled access, or a host of other devices. The IS3480 QuantumE's main cable connector is located at the top of the unit to facilitate mounting and the auxiliary connector gives users access to several of the I/O signals, providing the flexibility for external hookup of the beeper, button, and LEDs.
Honeywell MK3480-30A38 Barcode Scanner Overview

Quantum E IS3480 Bar Code Reader is designed for integration with a variety of applications including interactive kiosks, price lookup systems, ATMs, reverse vending machines, controlled access, or a host of other Original Equipment Manufacturer (OEM) devices. The scanner s main cable connector is located at the top of the unit to facilitate mounting and the auxiliary connector gives users access to several of the I/O signals, providing the flexibility for external hookup of the beeper, button and LEDs.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • 1D Bar Codes
  • RSS-Expanded
  • RSS-14
  • RSS-14 Limited
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 2.5" - 5"@5.2mil
  • 1" - 7.5"@7.5mil
  • 1" - 9.5"@10.4mil
  • 1" - 11.5"@13mil
  • 1" - 12"@19mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Keyboard Wedge
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
2.7"
Width:
2.5"
Depth:
2"
Weight (Approximate):
6 oz
Miscellaneous
Package Contents:
  • QuantumE IS3480 Bar Code Reader
  • IS3480 User's Guide
  • MetroSelect Configuration Guide
Additional Information:

USB Keyboard Wedge

Certifications & Standards:

Laser Class:

  • Class 1; IEC60825-1:1993/A1:1997+A2:2001 Class 1; EN60825-1:1994/A11:1996+A2:2001

EMC:

  • FCC
  • ICES-003
  • EN55022 Class A
Item Numbers
GTIN: 4016138970432, 5052217226631, 5711045988707
EAN: 4016138970432, 5052217226631, 5711045988707
UNSPSC: 43211701
