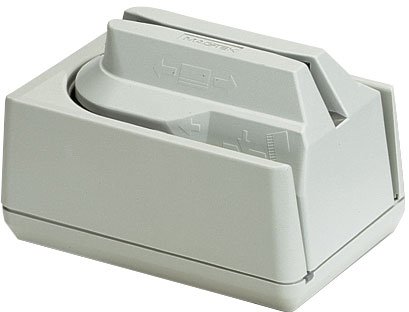

MagTek 22533012 MICR Check Scanner
The MagTek Mini-MICR Check-Stripe Reader reads checks in various formats, read magnetic stripes in various track combinations, come with either a Keyboard wedge (PS/2 or AT) or RS-232 interface, and are available in either white or gray finish.
Keyboard Emulation Software Interface: Data is sent as if it were a USB keyboard. Read data can be viewed in applications such as Windows Notepad without requiring additional drivers or application programming.
Human Interface Device (HID) Software Interface: A developed or modified application is required to communicate with this device. Data will not be seen in applications such as Windows Notepad. USB Swipe & Insert Reader Demo Program can be used to communicate with the USB SureSwipe Swipe Card Reader.
Technical Information
- MICR Font Supported:
- E13-B
- CMC-7
- Magnetic Stripe Track Configuration: Triple Track
- Magnetic Stripe Track Number:
- Track 1
- Track 2
- Track 3
- Check Feeder Capacity: 1
General Information
- Product Type: Check Reader
- Brand Name: MagTek
- Manufacturer: MagTek, Inc
- Product Name: Mini MICR Check Reader
- Product Line: Mini MICR
Physical Characteristics
- Height: 4.3"
- Width: 4"
- Color: Gray
- Length: 6"
- Weight (Approximate): 3 lb
Interfaces/Ports
- Interfaces/Ports: 1USB
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Certifications & Standards:
- ISO
- AAMVA
Power Description
- Input Voltage: 12 V AC
Full specifications (PDF)| Brand | MagTek |
| Model | Mini-MICR Check-Stripe Reader |
| Magnetic Stripe Track | 1, 2 & 3 |
| Interface | USB-Keyboard Emulation |
| Color | Gray |
| Check Scanning | No Scanning |
| Printer Endorsing | No endorsing |
| Check Feed | Single-Feed |
|
MagTek (22517583)
USB interface cable, 6 ft. for MiniMICR. Pricing is for the cable when purchased in combination with the MiniMICR unit. If you are purchasing ONLY the cable, please purchase (Part# 22517583ONLY).
|
$30.73 + Add to Quote |
|
MagTek (64300050)
12V power adapter for the MiniMICR Check Reader
|
$24.66 + Add to Quote |
|
MagTek MICRImage Check Reader Accessories (64300080)
Power Adapter (240V) for the MICRImage
|
$24.05 + Add to Quote |
|
|
MagTek (22310301)
USB interface cable, 8 ft, Gray, for the Excella
|
$30.73 + Add to Quote |
|
MagTek (22410313)
USB Cable Adapter, DB-25M to USB-A, for the MICRImage
|
$30.73 + Add to Quote |
The MagTek 22533012 is also known as Mag-Tek MAG-22533012 .
