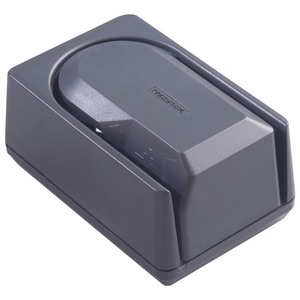

MagTek 22532005 Check Reader

Part Number: 22532005
Model: Mini
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
MICR Font Supported
E13-BCMC-7
Magnetic Stripe Track Configuration
Triple Track
Magnetic Stripe Track Number
Track 1Track 2Track 3
Check Reading Speed (in/s)
17

Product Description:

  RS-232 interface, format 0200 check reader. Includes power supply & tracks 1, 2, & 3 MSR. Order cables separately. See accessories. Color: gray.
Explore all MagTek Mini Check Readers
Add to Quote
MagTek 22532005 Check Reader
MagTek 22532005 Check Reader
MagTek 22532005 Check Reader MagTek 22532005 Check Reader
Full specifications (PDF)

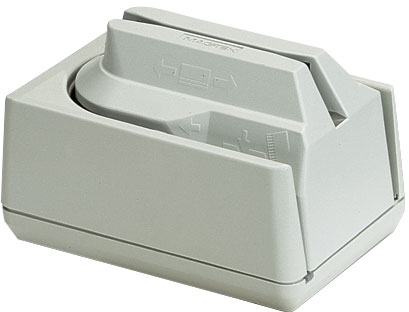

MagTek Mini Check Reader Model Overview

The MagTek Mini-MICR Check-Stripe Reader reads checks in various formats, read magnetic stripes in various track combinations, come with either a Keyboard wedge (PS/2 or AT) or RS-232 interface, and are available in either white or gray finish. Keyboard Emulation Software Interface: Data is sent as if it were a USB keyboard. Read data can be viewed in applications such as Windows Notepad without requiring additional drivers or application programming. Human Interface Device (HID) Software Interface: A developed or modified application is required to communicate with this device. Data will not be seen in applications such as Windows Notepad. USB Swipe & Insert Reader Demo Program can be used to communicate with the USB SureSwipe Swipe Card Reader.
MagTek 22532005 Check Reader Overview

Mini MICR reads real-world checks with the highest accuracy in the industry. Mini MICR's rugged and durable design will provide years of daily use. Small footprint, low cost check reader with high accuracy and dependability. Mini MICR can easily format the MICR data to match any application input requirements.

Full specifications (PDF)
Technical Information
MICR Font Supported:
  • E13-B
  • CMC-7
Magnetic Stripe Track Configuration:
Triple Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
  • Track 3
Check Reading Speed (in/s):
17
Interfaces/Ports
Serial:
Yes
Reliability
MTBF:
125000 Hour
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Product Color:
Gray
Height:
3.2"
Width:
4"
Length:
6.2"
Miscellaneous
Additional Information:

Check Read Head: 1000000 Passes

Certifications & Standards:

ANSI X9.27

Item Numbers
GTIN: 0763810008917
UPC: 763810008917
EAN: 0763810008917
UNSPSC: 44101901, 44111600
