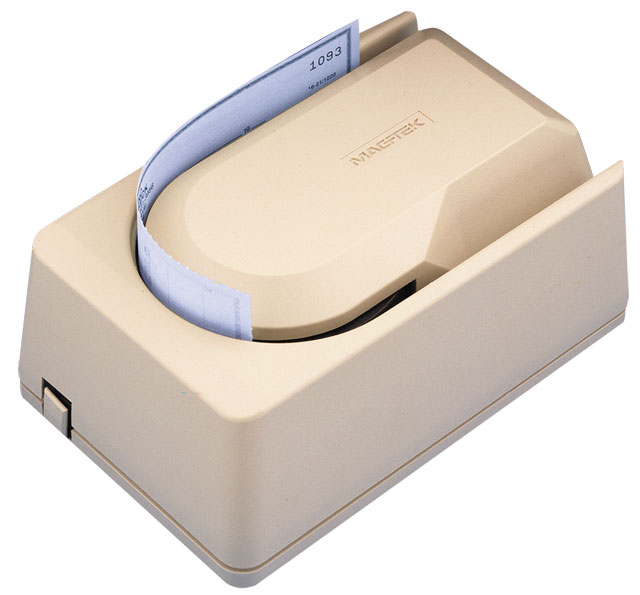

MagTek 22522001 MICR Check Reader

MagTek Mini-MICR Check Reader - RS-232 interface, format 1100 check reader. Order cables and power supply separately. See accessories. Color: white.
$247.60
In Stock:
Ships Same Day
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
Small footprint, low cost check reader with high accuracy and dependability.

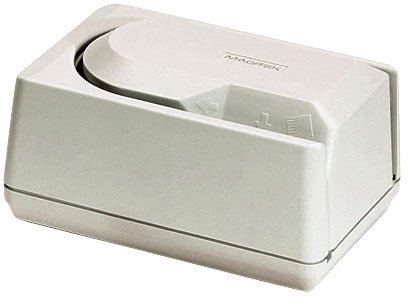

The MagTek Mini-MICR Check Reader reads checks in various formats, come with either a Keyboard wedge (PS/2 or AT) or RS-232 interface, and are available in either white or gray finish.

Technical Information

  • MICR Fonts Supported:
    • E13-B
    • CMC-7
  • Reliability: 125000 Hour(s) MTBF
  • Input Voltage: 110 V AC
  • Document Speed: 17ips
  • Interface Options: RS-232
  • MICR Font Supported:
    • E13-B
    • CMC-7
  • Check Reading Speed: 17 in/s
  • Check Feeder Capacity: 1

General Information

  • Manufacturer:
  • Product Name:
    • Mini MICR Check Reader
    • Mini MICR Card Reader
  • Product Type: Check Reader
  • Brand Name: MagTek
  • Product Line: Mini MICR

Physical Characteristics

  • Dimensions: 3.18" (81mm) x 4" (102mm) x 6.19" (157mm)
  • Color:
    • White
    • White
  • Height: 4.3"
  • Width: 4"
  • Length: 6"
  • Weight (Approximate): 3 lb

Interfaces/Ports

  • Interfaces/Ports: 1 RS-232 Serial

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 131°F (55°C) Operating
    • -22°F (-30°C) to 158°F (70°C) Storage
  • Humidity:
    • 10 to 90% Operating Non-condensing
    • 0 to 100% Storage Non-condensing

Other

  • Additional Information:
    • Check Read Head: 1000000 Passes
    • Reads MICR characters on checks, deposit, withdrawal slips and other MICR encoded documents
    • Small footprint with high accuracy and dependability

Agency Approvals

  • Agency Approvals: ANSI X9.27

Power Description

  • Input Voltage: 12 V DC

Full specifications (PDF)


Recommended Accessories for Model: MagTek Mini-MICR Check Reader Check Reader
MagTek (64300050)
12V power adapter for the MiniMICR Check Reader
In Stock: Ships Same Day
$23.40
+ Add to Quote
MagTek (22410313)
USB Cable Adapter, DB-25M to USB-A, for the MICRImage
In Stock: Ships Same Day
$42.50
+ Add to Quote
MagTek (22517507)
RS-232 cable for MiniMICR
In Stock: Ships Same Day
$36.80
+ Add to Quote
MagTek (22517582)
PC cable, USB, 6 ft, White, for the MiniMICR
In Stock: Ships Same Day
$25.00
+ Add to Quote
MagTek (64300090)
Power supply (120V) for MICRImage
In Stock: Ships Same Day
$21.90
+ Add to Quote

The MagTek 22522001 is also known as Mag-Tek MAG-MICR .
