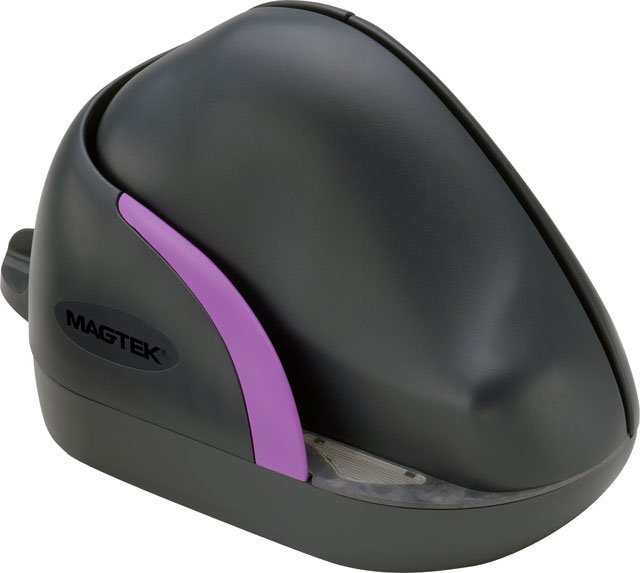

MagTek 22410006 MICR Check Reader


0.0

(No reviews)

Be the first to

Write a Review
MagTek MICRImage - RS-232 interface, 200 dpi image resolution, Include Internal Modem and No Magnetic Stripe Reader, Requires Power supply and Cable.
Highly accurate and dependable check reading and imaging

The MICRImage Check Reader is a highly accurate and dependable check reader and imager. Image checks and read MICR characters in one pass. Read and image checks, deposit, withdrawal slips and other transaction documents. Supports dual interfaces. Cover slides open for easy-access maintenance. Reads E13-B and CMC-7 MICR fonts.

Technical Information

  • MICR Fonts Supported:
    • E13-B
    • CMC-7
  • Reliability: 125000 Hour(s) MTBF
  • Input Voltage: 12 V DC
  • Document Speed: 10ips
  • Interface Options:
    • RS-232
    • Internal Modem

General Information

Physical Characteristics

  • Dimensions: 6" (152mm) x 3.9" (99mm) x 9" (229mm)
  • Weight: 2.5 lb (1.13 kg)
  • Color:
    • Gray
    • Purple

Other

  • Additional Information:
    • Check Read Head: 1,000,000 Passes
    • Document Size: 4" x 8.5" max
    • Image Capture: 200 dpi (grayscale, black & white)
    • Image Storage: 1 MB (standard) or 8 MB
    • Power & Communication Connector: DB25 female
    • Idle: 300 mA
    • Operating: 1.5 A max

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -22°F (-30°C) to 158°F (70°C) Storage
  • Humidity:
    • 10 to 90% Operating Non-condensing
    • 0 to 100% Storage Non-condensing

Agency Approvals

  • Agency Approvals: ANSI X9.27

Full specifications (PDF)
