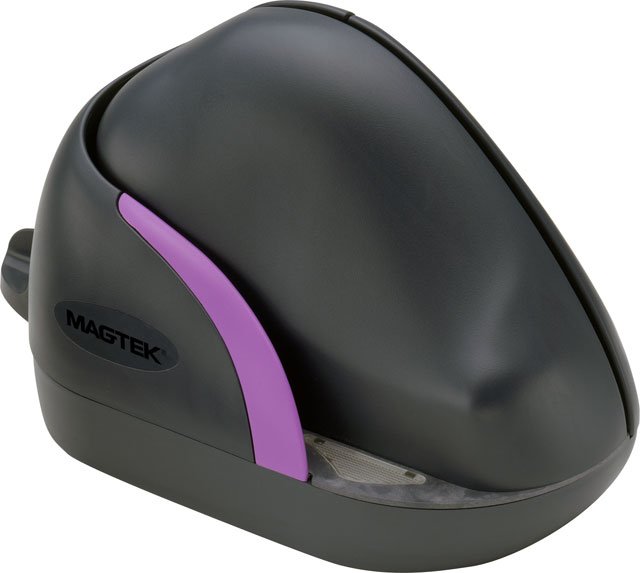

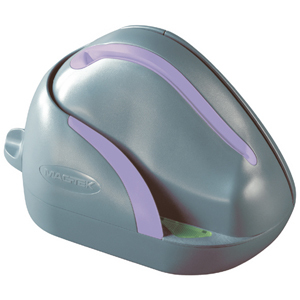

MagTek 22410005 MICR Check Reader


0.0

(No reviews)

Be the first to

Write a Review
MagTek MICRImage - RS-232 & Ethernet interface check reader. Includes 3 track integrated MSR Order cables & power supply separately. See accessories.
Highly accurate and dependable check reading and imaging

The MICRImage Check Reader is a highly accurate and dependable check reader and imager. Image checks and read MICR characters in one pass. Read and image checks, deposit, withdrawal slips and other transaction documents. Supports dual interfaces. Cover slides open for easy-access maintenance. Reads E13-B and CMC-7 MICR fonts.

Technical Information

  • MICR Font Supported:
    • E13-B
    • CMC-7
  • Magnetic Stripe Track Configuration: Triple Track
  • Magnetic Stripe Track Number:
    • Track 1
    • Track 2
    • Track 3
  • Check Reading Speed: 10 in/s
  • Features: MSR

General Information

  • Product Type: Check Reader
  • Brand Name: MagTek
  • Manufacturer: MagTek, Inc
  • Product Model: 22410005
  • Product Name: MICRImage 22410005 Check Reader with MSR
  • Product Line: MICRImage

Physical Characteristics

  • Height: 6"
  • Width: 3.9"
  • Color:
    • Dark Gray
    • Purple
  • Length: 9"
  • Weight (Approximate): 2.50 lb

Interfaces/Ports

  • Interfaces/Ports:
    • 1 RS-232 Serial
    • 1 RJ-45Network

Other

  • Certifications & Standards: ANSI X9.27
  • Additional Information:
    • Check Read Head: 1000000 Passes
    • Document Size: 4" x 8.5" max
    • Image Capture: 200 dpi (grayscale, black & white)
    • Image Storage: 1 MB (standard) or 8 MB
    • Power & Communication Connector: DB-25 female
    • Current:
    • Idle: 300 mA
    • Operating: 1.5 A max

Environmental Conditions

  • Humidity:
    • 10% to 90% Non-condensing Operating
    • 0% to 100% Non-condensing Storage
  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -22°F (-30°C) to 158°F (70°C) Storage

Reliability

  • MTBF: 125000 Hour

Power Description

  • Input Voltage: 12 V DC

Full specifications (PDF)
