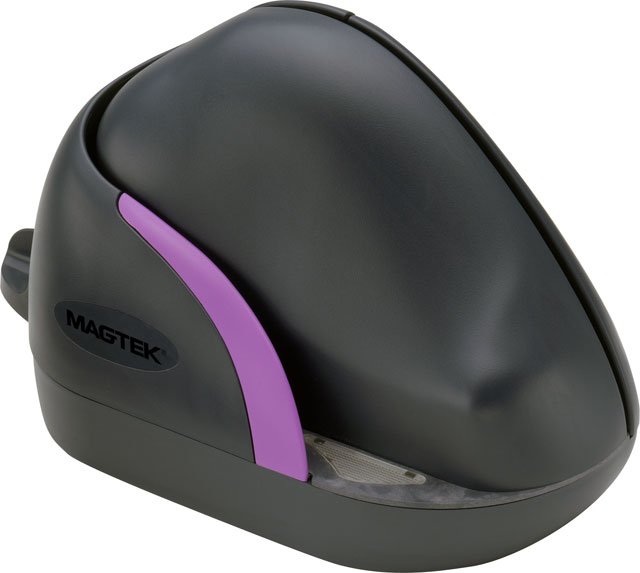

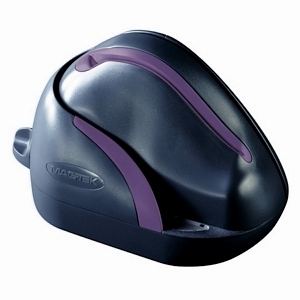

MagTek 22410003 MICR Check Reader


0.0

(No reviews)

Be the first to

Write a Review
MagTek MICRImage - RS-232 interface check reader. Includes 3 track integrated MSR Order interface cable (Part# 22410302) & power supply (Part# 64300090) separately. See accessories.
Highly accurate and dependable check reading and imaging

The MICRImage Check Reader is a highly accurate and dependable check reader and imager. Image checks and read MICR characters in one pass. Read and image checks, deposit, withdrawal slips and other transaction documents. Supports dual interfaces. Cover slides open for easy-access maintenance. Reads E13-B and CMC-7 MICR fonts.

Technical Information

  • MICR Fonts Supported:
    • E13-B
    • CMC-7
  • Magnetic Stripe Configuration: Triple Track 1, 2 & 3
  • Reliability: 125000 Hour(s) MTBF
  • Input Voltage: 12 V DC
  • Document Speed: 10ips
  • Interface Options: Dual RS-232

General Information

  • Manufacturer:
  • Product Name: MICRImage Check Reader with Triple Track MSR

Physical Characteristics

  • Dimensions: 6" (152mm) x 3.9" (99mm) x 9" (229mm)
  • Weight: 2.5 lb (1.13 kg)
  • Color:
    • Gray
    • Purple

Other

  • Additional Information:
    • Check Read Head: 1,000,000 Passes
    • Document Size: 4" x 8.5" max
    • Image Capture: 200 dpi (grayscale, black & white)
    • Image Storage: 1 MB (standard) or 8 MB
    • Power & Communication Connector: DB25 female
    • Idle: 300 mA
    • Operating: 1.5 A max

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -22°F (-30°C) to 158°F (70°C) Storage
  • Humidity:
    • 10 to 90% Operating Non-condensing
    • 0 to 100% Storage Non-condensing

Agency Approvals

  • Agency Approvals: ANSI X9.27

Full specifications (PDF)
