21088066 Credit Card Reader

Name: 21088066 Credit Card Reader
Brand: MagTek
SKU: 1707

Part Number: 21088066

Model: Stripe Reader

Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Description:

tracks 1, 2, & 3, USB (keyboard emulation) interface. Includes USB cable. Color: white.

Explore all MagTek Stripe Reader Credit Card Readers

Add to Quote

Overview

Full specifications (PDF)

MagTek Stripe Reader Credit Card Reader Model Overview

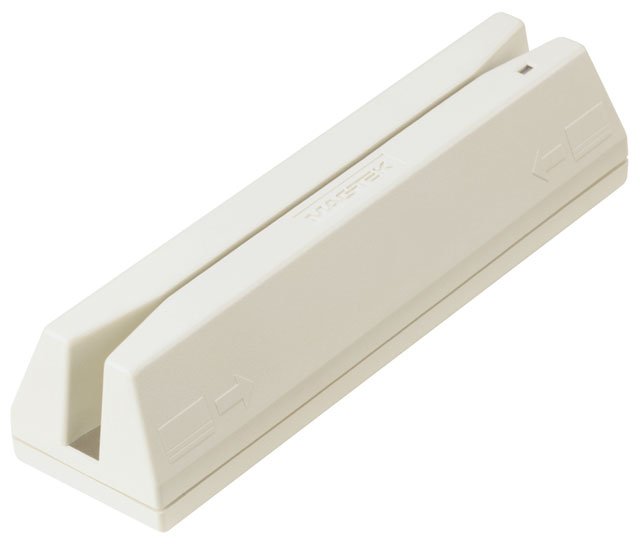

The MagTek USB Swipe Reader is a compact, reliable magnetic-stripe card reader designed for high-volume transaction and access-control environments. With plug-and-play USB connectivity (no external power required) and support for USB HID or keyboard emulation, this reader integrates smoothly into POS systems, kiosks, or desktop terminals. It handles single-track, dual-track, or full triple-track cards in both swipe directions, conforms to ISO/ANSI and AAMVA standards, and achieves up to 1,000,000 swipes for long-term durability. A red/green status LED provides visible feedback for users, and the small form factor preserves valuable space on checkout counters or desktops.

Key features:

USB-powered with HID or keyboard emulation—easy integration, no external power adapter
Reads 1-, 2- or 3-track magnetic stripes, and supports bidirectional swipe for faster throughput
Compliant with ISO/ANSI/AAMVA standards, built for high reliability and up to ~1,000 card passes
Status LED indicator (red/green) keeps operator informed of swipe success or error
Compact footprint and self-powered via USB—ideal for retail counters, and desktops

Specifications (summary):

Interface: USB (bus-powered), supports USB HID or USB keyboard emulation
Tracks read: Single, dual, or triple magnetic stripe tracks (configurable) for full flexibility
Swipe direction: Bi-directional—cards can be swiped either way for faster throughput
Durability: Up to ~1,000 swipes (with ISO-compliant cards)
Status indicator: On-device red/green LED to visually confirm read result
Compatibility: Works with any host system with USB port; supports Windows (HID/keyboard), MacOS in keyboard mode, many Linux variants
Build/Size: Compact reader, USB cable attached, lightweight for countertop or kiosk mounts
Use cases: Retail checkout, membership access, ID verification, gift card and loyalty systems
