21040154 Credit Card Reader

Name: 21040154 Credit Card Reader
Brand: MagTek
SKU: 31858

Part Number: 21040154

Model: Stripe Reader

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Description:

1-, 2-, & 3-track Magstripe Card Readers, USB HID interface

Explore all MagTek Stripe Reader Credit Card Readers

Add to Quote

Overview

Full specifications (PDF)

MagTek Stripe Reader Credit Card Reader Model Overview

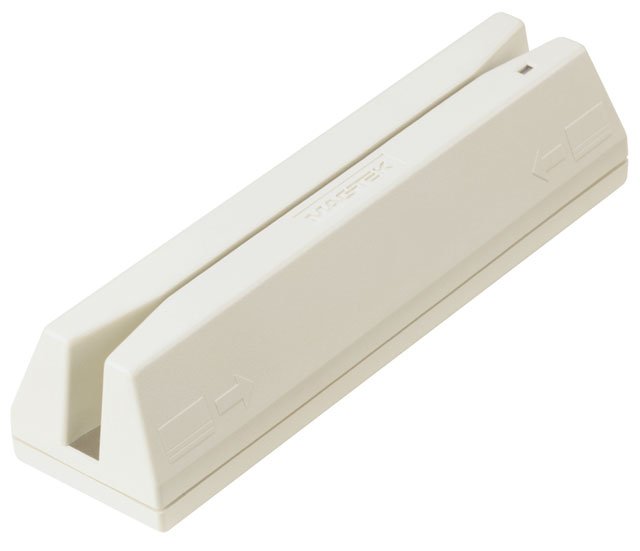

The MagTek USB Swipe Reader is a compact, reliable magnetic-stripe card reader designed for high-volume transaction and access-control environments. With plug-and-play USB connectivity (no external power required) and support for USB HID or keyboard emulation, this reader integrates smoothly into POS systems, kiosks, or desktop terminals. It handles single-track, dual-track, or full triple-track cards in both swipe directions, conforms to ISO/ANSI and AAMVA standards, and achieves up to 1,000,000 swipes for long-term durability. A red/green status LED provides visible feedback for users, and the small form factor preserves valuable space on checkout counters or desktops.

Key features:

USB-powered with HID or keyboard emulation—easy integration, no external power adapter
Reads 1-, 2- or 3-track magnetic stripes, and supports bidirectional swipe for faster throughput
Compliant with ISO/ANSI/AAMVA standards, built for high reliability and up to ~1,000 card passes
Status LED indicator (red/green) keeps operator informed of swipe success or error
Compact footprint and self-powered via USB—ideal for retail counters, and desktops

Specifications (summary):

Interface: USB (bus-powered), supports USB HID or USB keyboard emulation
Tracks read: Single, dual, or triple magnetic stripe tracks (configurable) for full flexibility
Swipe direction: Bi-directional—cards can be swiped either way for faster throughput
Durability: Up to ~1,000 swipes (with ISO-compliant cards)
Status indicator: On-device red/green LED to visually confirm read result
Compatibility: Works with any host system with USB port; supports Windows (HID/keyboard), MacOS in keyboard mode, many Linux variants
Build/Size: Compact reader, USB cable attached, lightweight for countertop or kiosk mounts
Use cases: Retail checkout, membership access, ID verification, gift card and loyalty systems
