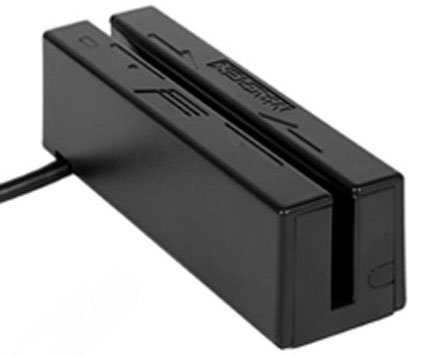

MagTek 21040110 Credit Card Reader
The MagTek MiniUSB Stripe Reader works with existing software application developed for keyboard interface. Powered by USB bus-no external power supply required. Hardware compatible with any computer or terminal with an USB interface. Dual and three track capability.
Keyboard Emulation Software Interface: Data is sent as if it were a USB keyboard. Read data can be viewed in applications such as Windows Notepad without requiring additional drivers or application programming.
Human Interface Device (HID) Software Interface: A developed or modified application is required to communicate with this device. Data will not be seen in applications such as Windows Notepad. USB Swipe & Insert Reader Demo Program can be used to communicate with the USB SureSwipe Swipe Card Reader.
Technical Information
- Magnetic Stripe Track Configuration: Dual Track
- Minimum Swipe Speed: 3 in/s
- Maximum Swipe Speed: 50 in/s
- Magnetic Stripe Track Number:
- Track 1
- Track 2
- Magnetic Head Life: 1000000 Swipe
General Information
- Product Type: Magnetic Stripe Reader
- Brand Name: MagTek
- Manufacturer: MagTek, Inc
- Product Name: Magnetic Stripe Swipe Card Reader
Physical Characteristics
- Height: 1.2"
- Width: 1.3"
- Color: Black
- Length: 3.9"
- Weight (Approximate): 5.80 oz
Interfaces/Ports
- Interfaces/Ports:
- USB 2.0 USB
- Keyboard Wedge
Other
- Package Contents:
- Magnetic Stripe Swipe Card Reader
- Interface Cable
- Magnetic Stripe Swipe Card Reader
- Interface Cable
- Certifications & Standards:
- ISO
- ANSI
- CDL
- AAMVA
Environmental Conditions
- Humidity:
- 10% to 90% Non-condensing Operating
- 0% to 100% Non-condensing Storage
- Temperature:
- 32°F (0°C) to 131°F (55°C) Operating
- -22°F (-30°C) to 158°F (70°C) Storage
Reliability
- MTBF: 125000 Hour
Full specifications (PDF)| Brand | MagTek |
| Model | MiniUSB Stripe Reader |
The MagTek 21040110 is also known as Mag-Tek MAG-21040110 .
