21040109 Credit Card Reader

The 21040109 Credit Card Reader has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

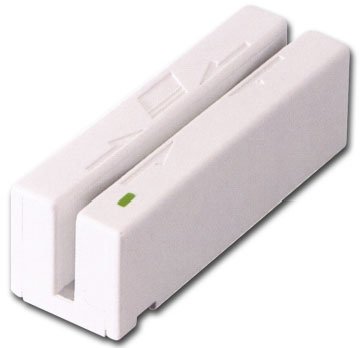

MagTek MiniUSB - USB, Keyboard Emulation, Reads tracks 1 & 2. Includes USB cable. Color: White
MagTek MiniUSB Credit Card Reader Model Overview
The MagTek MiniUSB Stripe Reader works with existing software application developed for keyboard interface. Powered by USB bus-no external power supply required. Hardware compatible with any computer or terminal with an USB interface. Dual and three track capability. Keyboard Emulation Software Interface: Data is sent as if it were a USB keyboard. Read data can be viewed in applications such as Windows Notepad without requiring additional drivers or application programming. Human Interface Device (HID) Software Interface: A developed or modified application is required to communicate with this device. Data will not be seen in applications such as Windows Notepad. USB Swipe & Insert Reader Demo Program can be used to communicate with the USB SureSwipe Swipe Card Reader.
21040109 Credit Card Reader Overview

Dual color LED. Bi-directional read capability. Up to 1,000,000 passes with ISO-conforming cards. Reads encoded cards that meet ISO, ANSI, CDL, and AAMVA standards.

Technical Information
Magnetic Stripe Track Configuration:
Dual Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
50 in/s
Magnetic Head Life:
1000 Swipe
Magnetic Stripe Format:
AAMVA
Interfaces/Ports
Keyboard Wedge:
Yes
USB:
Yes
Reliability
MTBF:
125000 Hour
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Color:
White
Height:
1.2"
Width:
1.3"
Depth:
3.9"
Length:
3.9"
Miscellaneous
Package Contents:
  • Magnetic Stripe Swipe Card Reader
  • 6FT Cable
Additional Information:
  • ISO
  • AAMVA
Item Numbers
GTIN: 0783555030325, 4943783187369
UPC: 783555030325
EAN: 0783555030325, 4943783187369
UNSPSC: 43211702
Questions? Get help from
a POS Expert!

What is your POS application?

The 21040109 Credit Card Reader is also known as MAG-21040109 or 21040109.
