Full specifications (PDF)
Magnetic Stripe Track Configuration:
Single Track
Magnetic Stripe Track Number:
Track 2
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
50 in/s
Magnetic Head Life:
1000 Swipe
Bi-directional Reading:
Yes

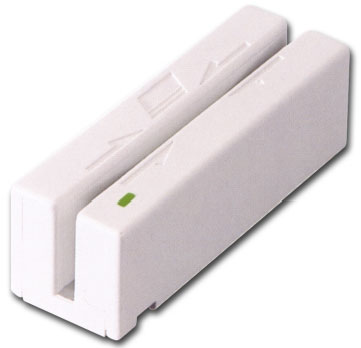

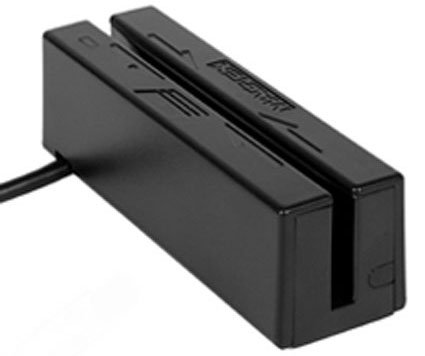

MagTek MiniUSB Credit Card Reader Model Overview
The MagTek MiniUSB Stripe Reader works with existing software application developed for keyboard interface. Powered by USB bus-no external power supply required. Hardware compatible with any computer or terminal with an USB interface. Dual and three track capability. Keyboard Emulation Software Interface: Data is sent as if it were a USB keyboard. Read data can be viewed in applications such as Windows Notepad without requiring additional drivers or application programming. Human Interface Device (HID) Software Interface: A developed or modified application is required to communicate with this device. Data will not be seen in applications such as Windows Notepad. USB Swipe & Insert Reader Demo Program can be used to communicate with the USB SureSwipe Swipe Card Reader.
Technical Information
Interfaces/Ports
USB:
Yes
Reliability
MTBF:
125000 Hour
Physical Characteristics
Color:
Black
Miscellaneous
Package Contents:
- Mini USB Swipe Magnetic Stripe Reader
- 6' Cable
Additional Information:
- Bi-directional read capability
- Dual color LED
Certifications & Standards:
ISO ANSI CDL AAMVA
Item Numbers
GTIN:
4260257429924
EAN:
4260257429924
UNSPSC:
43211702
Questions? Get help from
a POS Expert!
a POS Expert!
The MagTek 21040106 Credit Card Reader is also known as
MAG-21040106
or 21040106.
