MagTek 21040105 Credit Card Reader

The MagTek 21040105 Credit Card Reader has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
MagTek MiniUSB - USB, HID (Requires HID driver), Reads track 2 only. Includes USB cable. Color: White
Discontinued Need Assistance?
Add to Quote

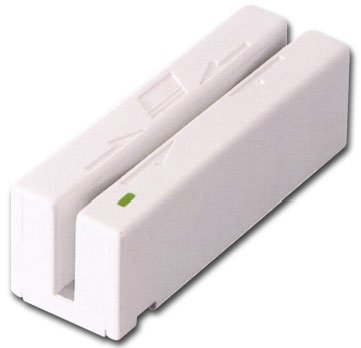

MagTek MiniUSB Credit Card Reader Model Overview
The MagTek MiniUSB Stripe Reader works with existing software application developed for keyboard interface. Powered by USB bus-no external power supply required. Hardware compatible with any computer or terminal with an USB interface. Dual and three track capability. Keyboard Emulation Software Interface: Data is sent as if it were a USB keyboard. Read data can be viewed in applications such as Windows Notepad without requiring additional drivers or application programming. Human Interface Device (HID) Software Interface: A developed or modified application is required to communicate with this device. Data will not be seen in applications such as Windows Notepad. USB Swipe & Insert Reader Demo Program can be used to communicate with the USB SureSwipe Swipe Card Reader.
Technical Information
Magnetic Stripe Track Configuration:
Single Track
Magnetic Stripe Track Number:
Track 2
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
50 in/s
Magnetic Head Life:
1000000 Swipe
Interfaces/Ports
USB:
Yes
Reliability
MTBF:
125000 Hour
Physical Characteristics
Color:
White
Height:
1.2"
Width:
1.3"
Length:
3.9"
Weight (Approximate):
5.80 oz
Miscellaneous
Package Contents:
  • Magnetic Stripe Reader
  • USB interface cable
Certifications & Standards:
  • ISO
  • ANSI
  • CDL
  • AAMVA
Item Numbers
UNSPSC: 43211702
Questions? Get help from
a POS Expert!

What is your POS application?

The MagTek 21040105 Credit Card Reader is also known as 21040105
