MagTek 21040103 Credit Card Reader


0.0

(No reviews)

Be the first to

Write a Review

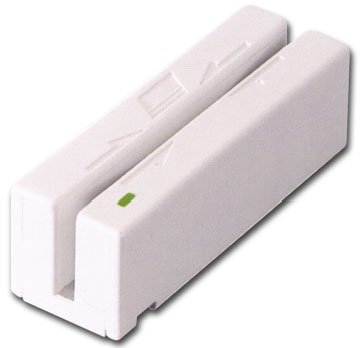

MagTek MiniUSB Stripe Reader - USB, HID (Requires HID driver), Reads tracks 1 & 2. Includes USB cable. Color: White
$64.60
In Stock:
Ships Same Day
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
Powered by USB bus-no external power supply required.

The MagTek MiniUSB Stripe Reader works with existing software application developed for keyboard interface. Powered by USB bus-no external power supply required. Hardware compatible with any computer or terminal with an USB interface. Dual and three track capability.

Keyboard Emulation Software Interface: Data is sent as if it were a USB keyboard. Read data can be viewed in applications such as Windows Notepad without requiring additional drivers or application programming.

Human Interface Device (HID) Software Interface: A developed or modified application is required to communicate with this device. Data will not be seen in applications such as Windows Notepad. USB Swipe & Insert Reader Demo Program can be used to communicate with the USB SureSwipe Swipe Card Reader.

Technical Information

  • Magnetic Stripe Type: Card
  • Magnetic Stripe Configuration: Dual Track 1 & 2
  • Swipe Speed: 3 to 50 in/sec
  • Magnetic Head Life: 1000 K
  • Interfaces/Ports: USB
  • Reliability: 125000 Hour(s) MTBF

General Information

Physical Characteristics

  • Dimensions: 1.23" (31.24mm) x 1.28" (32.51mm) x 3.94" (100.08mm)
  • Color: White

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 55°C (131°F) Operating
    • -30°C (-22°F) to 70°C (158°F) Storage
  • Humidity:
    • 10 to 90% Operating Non-condensing
    • 0 to 100% Storage Non-condensing

Agency Approvals

  • Agency Approvals:
    • ISO
    • CDL
    • ANSI
    • AAMVA

Other

  • Package Contents:
    • Magnetic Stripe Swipe Card Reader
    • 6' Cable

Full specifications (PDF)



Customer Review Summary

Recommended Accessories for Model: MagTek MiniUSB Stripe Reader Card Reader
Protect Your Product

The MagTek 21040103 is also known as Mag-Tek MAG-21040103 .
