Full specifications (PDF)
Number of Read Heads:
1
Magnetic Stripe Track Configuration:
Triple Track
Magnetic Stripe Track Number:
- Track 1
- Track 2
- Track 3
Bi-directional Reading:
Yes
MagTek Stripe Reader Credit Card Reader Model Overview
The MagTek Stripe Reader reads information from tracks 1, 2, and/or 3, come with either a Keyboard wedge (PS/2 or AT) or RS-232 interface, and most models are available in either black or white finish. Keyboard Emulation Software Interface: Data is sent as if it were a USB keyboard. Read data can be viewed in applications such as Windows Notepad without requiring additional drivers or application programming. Human Interface Device (HID) Software Interface: A developed or modified application is required to communicate with this device. Data will not be seen in applications such as Windows Notepad. USB Swipe & Insert Reader Demo Program can be used to communicate with the USB SureSwipe Swipe Card Reader.

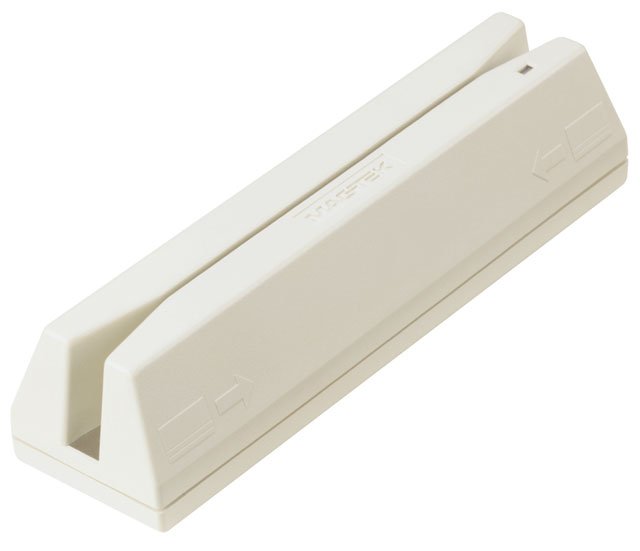

MagTek 21040074 Credit Card Reader Overview
The Mini Swipe Reader is port powered devices that require no external power source. They can be configured in the field to provide various communication protocols and track formats. The default communication settings are 9600 bps 8N1.
Technical Information
Interfaces/Ports
Serial:
Yes
Physical Characteristics
Product Color:
White
Height:
1.2"
Width:
1.3"
Length:
3.9"
Weight (Approximate):
5.90 oz
Miscellaneous
Additional Information:
- Dual color LED
- Bi-directional read capability
Certifications & Standards:
- ISO
- AAMVA
Environmentally Friendly:
Yes
Item Numbers
GTIN:
0000054594517
UPC:
000054594517
EAN:
0000054594517
UNSPSC:
43211702
Questions? Get help from
a POS Expert!
a POS Expert!
The MagTek 21040074 Credit Card Reader is also known as
MAG-21040074
or 21040074.
