Barcodes,Inc.

MagTek 21040071 Credit Card Reader


0.0

(No reviews)

Be the first to

Write a Review

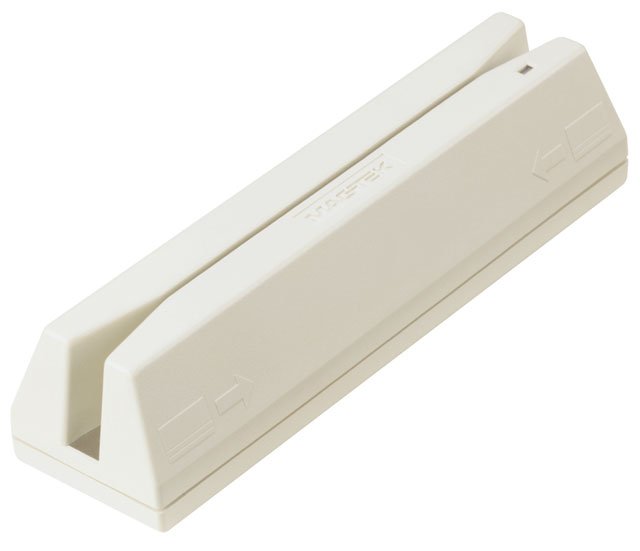

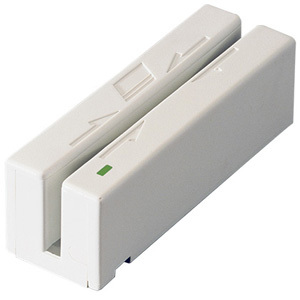

MagTek Stripe Reader - Mini Port Powered RS-232 Swipe Reader (Tracks 1 and 2) - Color: White
$85.00
Ships in 3-5 Days
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
Can be attached to any PC keyboard or flat surface.

The MagTek Stripe Reader reads information from tracks 1, 2, and/or 3, come with either a Keyboard wedge (PS/2 or AT) or RS-232 interface, and most models are available in either black or white finish.

Keyboard Emulation Software Interface: Data is sent as if it were a USB keyboard. Read data can be viewed in applications such as Windows Notepad without requiring additional drivers or application programming.

Human Interface Device (HID) Software Interface: A developed or modified application is required to communicate with this device. Data will not be seen in applications such as Windows Notepad. USB Swipe & Insert Reader Demo Program can be used to communicate with the USB SureSwipe Swipe Card Reader.

General Information

  • Manufacturer:
  • Product Line: MSR
  • Product Name:
    • Magnetic Stripe Swipe Card Reader
    • Mini Swipe Reader
  • Product Type: Magnetic Stripe Reader
  • Brand Name: MagTek

Technical Information

  • Magnetic Stripe Type: Card
  • Magnetic Stripe Configuration: Dual Track 1 & 2
  • Interfaces/Ports: RS-232
  • Magnetic Stripe Track Configuration: Dual Track
  • Magnetic Stripe Track Number:
    • Track 1
    • Track 2

Physical Characteristics

  • Dimensions: 1.23" (31.24mm) x 1.28" (32.51mm) x 3.94" (100.08mm)
  • Weight: 5.9 oz
  • Color:
    • White
    • White
  • Height: 1.2"
  • Width: 1.3"
  • Length: 3.9"
  • Weight (Approximate): 5.90 oz

Interfaces/Ports

  • Interfaces/Ports: RS-232 Serial

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 55°C (131°F) Operating
    • -30°C (-22°F) to 70°C (158°F) Storage
    • 32°F (0°C) to 131°F (55°C) Operating
    • -22°F (-30°C) to 158°F (70°C) Storage
  • Humidity:
    • 10 to 90% Operating Non-condensing
    • 0 to 100% Storage Non-condensing
    • 10% to 90% Non-condensing Operating
    • 0% to 100% Non-condensing Storage

Other

  • Package Contents:
    • Magnetic Stripe Swipe Card Reader
    • 6FT DB9 Cable
  • Additional Information:
    • 6FT DB9 Cable
    • Cable Length: 6 ft
    • Dual color LED

Full specifications (PDF)
