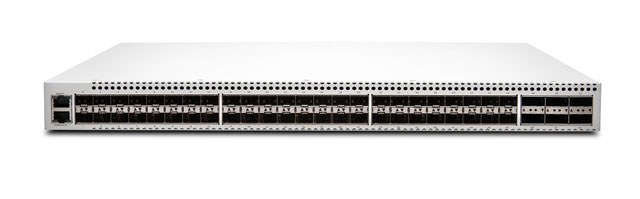

Juniper Networks OCX1100 Ethernet Switch

Juniper Networks OCX1100  -  The Juniper Networks OCX1100 open networking switch is designed for large Cloud Builders looking to capitalize on innovations derived from real-world, massive scale, data center customer environments and backed by the industry recognized Open Compute Project (OCP) Foundation. Juniper Networks OCX1100 is a switch based on hardware specifications ratified by the OCP. Combining a cloud-optimized OCP-submitted hardware design with the industry-proven and feature-rich Juniper Networks Junos operating system, the OCX1100 gives customers all of the benefits of an open source hardware design with none of the compromises.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Starting at:
$32,000.00
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

Juniper Networks OCX1100 Ethernet Switch
Juniper Networks OCX1100 Ethernet Switch

Juniper Networks OCX1100 Ethernet Switch Options

Full specifications (PDF)

Juniper Networks OCX1100 Ethernet Switch Model Overview

Large-scale cloud-based data centers demand advanced networking capabilities that outshine traditional IT infrastructures. The Juniper Networks OCX1100 Open Networking Switch merges a robust, carrier-class software experience with a cost-effective, open-source hardware platform. Designed for Cloud Builders, it delivers high performance, reliability, and flexible deployment options while adhering to the Open Compute Project (OCP) standards. With an outstanding throughput of 1.44 Tbps and a scalable architecture, the OCX1100 stands as a cornerstone for future-ready data center operations.

Key Features
  • 48 SFP+/QSFP+ Ports: Supports high-density server connectivity for enhanced performance.
  • 1.44 Tbps Throughput: Optimized for large-scale IP Fabric deployments.
  • Carrier-Class Software: Powered by the Junos operating system for unmatched reliability.
  • Open Architecture: Based on OCP standards, fostering community-driven innovation.
  • Consistent Management: Simplifies network operations for users of existing Juniper products.


Specifications
  • Dimensions: 17.3 x 1.72 x 19.2 in (44.0 x 4.4 x 48.7 cm); 1U
  • Weight: 9.07 kg (with 2 AC PSUs & 4 fans)
  • Power Options: 100 to 240 V AC or -40.5 to -60 V DC
  • Cooling: Four hot-swappable fan modules
  • Operating Temp: 0° to 40°C
  • Port Densities: 48 x 10GbE SFP+/6 x 40GbE QSFP+
  • Throughput: 1.44 Tbps, 1.08 Bpps switching capacity
  • Operating System: Junos OS
  • Warranty: One year standard warranty
