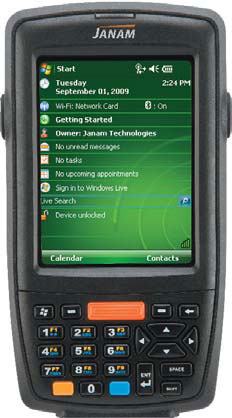

Janam XM66W-1NGFBR00 Mobile Computer

A newer version of this item is available.
It is replaced by the Janam XM66W-1NAFBV00 Mobile Computer.

Janam XM66 - Janam XM66 Handheld Terminal - Freescale 533 MHz - 128 MB RAM - 128 MB Flash - 3.5" - Wireless LAN - Bluetooth

Store your additional data in the supported microSD memory card
3.5" QVGA display screen allows you to execute two applications at the same time
Touch panel gives your workforce ease, along with familiar and flexible operation, thus improving overall efficiency on a daily basis
The secure wireless connectivity allows your employees to stay productive while away from their desks
Windows Mobile 6.1 offers familiar interface and control of web-based applications for greater ease of use and worker satisfaction

Need a different version? See all Janam XM66 Mobile Computers

Discontinued See Replacement

Add to Quote

Overview

Full specifications (PDF)

Janam XM66 Mobile Computer Model Overview

Ease of use, durability and flexibility are critical to mobile workers. The Janam XM66 delivers it all with Windows Mobile 6.1, advanced barcode scanning, robust WLAN communication and long battery life. It features the latest, most powerful Freescale processor and double data rate (DDR) memory, making it faster than other devices in its class. And Janam's XM Series devices are the only products in the rugged mobile computing category that weigh less than 10 ounces and have a full 3.5" display.

Janam XM66W-1NGFBR00 Mobile Computer Overview

Ease of use, durability and flexibility are critical to mobile workers. Janam's XM66 delivers it all with Windows Mobile 6, advanced barcode scanning, robust WLAN communication and long battery life. It features the latest, most powerful Freescale processor and double data rate (DDR) memory, making it faster than other devices in its class. And Janam's XM Series devices are the only products in the rugged mobile computing category that weigh less than 10 ounces and have a full 3.5" display.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Image Sensor Type:

Imager

Barcode Symbology Supported:

1D:

China Post
Codabar
Codablock F
Code 11
Code 16K
Code 32 Pharmaceutical (PARAF)
Code 39
Code 49
Code 93 and 93i
Code 128
EAN-8
EAN-13
GS1-128
GS1 Databar (RSS-144, RSS Limited, RSS Expanded)
Interleaved 2 of 5
ISBT 128
Matrix 2 of 5
Korea Post
MSI
Plessey Code
PosiCode
Straight 2 of 5 IATA (two-bar start/stop)
Straight 2 of 5
Industrial (three-bar start/stop)
Telepen
Trioptic Code
UPC-A
UPC-A with Extended Coupon Code
UPC-E
UPC-E1

2D:

PDF417 (EAN-UCC Composite, MicroPDF417, PDF417, TCIF Linked Code 39, TLC39)
4-CB (4-State Customer Barcode)
Australian Post
Aztec Code
Aztec Mesas
British Post
Canadian Post
GS1 Data Matrix
Han Xin
ID-tag (UPU 4-State)
Japanese Post
KIX (Netherlands) Post
MaxiCode
OCR
Planet Code
Postnet
QR Code

Electrostatic Discharge (ESD):

+/-15 kV DC Air Discharge
+/-8 kV DC Contact Discharge

Drop Specification:

48" To Concrete

Processor & Chipset

Processor Manufacturer:

Freescale

Processor Speed:

533 MHz

Memory

Standard Memory:

128 MB

Flash Memory:

128 MB

Memory Card Slot:

Yes

Memory Card Supported:

microSD

Display & Graphics

Screen Size:

3.5"

Screen Mode:

QVGA

Screen Resolution:

240 x 320

Display Color:

Color

Touchscreen Information

Touchscreen:

Yes

Network & Communication

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11b/g

Bluetooth:

Yes

Wireless Security:

EAP (TLS, PEAP-MSCHAPv2, PEAP-GTC, PEAP-TLS, TTLS, EAP-FAST, LEAP)
PSK
WPA2 (AES-CCMP)
WPA (TKIP)
WEP - 40 bit and 128-bit keys

Software

Operating System:

Windows Mobile 6.1

Battery Information

Battery Capacity:

2000 mAh

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Physical Characteristics

Height:

1.2"

Width:

3.1"

Length:

5.8"

Weight (Approximate):

9.84 oz

Item Numbers

UNSPSC: 43211715

Reviews

Q&A

Accessories

Service Contracts

Questions? Get Help from
a Mobile Expert!

The Janam XM66W-1NGFBR00 Mobile Computer is also known as JAN-XM66W1NGFBR00 or XM66W1NGFBR00.
