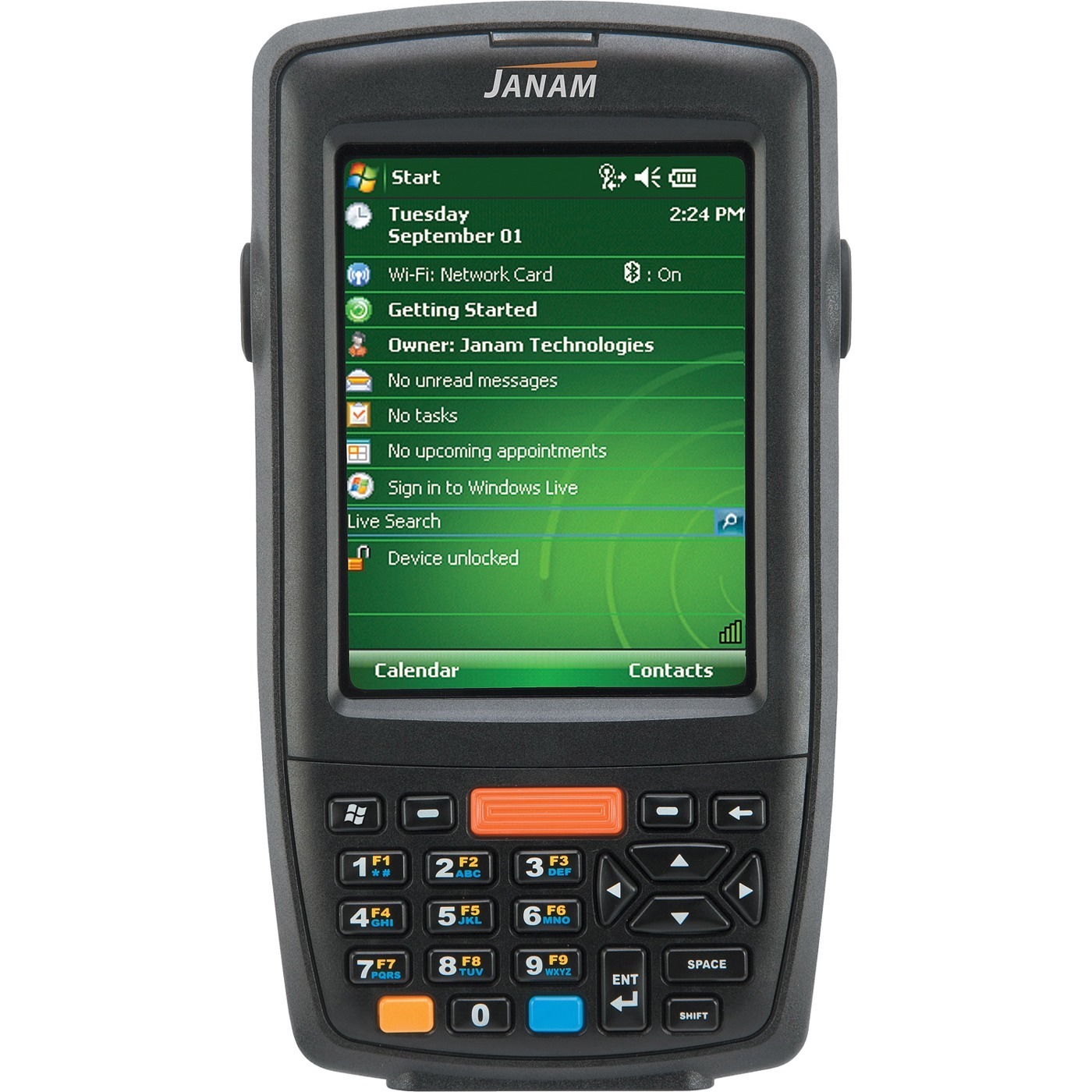

Janam XM66W-1NAFBV00 Mobile Handheld Computer

Janam XM66 - Handheld Terminal - Freescale i.MX31 533 MHz - 256 MB RAM - 256 MB Flash - 3.5" QVGA LCD - Numeric Keyboard - Wireless LAN - Bluetooth
  • Wireless connectivity option lets you transmit data instantly from your handheld terminal to your network while keeping you up to date
  • 256 MB RAM / 256 MB flash memory helps run applications rapidly and stores the mightiest databases
  • microSD card slot gives an extra storage option
  • 3.5" LCD screen is ideal for scan intensive applications
  • Touchscreen adds an additional hour of efficiency per worker to the workday
  • Features numeric keypad to meet different client and application needs
  • The secure wireless connectivity allows your employees to stay productive while away from their desks
  • Experience the versatility of Bluetooth connectivity with your Janam Handheld Terminal
  • Windows Mobile 6.1 offers familiar interface and control of web-based applications for greater ease of use and worker satisfaction
Read More

Full specifications (PDF)

Hi-Speed USB 2.0 and serial output
Ease of use, durability and flexibility are critical to mobile workers. The Janam XM66 delivers it all with Windows Mobile 6.1, advanced barcode scanning, robust WLAN communication and long battery life. It features the latest, most powerful Freescale processor and double data rate (DDR) memory, making it faster than other devices in its class. And Janam's XM Series devices are the only products in the rugged mobile computing category that weigh less than 10 ounces and have a full 3.5" display.
Janam XM66W-1NAFBV00 Overview

Ease of use, durability and flexibility are critical to mobile workers. Janam's XM66 delivers it all with Windows Mobile 6, advanced barcode scanning, robust WLAN communication and long battery life. It features the latest, most powerful Freescale processor and double data rate (DDR) memory, making it faster than other devices in its class. And Janam's XM Series devices are the only products in the rugged mobile computing category that weigh less than 10 ounces and have a full 3.5" display.

Full specifications (PDF)

Technical Information
Connectivity Technology:
Wireless
Image Sensor Type:
Imager
Barcode Symbology Supported:

1D:

  • China Post
  • Codabar
  • Codablock F
  • Code 11
  • Code 16K
  • Code 32 Pharmaceutical (PARAF)
  • Code 39
  • Code 49
  • Code 93 and 93i
  • Code 128
  • EAN-8
  • EAN-13
  • GS1-128
  • GS1 Databar (RSS-144, RSS Limited, RSS Expanded)
  • Interleaved 2 of 5
  • ISBT 128
  • Matrix 2 of 5
  • Korea Post
  • MSI
  • Plessey Code
  • PosiCode
  • Straight 2 of 5 IATA (Two-Bar Start / Stop)
  • Straight 2 of 5 Industrial (Three-Bar Start / Stop)
  • Telepen
  • Trioptic Code
  • UPC-A
  • UPC-A with Extended Coupon Code
  • UPC-E
  • UPC-E1
Electrostatic Discharge (ESD):
  • +/-15 kV DC Air Discharge
  • +/-8 kV DC Contact Discharge
Drop Specification:
48" To Concrete
Processor & Chipset
Processor Manufacturer:
Freescale
Processor Type:
i.MX31
Processor Speed:
533 MHz
Memory
Standard Memory:
256 MB
Flash Memory:
256 MB
Memory Card Slot:
Yes
Memory Card Supported:
microSD
Display & Graphics
Screen Size:
3.5"
Screen Mode:
QVGA
Screen Resolution:
240 x 320
Display Color:
Color
Display Screen Type:
LCD
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Keyboard Type:
Numeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g
Bluetooth:
Yes
Wireless Security:

Authentication:

  • EAP (TLS, PEAP-MSCHAPv2, PEAP-GTC, PEAP-TLS, TTLS, EAP-FAST, LEAP)
  • PSK

Encryption:

  • WPA2 (AES-CCMP)
  • WPA (TKIP)
  • WEP (40 Bit and 128-Bit Keys)
Software
Operating System:
Windows Mobile 6.1
Battery Information
Battery Capacity:
2400 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Height:
1.2"
Width:
3.1"
Depth:
5.8"
Weight (Approximate):
9.84 oz
Item Numbers
UNSPSC: 43211715
