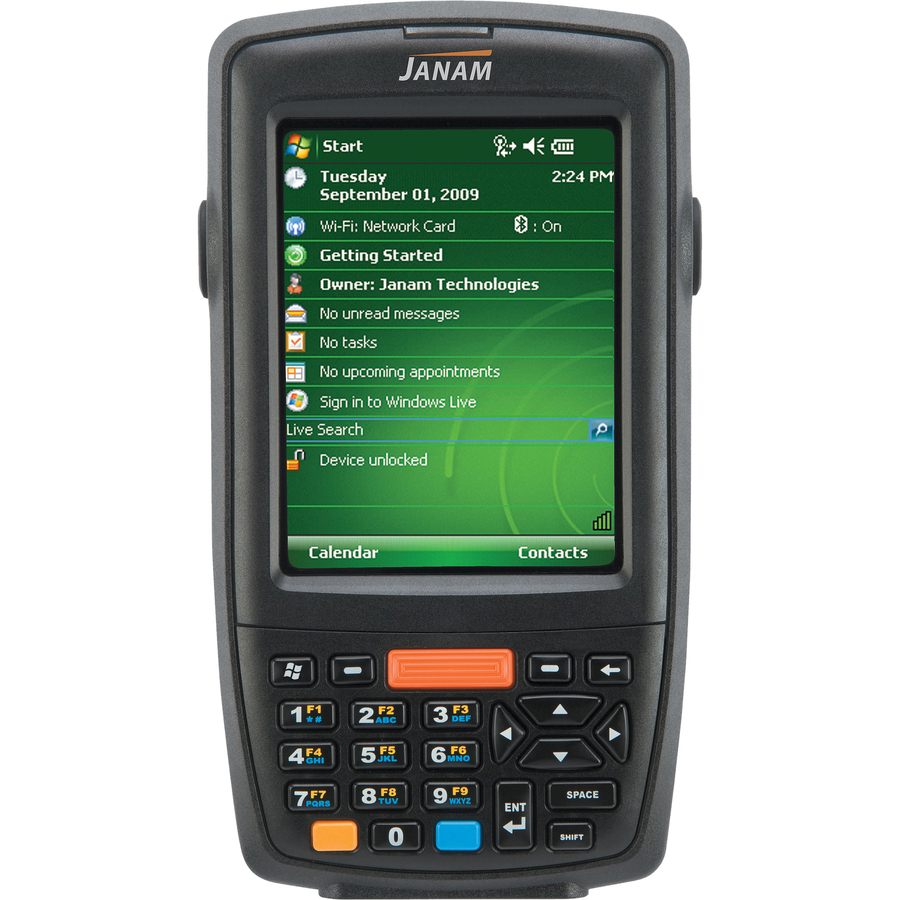

Janam XM60+ – Mobile Computer

Part Number: XM60W-1NGCBR00
Model: XM60+
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Image Sensor Type
Imager
Barcode Symbology Supported
1D:China PostCodabarCodablock FCode 11Code 16KCode 32 Pharmaceutical (PARAF)Code 39Code 49Code 93 and 93iCode 128EAN-8EAN-13GS1-128GS1 Databar (RSS-144, RSS Limited, RSS Expanded)Interleaved 2 of 5ISBT 128Matrix 2 of 5Korea PostMSIPlessey CodePosiCodeStraight 2 of 5 IATA (two-bar start/stop)Straight 2 of 5Industrial (three-bar start/stop)TelepenTrioptic CodeUPC-AUPC-A with Extended Coupon CodeUPC-EUPC-E12D:PDF417 (EAN-UCC Composite, MicroPDF417, PDF417, TCIF Linked Code 39, TLC39)4-CB (4-State Customer Barcode)Australian PostAztec CodeAztec MesasBritish PostCanadian PostGS1 Data MatrixHan XinID-tag (UPU 4-State)Japanese PostKIX (Netherlands) PostMaxiCodeOCRPlanet CodePostnetQR Code
Electrostatic Discharge (ESD)
+/-15 kV DC Air Discharge+/-8 kV DC Contact Discharge

Product Description:

  Janam XM60+ Handheld Terminal - Freescale 533 MHz - 128 MB RAM - 128 MB Flash - 3.5" - Wireless LAN - Bluetooth
Explore all Janam XM60+ Mobile Computers
Add to Quote
Janam XM60W-1NGCBR00 Mobile Computer
Janam XM60W-1NGCBR00 Mobile Computer
Janam XM60W-1NGCBR00 Mobile Computer
Janam XM60W-1NGCBR00 Mobile Computer Janam XM60W-1NGCBR00 Mobile Computer Janam XM60W-1NGCBR00 Mobile Computer
Full specifications (PDF)

Janam XM60+ Mobile Computer Model Overview

The Janam XM60+ is feature-rich and affordable. This rugged Windows CE mobile computer delivers advanced barcode scanning, robust WLAN communication and long battery life. It features the latest, most powerful Freescale processor and double data rate (DDR) memory, making it faster than other devices in its class. And Janam's XM Series devices are the only products in the rugged mobile computing category that weigh less than 10 ounces and have a full 3.5" display.
Janam XM60W-1NGCBR00 Mobile Computer Overview

The XM60+ is feature-rich and affordable. This rugged Windows CE mobile computer, delivers advanced barcode scanning, robust WLAN communication and long battery life. It features the latest, most powerful Freescale processor and double data rate (DDR) memory, making it faster than other devices in its class. And Janam's XM Series devices are the only products in the rugged mobile computing category that weigh less than 10 ounces and have a full 3.5" display.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Image Sensor Type:
Imager
Barcode Symbology Supported:

1D:

  • China Post
  • Codabar
  • Codablock F
  • Code 11
  • Code 16K
  • Code 32 Pharmaceutical (PARAF)
  • Code 39
  • Code 49
  • Code 93 and 93i
  • Code 128
  • EAN-8
  • EAN-13
  • GS1-128
  • GS1 Databar (RSS-144, RSS Limited, RSS Expanded)
  • Interleaved 2 of 5
  • ISBT 128
  • Matrix 2 of 5
  • Korea Post
  • MSI
  • Plessey Code
  • PosiCode
  • Straight 2 of 5 IATA (two-bar start/stop)
  • Straight 2 of 5
  • Industrial (three-bar start/stop)
  • Telepen
  • Trioptic Code
  • UPC-A
  • UPC-A with Extended Coupon Code
  • UPC-E
  • UPC-E1

2D:

  • PDF417 (EAN-UCC Composite, MicroPDF417, PDF417, TCIF Linked Code 39, TLC39)
  • 4-CB (4-State Customer Barcode)
  • Australian Post
  • Aztec Code
  • Aztec Mesas
  • British Post
  • Canadian Post
  • GS1 Data Matrix
  • Han Xin
  • ID-tag (UPU 4-State)
  • Japanese Post
  • KIX (Netherlands) Post
  • MaxiCode
  • OCR
  • Planet Code
  • Postnet
  • QR Code
Electrostatic Discharge (ESD):
  • +/-15 kV DC Air Discharge
  • +/-8 kV DC Contact Discharge
Drop Specification:
48" To Concrete
Processor & Chipset
Processor Manufacturer:
Freescale
Processor Speed:
533 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
128 MB
Memory Card Slot:
Yes
Memory Card Supported:
microSD
Display & Graphics
Screen Size:
3.5"
Screen Mode:
QVGA
Screen Resolution:
240 x 320
Display Color:
Color
Touchscreen Information
Touchscreen:
Yes
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11b/g
Bluetooth:
Yes
Wireless Security:
  • EAP (TLS, PEAP-MSCHAPv2, PEAP-GTC, PEAP-TLS, TTLS, EAP-FAST, LEAP) or PSK
  • WPA2 (AES-CCMP)
  • WPA (TKIP)
  • WEP - 40 bit and 128-bit keys
Software
Operating System:
Windows CE 5.0
Battery Information
Battery Capacity:
2000 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Height:
1.2"
Width:
3.1"
Length:
5.8"
Weight (Approximate):
9.84 oz
Item Numbers
UNSPSC: 43211715
