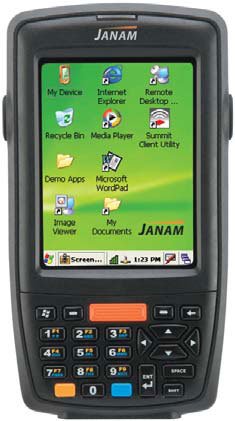

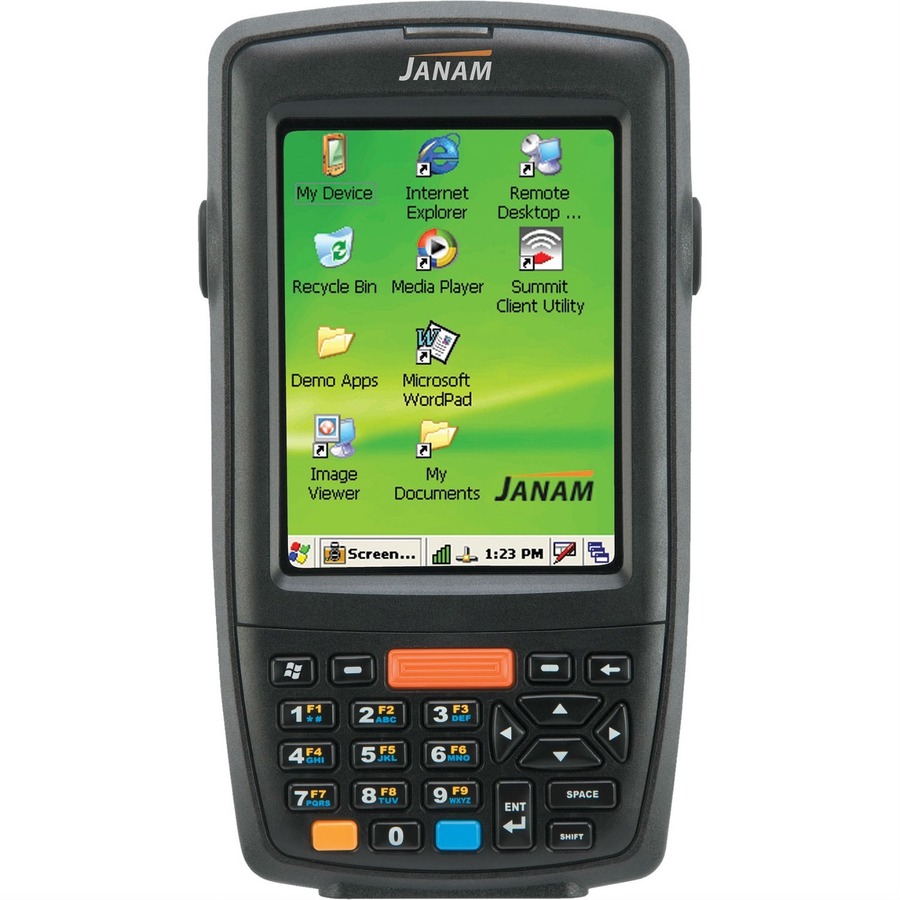

Janam XM60+ – Mobile Computer

Part Number: XM60W-1NACBV00
Model: XM60+
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Image Sensor Type
Imager
Barcode Symbology Supported
1D: China Post Codabar Codablock F Code 11 Code 16K Code 32 Pharmaceutical (PARAF) Code 39 Code 49 Code 93 and 93i Code 128 EAN-8 EAN-13 GS1-128 GS1 Databar (RSS-144, RSS Limited, RSS Expanded) Interleaved 2 of 5 ISBT 128 Matrix 2 of 5 Korea Post MSI Plessey Code PosiCode Straight 2 of 5 IATA (two-bar start/stop) Straight 2 of 5 Industrial (three-bar start/stop) Telepen Trioptic Code UPC-A UPC-A with Extended Coupon Code UPC-E UPC-E1
Electrostatic Discharge (ESD)
+/-15 kV DC Air Discharge+/-8 kV DC Contact Discharge

Product Description:

  Janam XM60+ Handheld Terminal - Freescale i.MX31 533 MHz - 256 MB RAM - 256 MB Flash - 3.5" QVGA LCD - Numeric Keyboard - Wireless LAN - Bluetooth

Janam XM60+ Mobile Computer Model Overview

The Janam XM60+ is feature-rich and affordable. This rugged Windows CE mobile computer delivers advanced barcode scanning, robust WLAN communication and long battery life. It features the latest, most powerful Freescale processor and double data rate (DDR) memory, making it faster than other devices in its class. And Janam's XM Series devices are the only products in the rugged mobile computing category that weigh less than 10 ounces and have a full 3.5" display.
Janam XM60W-1NACBV00 Mobile Computer Overview

The XM60+ is feature-rich and affordable. This rugged Windows® CE mobile computer, delivers advanced barcode scanning, robust WLAN communication and long battery life. It features the latest, most powerful Freescale processor and double data rate (DDR) memory, making it faster than other devices in its class. And Janam's XM Series devices are the only products in the rugged mobile computing category that weigh less than 10 ounces and have a full 3.5" display.

The XM60+ features Summit's embedded Wi-Fi® radio with unparalleled range, security, network performance and radio control. It also delivers Hi-Speed USB 2.0, a user accessible microSD card slot, more memory and increased battery capacity.

The XM60+ meets IP54 sealing requirements and withstands multiple 4'/1.2m drops to concrete across a wide temperature range.

Technical Information
Connectivity Technology:
Wireless
Image Sensor Type:
Imager
Barcode Symbology Supported:
1D:
  • China Post
  • Codabar
  • Codablock F
  • Code 11
  • Code 16K
  • Code 32 Pharmaceutical (PARAF)
  • Code 39
  • Code 49
  • Code 93 and 93i
  • Code 128
  • EAN-8
  • EAN-13
  • GS1-128
  • GS1 Databar (RSS-144, RSS Limited, RSS Expanded)
  • Interleaved 2 of 5
  • ISBT 128
  • Matrix 2 of 5
  • Korea Post
  • MSI
  • Plessey Code
  • PosiCode
  • Straight 2 of 5 IATA (two-bar start/stop)
  • Straight 2 of 5 Industrial (three-bar start/stop)
  • Telepen
  • Trioptic Code
  • UPC-A
  • UPC-A with Extended Coupon Code
  • UPC-E
  • UPC-E1
Electrostatic Discharge (ESD):
  • +/-15 kV DC Air Discharge
  • +/-8 kV DC Contact Discharge
Drop Specification:
48" To Concrete
Processor & Chipset
Processor Manufacturer:
Freescale
Processor Type:
i.MX31
Processor Speed:
533 MHz
Memory
Standard Memory:
256 MB
Flash Memory:
256 MB
Memory Card Slot:
Yes
Memory Card Supported:
microSD
Display & Graphics
Screen Size:
3.5"
Screen Mode:
QVGA
Screen Resolution:
240 x 320
Display Color:
Color
Display Screen Type:
LCD
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Resistive
Keyboard/Keypad
Keyboard Type:
Numeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g
Bluetooth:
Yes
Wireless Security:

Authentication:

  • EAP (TLS, PEAP-MSCHAPv2, PEAP-GTC, PEAP-TLS, TTLS, EAP-FAST, LEAP)
  • PSK

Encryption:

  • WPA2 (AES-CCMP)
  • WPA (TKIP)
  • WEP - 40 Bit and 128-Bit Keys
Interfaces/Ports
USB:
Yes
Software
Operating System:
Windows CE 5.0
Battery Information
Battery Capacity:
2400 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Height:
1.2"
Width:
3.1"
Length:
5.8"
Weight (Approximate):
9.80 oz
Miscellaneous
Package Contents:
  • XM60+ Handheld Terminal
  • Battery
Certifications & Standards:
  • IP54 Category II
  • Aruba Networks certified
  • Cisco certified
Safety:
  • CSA C22.2 No. 60950-1-03
  • EN60950-1:2001+A11
  • IEC/EN60601-1-2:2007
EMI:
  • FCC Part 15 Subpart B
  • EN55022:1998+A1: 2000+A2:2003
  • EN55024:1998+A1:2000+A2:2003
  • ICES-003 Issue 4
  • AS/NZS CISPR 22:2006
RF:
  • FCC Part 15 Subpart C and Subpart B
  • EN300 328 v1.6.1 (2004-11)
  • EN301 489-1 v1.6.1 (2005-09)
  • EN301 489-17 v1.2.1 (2002-08)
  • RSS 210 Issue 6
  • AS/NZS 4268:2008
Hazardous Locations:
  • UL Listing (US and Canada) Class I Div 2, Groups A, B, C, D
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211715
