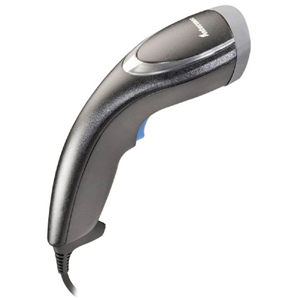

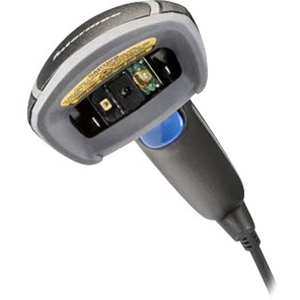

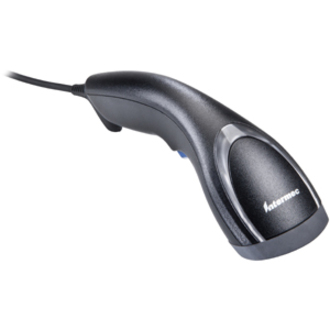

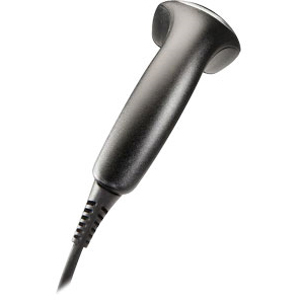

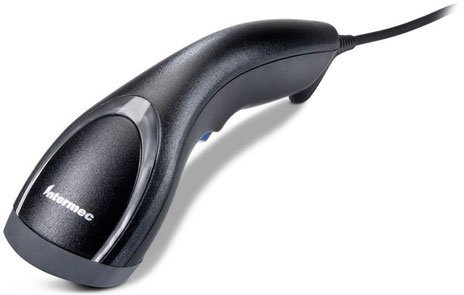

Intermec SG20 Series – Barcode Scanner – 1D

Part Number: SG20T2D-001
Model: SG20 Series
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D
Scanner Type
CCD, Imager

Product Description:

  Intermec SG20 General Duty Imager - Cable Connectivity - 1D, 2D - Imager - Omni-directional - USB, Keyboard Wedge, Serial - Black

Honeywell SG20 Series Barcode Scanner Model Overview

The Intermec SG20 Series is an affordable, high-performance handheld scanner available in a range of models suited to the demands of general purpose countertop scanning. The SG20 Series Features the industry's fastest 2D-imaging technology for highly responsive, dependable scanning, a unique, ergonomic styling maximizes comfort that saves countertop space, a large LED indicator provides effective visual operational feedback, Bluetooth wireless or tethered (cabled) connectivity,integrates seamlessly with point-of-sale systems, personal computers, common software solutions and a wide range of multi-purpose accessories to increase scanner flexibility.
Intermec SG20T2D-001 Barcode Scanner Overview
Speed up the customer checkout experience with the SG20 handheld scanner, available with the industry's fastest 2D bar code imaging technology for quick, flawless scans - every time. Ergonomically designed for the needs of countertop scanning applications in retail, office, library, and light manufacturing.
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • Codabar
  • Code 11
  • Code 39
  • Code 93/93i
  • Code 128 / GS1-128
  • EAN/UPC
  • GS1 DataBar Limited
  • GS1 Composite (linear only)
  • GS1 DataBar Expanded
  • GS1 DataBar Omnidirectional
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • MSI
  • Plessey
  • Standard 2 of 5
  • Telepen

2D:

  • Australian Post
  • Aztec
  • BPO
  • Canada Post
  • Codablock A
  • Codablock F
  • DataMatrix
  • Dutch Post
  • EAN/UPC
  • GS1 Composite
  • GS1 DataBar Stacked
  • Infomail
  • Intelligent Mail
  • Japan Post
  • Maxicode
  • Micro PDF417
  • Multicode
  • PDF417
  • Planet
  • Postnet
  • QR Code
  • Sweden Post
  • TLC 39
Image Sensor Type:
Imager
Maximum Scan Resolution:
6.60 mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
  • USB
  • Keyboard Wedge
  • Serial
Physical Characteristics
Color:
Black
Height:
2.6"
Width:
2.4"
Length:
7.9"
Weight (Approximate):
4.41 oz
Miscellaneous
Additional Information:

USB Cable separate

Platform Supported:
PC
Item Numbers
GTIN: 0175890757218, 0783555099063
UPC: 175890757218, 783555099063
EAN: 0175890757218, 0783555099063
UNSPSC: 43211701

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (1)
  • Docks and Cradles (2)
  • Mounting Hardware and Stands (2)
  • Power Device (3)
  • Scanner Accessories (4)

Recommended Accessories for Model: Intermec SG20T2D-001 Barcode Scanner

Top Cables, Connectors, and Adapters Purchased With Intermec SG20T2D-001

Top Docks and Cradles Purchased With Intermec SG20T2D-001

Top Mounting Hardware and Stands Purchased With Intermec SG20T2D-001

Top Power Device Purchased With Intermec SG20T2D-001

Top Scanner Accessories Purchased With Intermec SG20T2D-001

See All Scanner Accessories for Intermec SG20T2D-001 Barcode Scanner >
