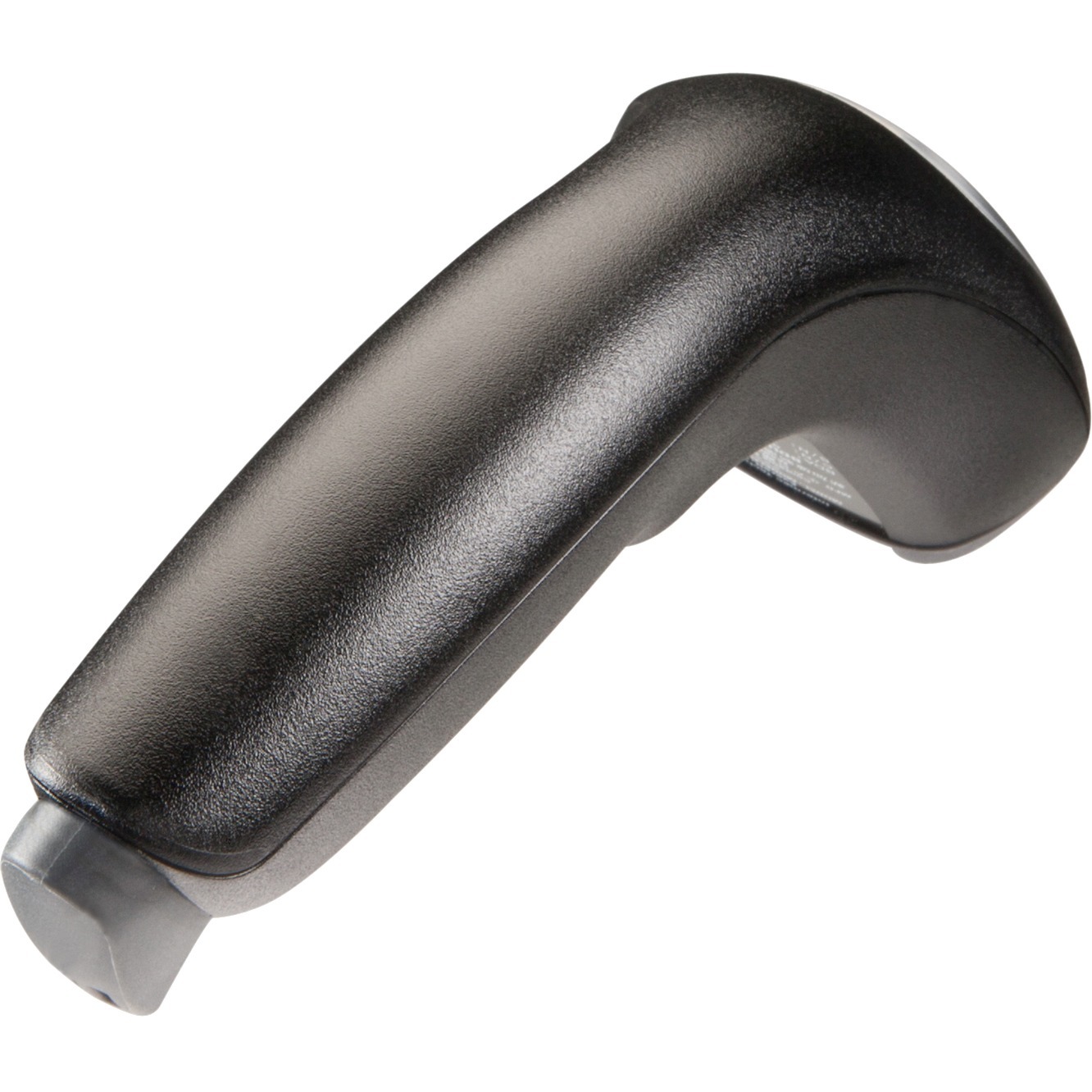

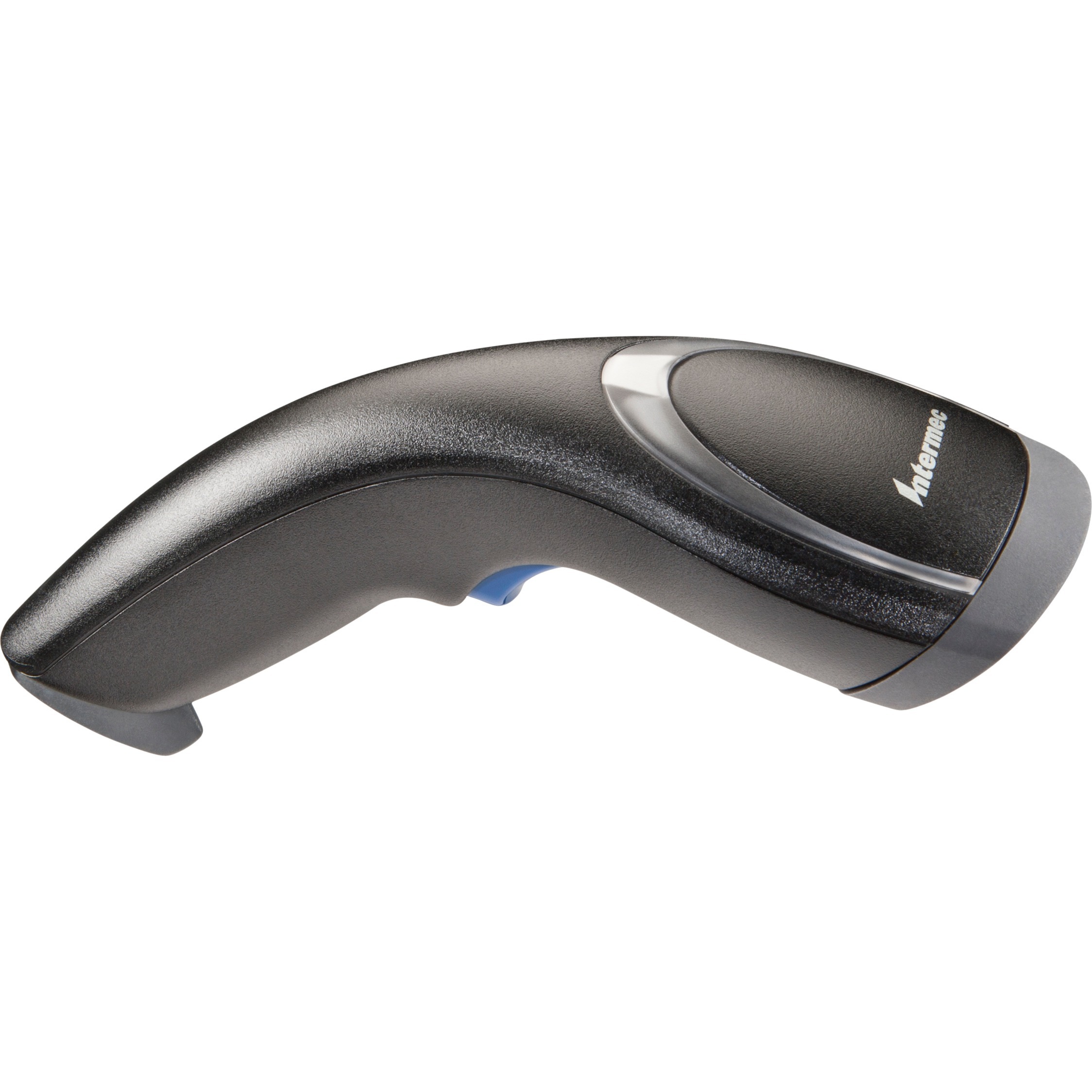

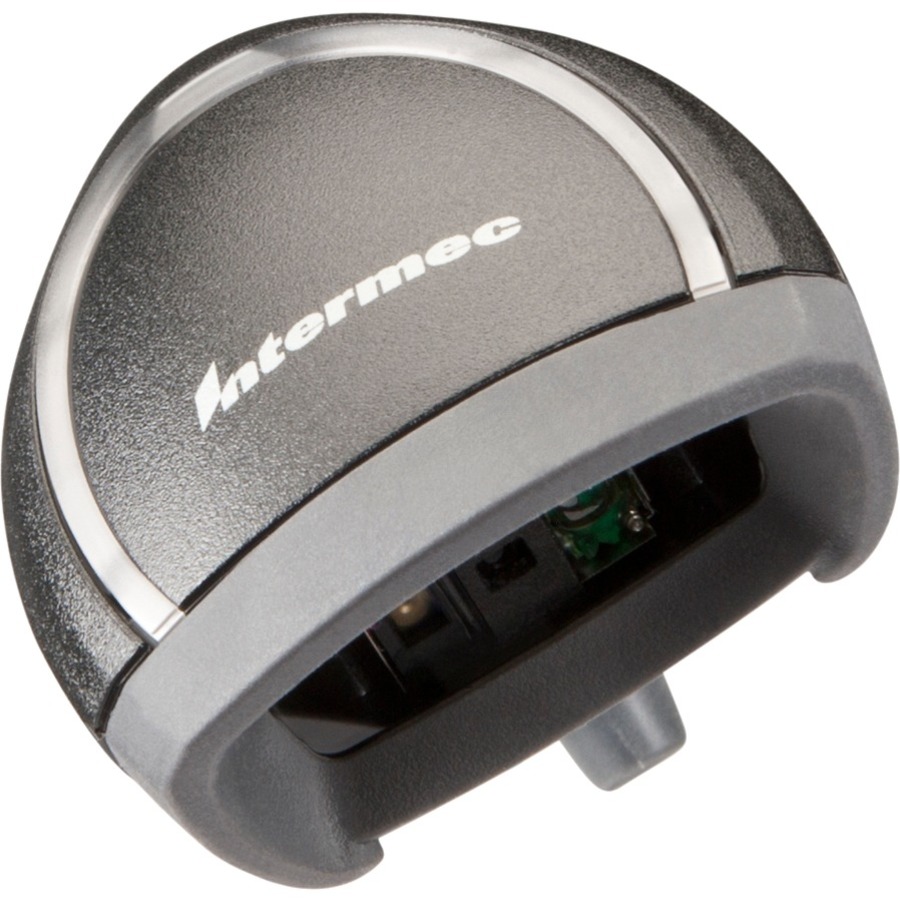

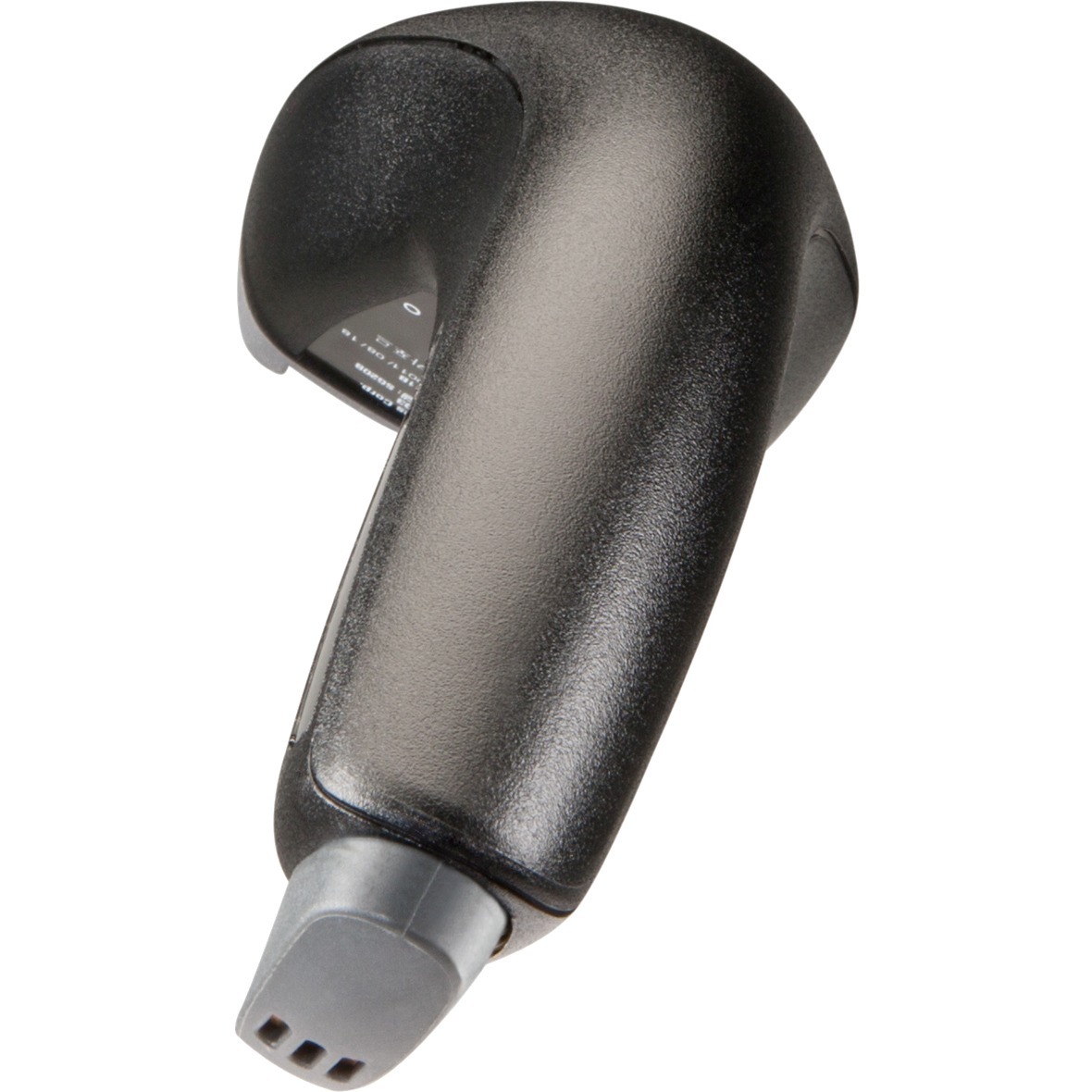

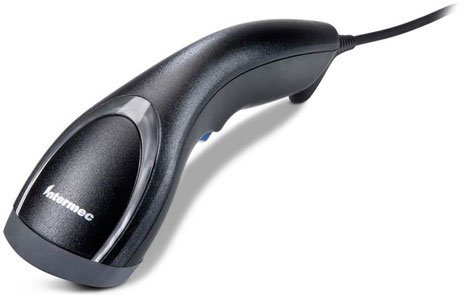

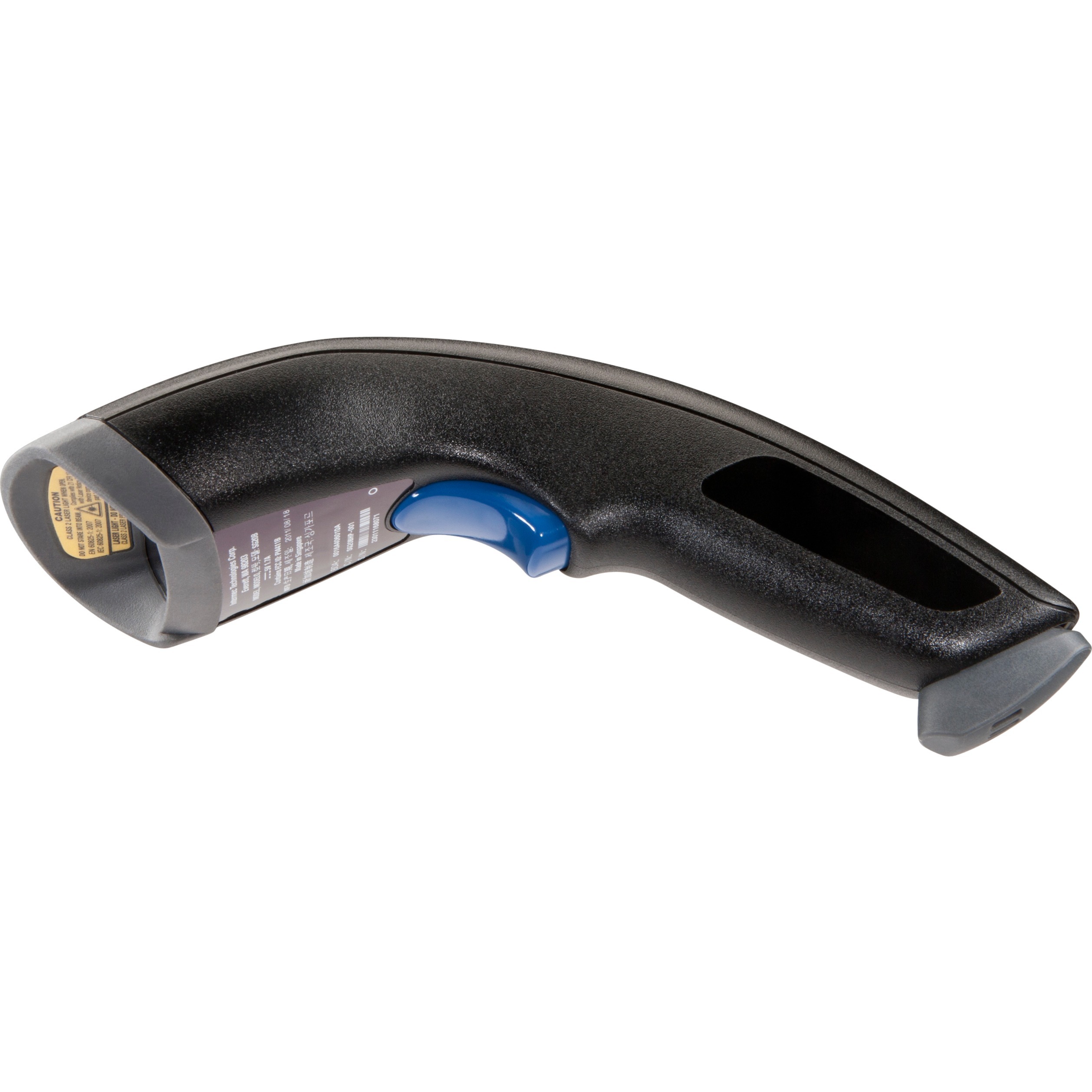

Intermec SG20 Series – Barcode Scanner – 1D

Part Number: SG20B1D-USB002-6
Model: SG20 Series

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  SG20 CORDLESS USB KIT, KIT INCLUDES 1D IMAGER, BLUETOOTH CHARGE BASE, USB CABLE, LEV 6 PWR SUPPLY, ORDER POWER CORD SEPARATELY

Honeywell SG20 Series Barcode Scanner Model Overview

The Intermec SG20 Series is an affordable, high-performance handheld scanner available in a range of models suited to the demands of general purpose countertop scanning. The SG20 Series Features the industry's fastest 2D-imaging technology for highly responsive, dependable scanning, a unique, ergonomic styling maximizes comfort that saves countertop space, a large LED indicator provides effective visual operational feedback, Bluetooth wireless or tethered (cabled) connectivity,integrates seamlessly with point-of-sale systems, personal computers, common software solutions and a wide range of multi-purpose accessories to increase scanner flexibility.
Intermec SG20B1D-USB002-6 Barcode Scanner Overview

Speed up your customers' checkout experience with an SG20 handheld scanner - ergonomically designed for countertop scanning applications in retail, office, library, and light manufacturing. Also available in a specialized healthcare version. (Wired or wireless)

Choice

The SG20 series is available with 1D or 2D scan engines, laser- or LED-based aimers, wired or wireless connectivity, and standard or healthcare configurations.

Snappy

Available with the EA30 or EA31 imagers, providing high motion tolerance for responsive, dependable scanning.

Comfortable

Unique, ergonomic styling maximizes comfort and saves countertop space

Accessorize

Choose from a wide range of multi-purpose accessories that increase scanner flexibility.

Visually Stunning

A large LED lightpipe indicator provides effective visual operational feedback.

Easy to Connect

Integrates seamlessly with point of sale systems, iOS® and Android™ devices, personal computers, and common software solutions.

Healthcare-Ready Version

Available in a specialized healthcare version. Its disinfectant-ready housing and LED-based aimer are ideal for patient-facing applications.

Product Details

With more motion tolerance than competing devices, the SG20 series ensures you can scan all common 1D and 2D barcodes easily and consistently.

The SG20 series' arching profile is perfect for tight spaces. Its over-sized multi-color LED lightpipe provides a bright, visual cue to confirm a successful scan - a helpful feature in noisy environments. And options abound.

  • Select between Bluetooth® wireless for a range up to 10 meters (32.8 feet), or the simplicity of tethered (cabled) connectivity.
  • Choose the scan engine matched to your needs: either 1D (linear), 2D with laser aimer, or 2D with LED aimer ideal for customer-facing applications.

Now you can standardize on a single scanner family across your operation, while providing the right solution for your varied applications.

For healthcare or food service applications with special sanitation requirements, the SG20 series also includes a healthcare configuration. It features a disinfectant-ready housing to withstand the harmful effects of frequent chemical wipe downs. This healthcare model also includes an LED-based aimer that's ideal for patient-facing applications.

And regardless of the configuration, the entire SG20 line is priced for affordability and value.

The SG20 series is also available with matching accessories, such as scan stands and holders that enable hands-free scanning. They free up counter or desktop space too.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
1D
Barcode Symbology Supported:
1D:
  • Codabar
  • Code 11
  • Code 39
  • Code 93/93i
  • Code 128 / GS1-128
  • EAN/UPC
  • GS1 DataBar Limited
  • GS1 Composite (linear only)
  • GS1 DataBar Expanded
  • GS1 DataBar Omnidirectional
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • MSI
  • Plessey
  • Standard 2 of 5
  • Telepen
Image Sensor Type:
Imager
Network & Communication
Bluetooth:
Yes
Physical Characteristics
Height:
2.6"
Width:
2.4"
Length:
7.9"
Weight (Approximate):
6.17 oz
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • REACH
  • China RoHS
  • RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0783555149102
UPC: 783555149102
EAN: 0783555149102
UNSPSC: 43211701
