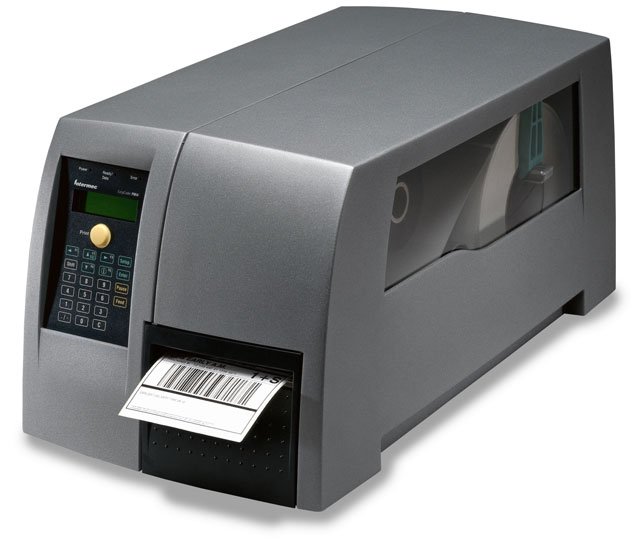

Intermec EasyCoder PM4i – Barcode Label Printer

Part Number: PM4D013800000020
Model: EasyCoder PM4i
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recommended Use
RFID Label Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
8 in/s
Maximum Print Resolution (dpi)
203

Product Description:

  Direct Thermal/Thermal Transfer printing, Ultra-High Frequency RFID encoder, 203 DPI, 4" print width, Ethernet/RS-232/USB interfaces, CC38. Interface/power cables sold separately.
Explore all Intermec EasyCoder PM4i Barcode Label Printers
Add to Quote
Intermec PM4D013800000020 Barcode Label Printer
Intermec PM4D013800000020 Barcode Label Printer
Intermec PM4D013800000020 Barcode Label Printer
Intermec PM4D013800000020 Barcode Label Printer Intermec PM4D013800000020 Barcode Label Printer

Full specifications (PDF)

Intermec EasyCoder PM4i Barcode Label Printer Model Overview

The EasyCoder PM4i is an industrial printer designed to excel in demanding applications and environments. Utilizing the latest technology, the EasyCoder PM4i features a strong and proven mechanical platform, and powerful newly developed electronics. The EasyCoder PM4i printer acts as a "smart client" executing user-defined programs. This means your EasyCoder PM4i printer eliminates the personal computer, operates additional hardware (e.g. scanners, other printers, conveyors), accesses information from network host, and retains the ability to change as needed with the application for additional functionality. When using the EasyLAN Wireless option for the EasyCoder PM4i, any attached peripheral devices also become part of the wireless infrastructure. Includes Intermec LabelShop START barcode label design software.
Intermec PM4D013800000020 Barcode Label Printer Overview

A member of the smartest bar code printer family on the market, the PM4i is flexible and programmable, enabling customers to optimize their printing operations, streamline deployment, and achieve quick return on investment. Built to meet the needs of mission-critical applications, the rugged PM4i delivers advanced, secure connectivity and the latest network protocols, ensuring peace-of-mind today and a reliable, scalable solution for the long haul. The popular PM4i RFID Printer is part of Intermec's complete line of smart, strong and secure industrial printers.

Full specifications (PDF)
Technical Information
Recommended Use:
RFID Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • UCC/EAN 128
  • LOGMARS
  • POSTNET
  • HIBCC
  • ISBT-128
Application/Usage:
Desktop
Print Technology:
Thermal Transfer
Memory
Standard Memory:
32 MB
Memory Technology:
SDRAM
Flash Memory:
16 MB
Memory Card Slot:
Yes
Memory Card Supported:
CompactFlash
RFID
Minimum Operating Frequency:
865 MHz
Maximum Operating Frequency:
928 MHz
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
RFID:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Thermal Transfer Label
  • Ticket
  • Tag
  • RFID Label
Media Sensor:
Transmissive Media Sensor
Media Thickness:
8.70 mil
Maximum Roll Diameter:
8.38"
Maximum Label Width:
4.50"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • IPL
  • Fingerprint
  • DPL
  • XML
  • ZPL
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Maximum Power Consumption:
300 W
Standby Power Consumption:
15 W
Physical Characteristics
Height:
10.3"
Width:
11.7"
Depth:
21.4"
Weight (Approximate):
29.76 lb
Miscellaneous
Platform Supported:
PC
Certifications & Standards:
  • FCC
  • ETSI
  • CE (EN55022 Class A)
  • FCC Class A
  • UL/cUL
  • C-Tick
