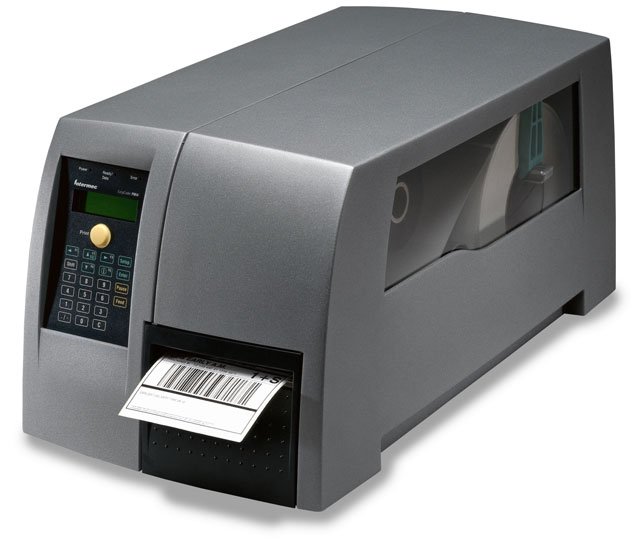

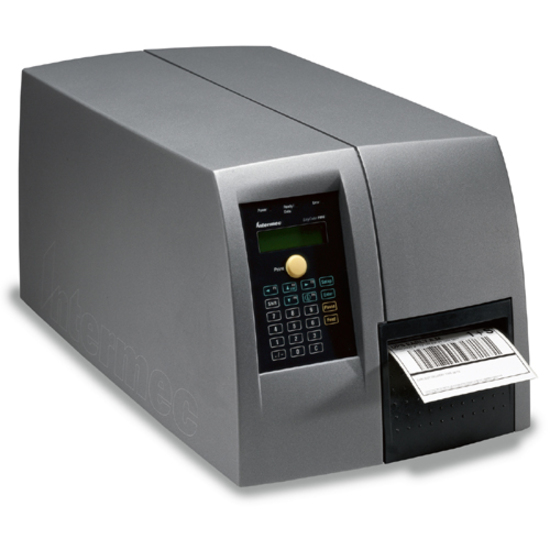

Intermec EasyCoder PM4i – Barcode Label Printer – 203 dpi – Thermal Transfer – Rewinder

Part Number: PM4C810000300020
Model: EasyCoder PM4i
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet
Print Resolution
203 dpi

Product Description:

  Thermal transfer & direct thermal, Fingerprint Firmware, EasyLAN Ethernet Interface, 16MB RAM, 4MB Flash, Paper Hanger, Paper Rewind and TT 203 dpi, 4.1 Inch Print Width
Explore all Intermec EasyCoder PM4i Barcode Label Printers
Add to Quote
Intermec PM4C810000300020 Barcode Label Printer
Intermec PM4C810000300020 Barcode Label Printer
Intermec PM4C810000300020 Barcode Label Printer
Intermec PM4C810000300020 Barcode Label Printer Intermec PM4C810000300020 Barcode Label Printer

Full specifications (PDF)

Intermec EasyCoder PM4i Barcode Label Printer Model Overview

The EasyCoder PM4i is an industrial printer designed to excel in demanding applications and environments. Utilizing the latest technology, the EasyCoder PM4i features a strong and proven mechanical platform, and powerful newly developed electronics. The EasyCoder PM4i printer acts as a "smart client" executing user-defined programs. This means your EasyCoder PM4i printer eliminates the personal computer, operates additional hardware (e.g. scanners, other printers, conveyors), accesses information from network host, and retains the ability to change as needed with the application for additional functionality. When using the EasyLAN Wireless option for the EasyCoder PM4i, any attached peripheral devices also become part of the wireless infrastructure. Includes Intermec LabelShop START barcode label design software.
Intermec PM4C810000300020 Barcode Label Printer Overview

The EasyCoder PM4i is an industrial printer designed to excel in demanding applications and environments. Utilizing the latest technology, the PM4i features a strong and proven mechanical platform, and powerful newly developed electronic.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • MSA
  • Code 128
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • DUN-14/16
  • EAN-13
  • EAN-8
  • UPC-A
  • UPC-E
  • EAN 128
  • EAN-128 Subset A
  • EAN-128 Subset B
  • EAN-128 Subset C
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Matrix 25
  • Planet Code
  • POSTNET
  • Straight 2 of 5
  • UCC 128
  • RSS
  • HIBC Code 39
  • HIBC Code 128
  • JIS-ITF
  • Code 16K
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
  • EAN.UCC Composite
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Roll Fed
  • Die-cut Label
  • Continuous Form
  • Fanfold
  • Tag
  • Ticket
Media Thickness:
7 mil
Maximum Roll Diameter:
8.38"
Maximum Label Width:
4.50"
Label Core Size:
3"
Ribbon Core Size:
1"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
10.3"
Width:
11.7"
Depth:
21.4"
Miscellaneous
Power Cable Localization:
US
Package Contents:
  • EasyCoder PM4i Label Printer
  • US Power Cord
  • User & Installation manuals
  • Printer Companion CD
  • Cleaning Card
  • RS-232 Cable
  • Product registration card
  • Declaration of Conformity
Cables Included:
  • RS-232
  • AC
Additional Information:
  • I2C-bus for cutter
  • Wand interface for EasySet System
Platform Supported:
PC
Certifications & Standards:
  • CE (EN55022 Class A)
  • FCC Class A
  • UL
  • CSA
  • C-Tick
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
