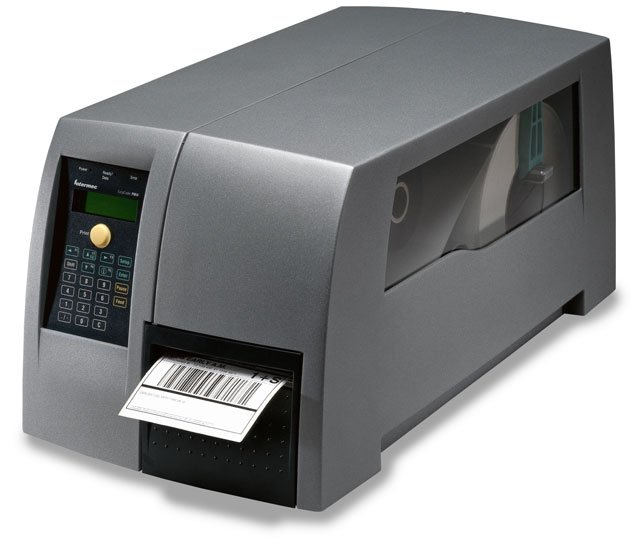

Intermec EasyCoder PM4i – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: PM4B010000000020
Model: EasyCoder PM4i

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet
Print Resolution
203 dpi

Product Description:

  Thermal transfer & direct thermal, US Power Supply, IPL Firmware, No Interface, EasyLAN Ethernet, 203 dpi

Intermec EasyCoder PM4i Barcode Label Printer Model Overview

The EasyCoder PM4i is an industrial printer designed to excel in demanding applications and environments. Utilizing the latest technology, the EasyCoder PM4i features a strong and proven mechanical platform, and powerful newly developed electronics. The EasyCoder PM4i printer acts as a "smart client" executing user-defined programs. This means your EasyCoder PM4i printer eliminates the personal computer, operates additional hardware (e.g. scanners, other printers, conveyors), accesses information from network host, and retains the ability to change as needed with the application for additional functionality. When using the EasyLAN Wireless option for the EasyCoder PM4i, any attached peripheral devices also become part of the wireless infrastructure. Includes Intermec LabelShop START barcode label design software.
Intermec PM4B010000000020 Barcode Label Printer Overview

The EasyCoder PM4i is an industrial printer designed to excel in demanding applications and environments. Utilizing the latest technology, the PM4i features a strong and proven mechanical platform, and powerful newly developed electronics.

The EasyCoder PM4i printer acts as a "smart client" executing user-defined programs. This means your PM4i printer eliminates the personal computer, operates additional hardware (e.g. scanners, other printers, conveyors), accesses information from network host, and retains the ability to change as needed with the application for additional functionality.

Printer command languages do not restrict the EasyCoder PM4i bar code label printer. The printer can be changed to understand and replace competitive and older Intermec printers without requiring any changes to the host programming or label formats that are currently being used.

The magnetic QuickMount printhead eliminates hassles and the need to call a service technician. The printhead is replaced quickly and easily with the magnet and u-brackets ensuring proper alignment. The double-clutching ribbon mechanism means that you are no longer restricted to ribbon types based on how they are wound. The EasyCoder PM4i printer is exceptionally fast in throughput and printing, reliable, and delivers very high print quality.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
7.50 in/s
Maximum Print Resolution (dpi):
300 x 300
Maximum Print Width:
4.16"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • Plessey
  • Code 128
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • EAN-8
  • EAN-13
  • UPC-A
  • UPC-E
  • EAN 128
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Planet Code
  • POSTNET
  • UCC 128
  • RSS
  • HIBC
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
  • LOGMARS
  • ISBT-128
  • HIBCC
Application/Usage:
Industrial
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
8 MB
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Roll Fed
  • Die-cut Label
  • Continuous Form
  • Fanfold
  • Tag
  • Ticket
Media Thickness:
275.59 mil
Maximum Roll Diameter:
8.38"
Maximum Label Length:
99.20"
Software
Software Included:
  • Intermec LabelShop START label design and print package
Power Description
Input Voltage:
110 V AC
Frequency:
65 MHz
Miscellaneous
Package Contents:
  • PM4i Industrial Thermal Printer
  • InterDriver Windows printer driver
  • Intermec Printer Network Manager for administration of network connected printers
  • PrintSet for printer configuration
Additional Information:
  • Full keypad control panel (Fingerprint/DP)
  • Reduced keypad control panel (IPL)
  • Supports PCX file format
Platform Supported:
PC
Certifications & Standards:
  • CE (EN55022 Class A)
  • FCC Class A
  • UL
  • CSA
  • C-Tick
Item Numbers
UNSPSC: 43212108
