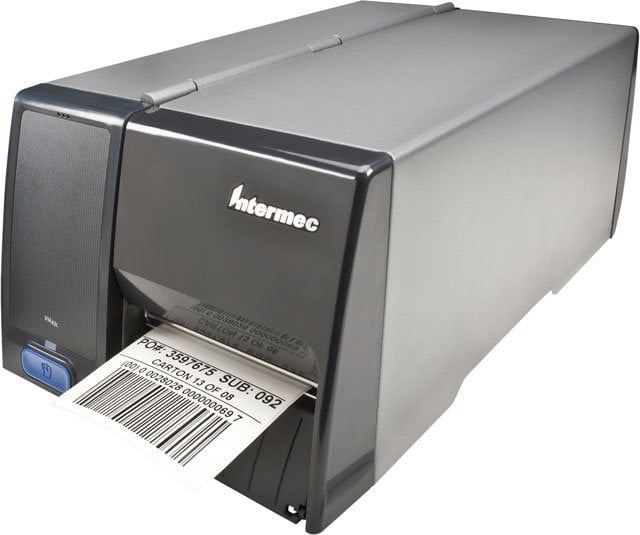

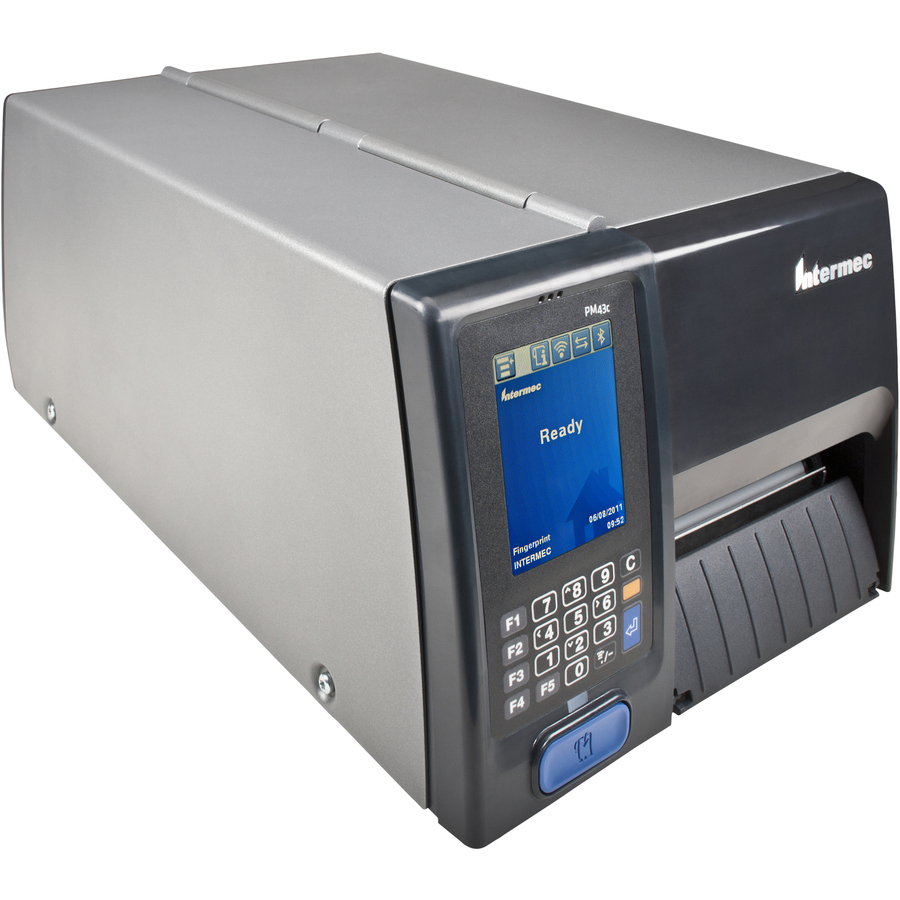

Intermec PM43CA1230040211 Barcode Printer

Intermec PM43c - Direct thermal Printer, Color Touchscreen, Usb, Serial, Ethernet, Lan, Wi-Fi + Bluetooth, Long Door + Front Access, Rew + Lts, Fixed Hanger, 200 + Dt, Na Power cord
Fastest to Deploy. Seamlessly Fits Any Environment.

The Intermec PM43c compact mid-range industrial label printers are ready to perform. Reduce workforce training and support with the tamper-proof, 10-language, color touch-screen or universal-icon interface. The PM43c is a third-generation Intermec industrial printer designed to maximize your uptime. Count on the PM43c to deliver quick deployment, the fastest print speed in its class, and proven reliability.

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Resolution: 200 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features: Rewinder
  • Barcode Symbology Supported:
    • UPC/EAN Shipping Container
    • UCC/EAN 128 Serial Shipping Container
    • LOGMARS
    • POSTNET
    • HIBCC
    • ISBT-128
    • GM1724

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: PM
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PM43c
  • Product Name: PM43c Label Printer

Physical Characteristics

  • Height: 7.1"
  • Width: 9.9"
  • Depth: 17"
  • Form Factor: Desktop
  • Weight (Approximate): 27.65 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • ENERGY STAR
    • RoHS
  • Platform Supported: PC
  • Package Contents:
    • PM43c Label Printer
    • US Power Cord
    • PM43c Label Printer
    • US Power Cord
  • Certifications & Standards:
    • PFC Regulation: IEC320/C14
    • CE (EN55022 Class A)
    • FCC Class A
    • UL/cUL
    • C-Tick
    • D Mark
    • CCC

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Media Type:
    • Label
    • Tag
    • Linered Label
    • Linerless
    • Roll Fed
    • Fanfold
    • Gap
    • Notch
    • Black Mark
    • Continuous Label
  • Media Thickness: 10.40 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Label Taken Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8.38"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Standby Power Consumption: 9 W
  • Maximum Power Consumption: 300 W
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • Fingerprint
    • IPL
    • ZSim
    • DSim
    • XML

Network & Communication

  • Bluetooth: Yes
  • Ethernet: Yes
  • Wireless LAN: Yes
  • Ethernet Technology: Fast Ethernet
  • Wireless LAN Standard: IEEE 802.11b/g/n

Memory

  • Standard Memory: 128 MB
  • Memory Technology: SDRAM
  • Flash Memory: 128 MB

Display & Graphics

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Intermec
Model PM43c
Label Core 3 inches, 1.5 inches
Print Method Direct Thermal
Included Features Media Hanger, Rewinder
Print Speed 12
Interface Options Ethernet, Wireless, Serial, USB, Bluetooth, SDIO Slot
Maximum Print Width 4.25
Print Resolution 203 dpi
Printer Type Industrial
Max Label Width 4.50
Max Roll Outer Diameter 6
Printer Mobility Not Mobile
