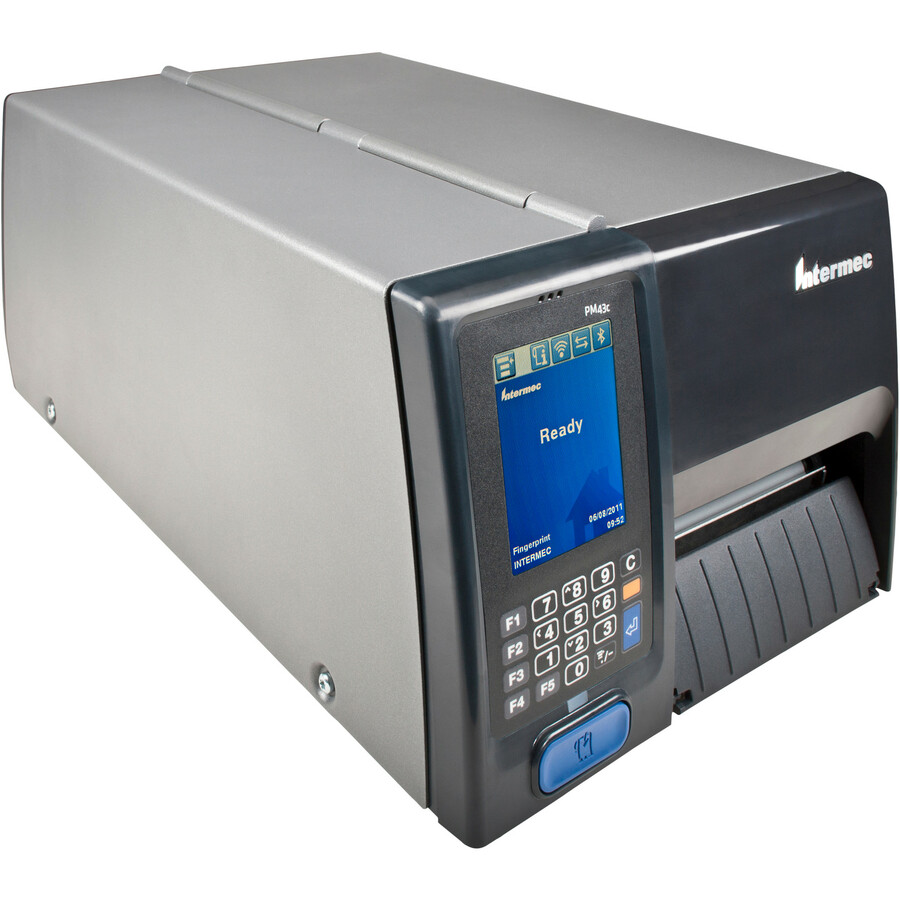

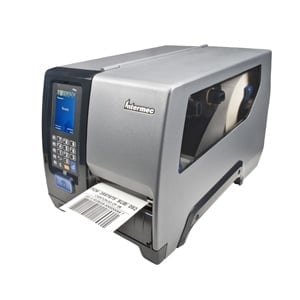

Intermec PM43CA – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: PM43CA1150000201
Model: PM43CA
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Serial (RS-232), USB, USB Host
Print Resolution
203 dpi

Product Description:

  Industrial Printer, Intermec PM43CA, Thermal Transfer, 203 dpi, 12ips, Media Hanger, Ethernet/Serial/USB, Fixed Media Hanger, US Power Cord, Full Touch Display, Dome Door and Front Door
Explore all Intermec PM43c Barcode Label Printers
Add to Quote
Intermec PM43CA1150000201 Barcode Label Printer
Intermec PM43CA1150000201 Barcode Label Printer
Intermec PM43CA1150000201 Barcode Label Printer Intermec PM43CA1150000201 Barcode Label Printer
Full specifications (PDF)

Intermec PM43c Barcode Label Printer Model Overview

The Intermec PM43c compact mid-range industrial label printers are ready to perform. Reduce workforce training and support with the tamper-proof, 10-language, color touch-screen or universal-icon interface. The PM43c is a third-generation Intermec industrial printer designed to maximize your uptime. Count on the PM43c to deliver quick deployment, the fastest print speed in its class, and proven reliability.
Intermec PM43CA1150000201 Barcode Label Printer Overview
PM43/PM43c mid-range industrial label printers are ready to perform. Reduce workforce training and support with the tamper-proof, 10-language, color touch-screen or universal-icon interface. The PM43/PM43c is a third-generation Intermec industrial printer designed to maximize your uptime. Count on the PM43/PM43c to deliver quick deployment, the fastest print speed in its class, and proven reliability.
Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.17"
Barcode Symbology Supported:
  • UPC/EAN Shipping Container
  • UCC/EAN 128 Serial Shipping Container
  • LOGMARS
  • POSTNET
  • HIBCC
  • ISBT-128
  • GM1724
  • Code 93
  • Matrix 2 of 5
  • Industrial 2 of 5
  • Code 39
  • UCC 128
  • EAN 128
  • Code 49
  • QR Code
  • Maxi Code
  • Aztec Code
  • Macro PDF-417
  • Codabar
  • Code 11
  • Code 128
  • Code 16K
  • UPC
  • Interleaved 2 of 5
  • PDF-417
  • MSI PLESSEY
  • Plessey
  • Data Matrix
  • Planet Code
  • Standard 2 of 5
  • Grid Matrix
  • EAN/JAN
Application/Usage:
Desktop
Memory
Standard Memory:
128 MB
Memory Technology:
SDRAM
Flash Memory:
128 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Touchscreen:
Yes
Media Types & Handling
Media Type:
  • Ticket
  • Tag
  • Linered Label
  • Linerless
  • Roll Fed
  • Fanfold
  • Gap
  • Notch
  • Black Mark
  • Continuous Label
Media Sensor:
Transmissive Media Sensor
Media Thickness:
10.40 mil
Maximum Roll Diameter:
8.40"
Maximum Label Width:
4.50"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • IPL
  • Fingerprint
  • DSim
  • ZSim
  • XML
  • ZPL
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Maximum Power Consumption:
300 W
Standby Power Consumption:
9 W
Physical Characteristics
Height:
7.1"
Width:
9.9"
Depth:
17"
Weight (Approximate):
27.56 lb
Miscellaneous
Platform Supported:
PC
Certifications & Standards:
  • PFC Regulation: IEC320/C14
  • CE (EN55022 Class A)
  • FCC Class A
  • UL/cUL
  • C-Tick
  • D Mark
  • CCC
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
GTIN: 0682017462431, 0735548763284, 0783555137109, 0818268234927
UPC: 682017462431, 735548763284, 783555137109, 818268234927
EAN: 0682017462431, 0735548763284, 0783555137109, 0818268234927
UNSPSC: 43212108
