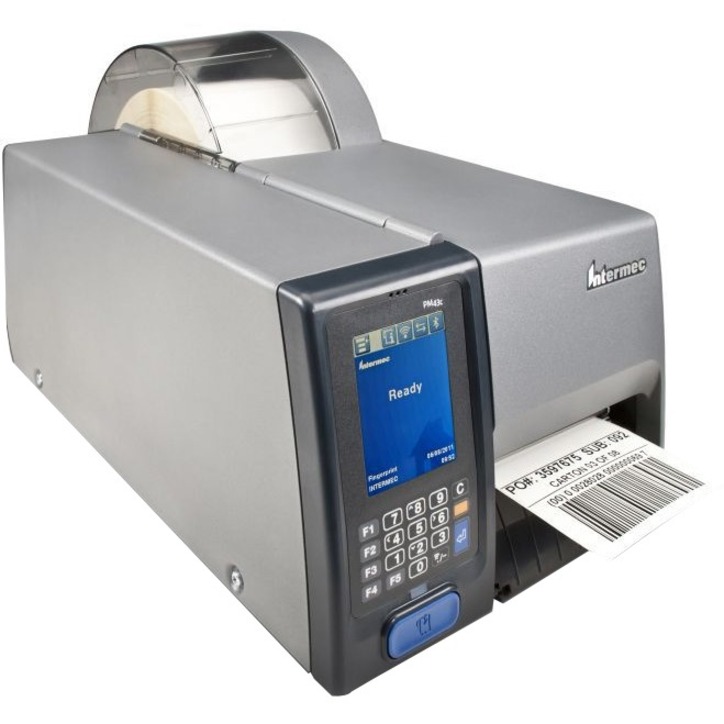

Intermec PM43CA1130000200 Barcode Label Printer

A newer version of this item is available.
It is replaced by the Honeywell PM45CA1000000200 Barcode Label Printer.

Intermec PM43c - Industrial Printer, Intermec PM43c, Thermal Transfer, 203 dpi, 12ips, LCD Touchscreen/Media Hanger, Ethernet/USB Host/USB, Fixed Media Hanger, Full Touch Display, Long Door and Front Door

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Ethernet, Serial (RS-232), USB, USB Host

Print Resolution

203 dpi

Max Print Width

4.5 inch

Ribbon Core Size

1 inch

Use Thermal Transfer Printer for their versatility and compact design, as well as their high-resolution and durable printing capabilities
203 maximum print resolution (dpi) for better reliance and added usability
Produce high-quality documents with this monochrome printer to increase your productivity
Enjoy the optimal performance in today's on-demand labeling applications
Tabletop form factor for your printing convenience and better reliance
Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
4.50" maximum label width for your convenience and feasible usability
Supports label media type for dependable, efficient results with maximum productivity
Thermal Transfer Printer with industrial application/usage provides reliable, feasible printing solution
Rugged feature for better reliance and usability

Need a different version? See all Intermec PM43c Barcode Label Printers

Discontinued See Replacement

Chat Now for Qty Discount

Add to Quote

Intermec PM43CA1130000200 Barcode Label Printer

Overview

Full specifications (PDF)

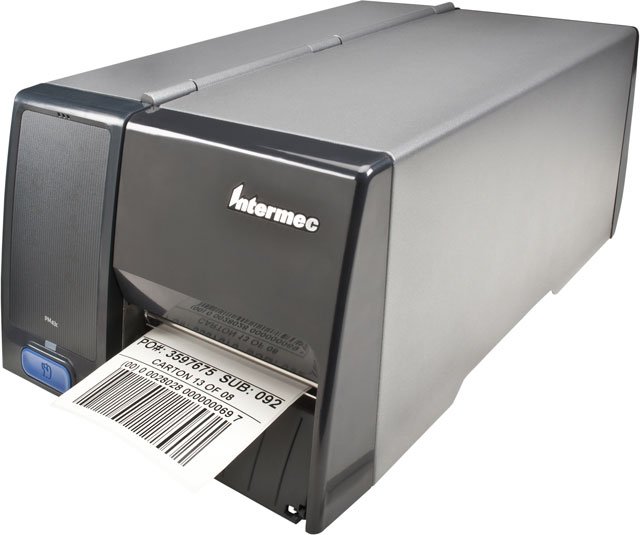

Intermec PM43c Barcode Label Printer Model Overview

The Intermec PM43c compact mid-range industrial label printers are ready to perform. Reduce workforce training and support with the tamper-proof, 10-language, color touch-screen or universal-icon interface. The PM43c is a third-generation Intermec industrial printer designed to maximize your uptime. Count on the PM43c to deliver quick deployment, the fastest print speed in its class, and proven reliability.

Intermec PM43CA1130000200 Barcode Label Printer Overview

Programmable PM series smart printers offer you reliable performance for uptime assurance, quick deployment and integration, and the fastest throughput in their class -: no PC required. The PM series are available in a variety of enclosure sizes and door types to fit your exact application.

Fast printing speed of up to 12 inches per second.
Run sophisticated apps right in the printer with industry-leading Honeywell Smart Printing supporting C#.
Comprehensive printer command language support, including ZSim2, makes upgrading easy.
Large color, multilingual, tamperproof touchscreen or icon user interface.
Ready for the future, with IPv6 support, plus CCX and Wi-Fi certifications.

The PM series Mid-Range Industrial Printers deliver proven reliability, fast drop-in deployment and integration, and advanced connectivity to maximize your uptime. They&apos:re ideal for applications in distribution centers, warehouses, manufacturing operations, and transportation centers. The PM series was designed for easy integration and fast deployment. Minimize workforce training and device support needs with intuitive features like a vibrant color touchscreen or intuitive icon user interface. Notifications are displayed right on screen, and the interface can be locked down to eliminate tampering. And with the broadest connectivity options in their class -: including Wi-Fi and Cisco CCX certifications, plus additional Bluetooth®: connectivity -: PM series quickly interface with virtually any IPv4 or IPv6 network. PM printers offer outstanding performance in harsh environments thanks to a rugged metal enclosure and the top print speed in their class at 304 mm/s (12 ips). Beyond the productivity of speed, PM printers also enable you to work smarter by reducing labeling errors and increasing process efficiency. Plus, in-printer apps can directly control other devices such as scanners, scales, keyboard and other peripherals -: without the need for an attached computer.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

11.81 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Length:

15.75 ft

Maximum Print Width:

4.25"

Application/Usage:

Industrial

Features:

Rugged

Connectivity Technology:

Wired

Memory

Standard Memory:

128 MB

Interfaces/Ports

Serial Port:

Yes

USB Host:

Yes

USB:

Yes

Network & Communication

Network Ready:

Yes

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Media Types & Handling

Media Type:

Label
Tag
Linerless
Linered Media

Media Sensor:

Black Mark Sensor

Media Thickness:

10.40 mil

Maximum Roll Diameter:

Maximum Label Width:

4.50"

Fonts & Emulation

Language Emulation:

DPL
Direct Protocol (DP)
ZPL II
XML
IPL

Power Description

Power Source:

AC Supply

Input Voltage:

120 V AC
230 V AC

Environmental Conditions

Operating Temperature:

41°F (5°C) - 104°F (40°C)

Operating Relative Humidity:

20% - 80%

Storage Temperature:

-4°F (-20°C) - 158°F (70°C)

Physical Characteristics

Form Factor:

Tabletop

Height:

7.1"

Width:

10"

Depth:

17"

Weight (Approximate):

27.56 lb

Miscellaneous

Platform Supported:

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Item Numbers

GTIN: 0783555266557

UPC: 783555266557

EAN: 0783555266557

UNSPSC: 43212108
