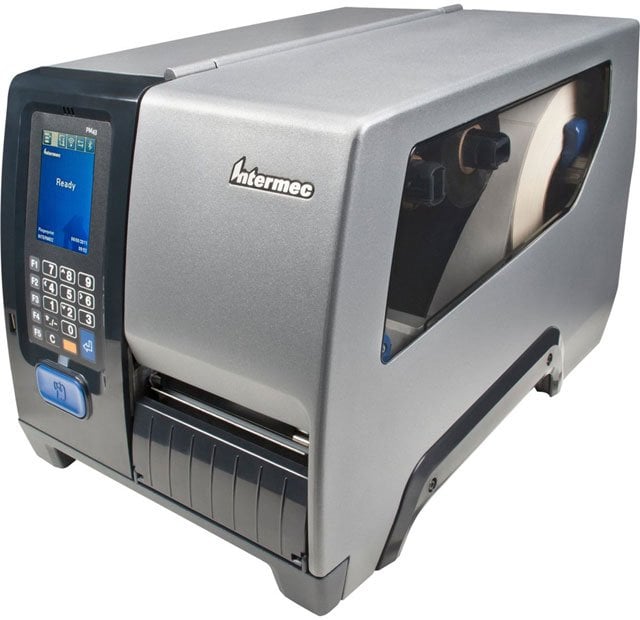

Intermec PM43A11010000201 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Intermec PM43 - Thermal transfer Printer, 203 dpi, Touch Display. USB, Ethernet, Serial, Parallel Interfaces. Fixed media hanger.
Fastest to Deploy. Seamlessly Fits Any Environment.

The Intermec PM43 mid-range industrial label printers are ready to perform. Reduce workforce training and support with the tamper-proof, 10-language, color touch-screen or universal-icon interface. The PM43 is a third-generation Intermec industrial printer designed to maximize your uptime. Count on the PM43 to deliver quick deployment, the fastest print speed in its class, and proven reliability.

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • UPC/EAN Shipping Container
    • UCC/EAN 128 Serial Shipping Container
    • LOGMARS
    • POSTNET
    • HIBCC
    • ISBT-128
    • GM1724
    • Code 93
    • Matrix 2 of 5
    • Industrial 2 of 5
    • Code 39
    • UCC 128
    • EAN 128
    • Code 49
    • QR Code
    • Maxi Code
    • Aztec Code
    • Macro PDF-417
    • Codabar
    • Code 11
    • Code 128
    • Code 16K
    • UPC
    • Interleaved 2 of 5
    • PDF-417
    • MSI PLESSEY
    • Plessey
    • Data Matrix
    • Planet Code
    • Standard 2 of 5
    • Grid Matrix
    • EAN/JAN

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: PM
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PM43
  • Product Name: PM43 Label Printer

Physical Characteristics

  • Height: 11.6"
  • Width: 11.2"
  • Depth: 19"
  • Form Factor: Desktop
  • Weight (Approximate): 34.88 lb

Interfaces/Ports

  • USB: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • ENERGY STAR
    • RoHS
  • Platform Supported: PC
  • Package Contents:
    • PFC Regulation: IEC320/C14
    • CE (EN55022 Class A)
    • FCC Class A
    • UL/cUL
    • C-Tick
    • D Mark
    • CCC
    • PFC Regulation: IEC320/C14
    • CE (EN55022 Class A)
    • FCC Class A
    • UL/cUL
    • C-Tick
    • D Mark
    • CCC

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Media Type:
    • Ticket
    • Tag
    • Linered Label
    • Linerless
    • Roll Fed
    • Fanfold
    • Gap
    • Notch
    • Black Mark
    • Continuous Label
  • Media Thickness: 10.40 mil
  • Media Sensor: Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.40"

Fonts & Emulation

  • Language Emulation:
    • IPL
    • Fingerprint
    • DSim
    • ZSim
    • XML
    • ZPL

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Standby Power Consumption: 9 W
  • Maximum Power Consumption: 300 W
  • Power Source: AC Supply

Memory

  • Standard Memory: 128 MB
  • Memory Technology: SDRAM
  • Flash Memory: 128 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Display & Graphics

  • Touchscreen: Yes

Full specifications (PDF)

Full specifications (PDF)

Brand Intermec
Model PM43
Print Speed 12
Label Core 3 inches, 1.5 inches
Interface Options Serial, Parallel, USB, Ethernet
Maximum Print Width 4.25
Print Resolution 203 dpi
Max Roll Outer Diameter 8
Max Label Width 4.50
Print Method Thermal Transfer
Printer Type Industrial
Printer Mobility Not Mobile
Ribbon Core 1
