Intermec PM43A11000041211 Barcode Printer

Larger view

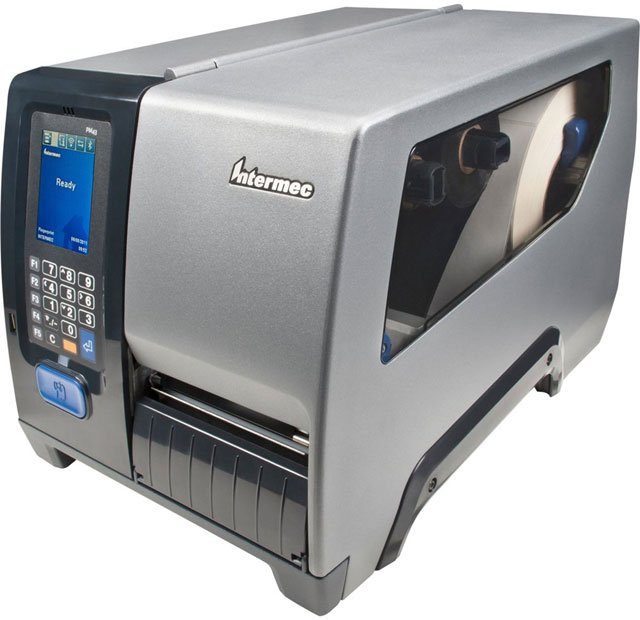

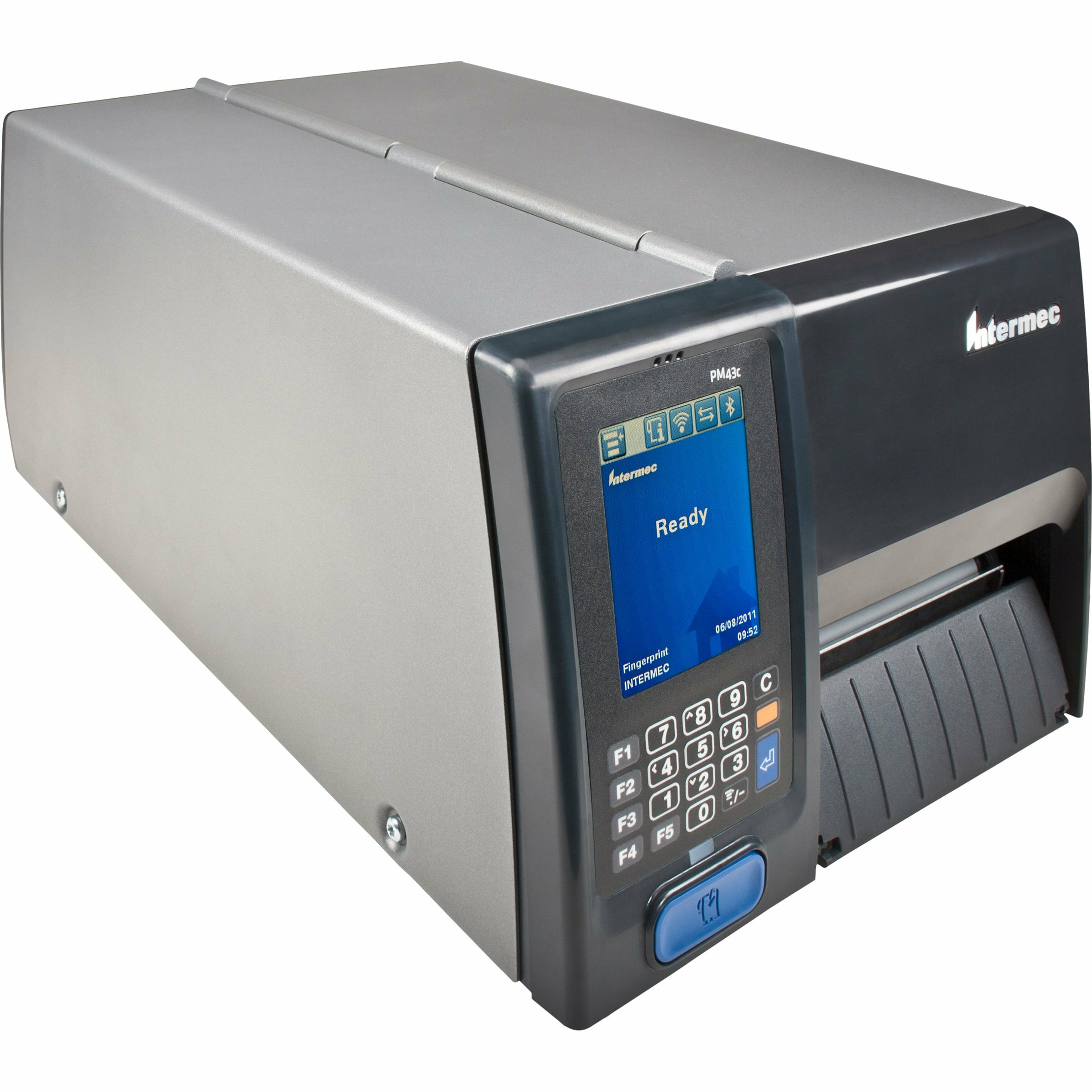

Intermec PM43A11000041211 Barcode Printer

Name: Intermec PM43A11000041211 Barcode Printer
Brand: Intermec
SKU: PM43A11000041211
Availability: OutOfStock
Rating: 4.5 (4 reviews)

Intermec PM43 - Direct thermal Printer, 203 dpi, Touch Display. Ethernet, Serial, USB Interfaces. Fixed media hanger. Rewinder. Real-time clock.

Discontinued
See Replacement

Fastest to Deploy. Seamlessly Fits Any Environment.

The Intermec PM43 mid-range industrial label printers are ready to perform. Reduce workforce training and support with the tamper-proof, 10-language, color touch-screen or universal-icon interface. The PM43 is a third-generation Intermec industrial printer designed to maximize your uptime. Count on the PM43 to deliver quick deployment, the fastest print speed in its class, and proven reliability.

Technical Information

Maximum Mono Print Speed: 12 in/s
Maximum Print Resolution: 203 dpi
Print Color: Monochrome
Maximum Print Width: 4.25"
Recommended Use: Label Print
Features:
- Real Time Clock
- Rewinder
Barcode Symbology Supported:
- UPC/EAN Shipping Container
- UCC/EAN 128 Serial Shipping Container
- LOGMARS
- POSTNET
- HIBCC
- ISBT-128
- GM1724
- Code 93
- Matrix 2 of 5
- Industrial 2 of 5
- Interleaved 2 of 5
- Code 39
- UCC/EAN 128
- Code 49
- QR Code
- Maxi Code
- Aztec Code
- Micro PDF-417
- Codabar
- Code 128
- Code 11
- Code 16K
- UPC
- PDF-417
- MSI PLESSEY
- Data Matrix
- Planet Code
- Plessey
- Standard 2 of 5
- Grid Matrix

General Information

Product Type: Direct Thermal Printer
Product Series: PM
Brand Name: Intermec
Manufacturer: Intermec Technologies Corporation
Product Model: PM43
Product Name: PM43 Mid-Range Printer

Physical Characteristics

Height: 11.6"
Width: 11.2"
Depth: 19"
Form Factor: Desktop
Weight (Approximate): 34.88 lb

Interfaces/Ports

USB: Yes
Serial Port: Yes

Media Types & Handling

Maximum Label Width: 4.50"
Media Type:
- Label
- Tag
- Linered Label
- Linerless
- Roll Fed
- Fanfold
- Gap
- Notch
- Black Mark
- Continuous Label
- Tag Stock
- Ticket
Media Thickness: 10.40 mil
Media Sensor:
- Transmissive Media Sensor
- Label Taken Sensor
Label Core Size: 3"
Maximum Roll Diameter: 8.38"

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- ENERGY STAR
- RoHS
Country of Origin: United States
Platform Supported: PC
Certifications & Standards:
- PFC Regulation: IEC320/C14
- CE (EN55022 Class A)
- FCC Class A
- UL/cUL
- C-Tick
- D Mark
- CCC

Power Description

Input Voltage:
- 110 V AC
- 220 V AC
Standby Power Consumption: 9 W
Maximum Power Consumption: 300 W
Power Source: AC Supply

Fonts & Emulation

Language Emulation:
- Fingerprint
- IPL
- ZSim
- DSim
- XML

Memory

Standard Memory: 128 MB
Memory Technology: SDRAM
Flash Memory: 128 MB

Network & Communication

Ethernet: Yes
Ethernet Technology: Fast Ethernet

Display & Graphics

Touchscreen: Yes

Warranty

Limited Warranty: 1 Year

Full specifications (PDF)

See all Intermec PM43 options »

Brand	Intermec
Model	PM43
Max Roll Outer Diameter	8, 8.38
Interface Options	Ethernet, USB, Serial
Label Core	3 inches, 1.5 inches
Max Label Width	4.50
Printer Type	Industrial
Print Speed	12
Print Resolution	203 dpi
Print Method	Direct Thermal, Thermal Transfer
Included Features	Media Hanger, Real-time clock, Rewinder
Maximum Print Width	4.25
Printer Mobility	Not Mobile
