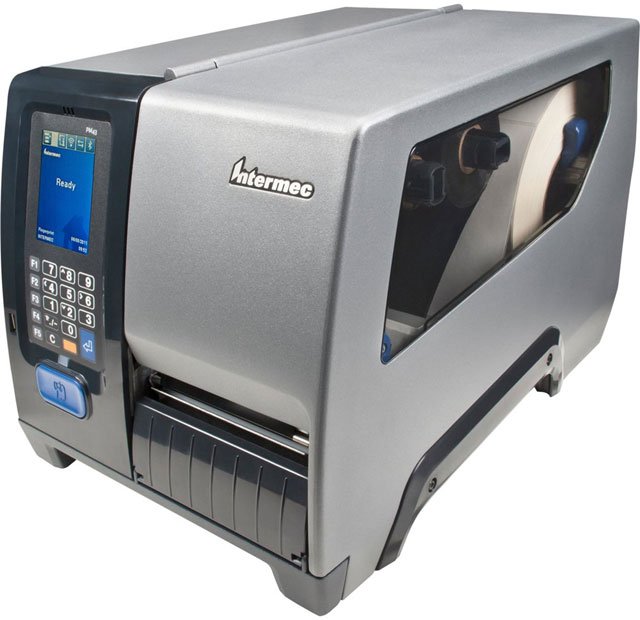

Intermec PM43A11000000401 Barcode Printer

Fastest to Deploy. Seamlessly Fits Any Environment.

The Intermec PM43 mid-range industrial label printers are ready to perform. Reduce workforce training and support with the tamper-proof, 10-language, color touch-screen or universal-icon interface. The PM43 is a third-generation Intermec industrial printer designed to maximize your uptime. Count on the PM43 to deliver quick deployment, the fastest print speed in its class, and proven reliability.

Technical Information

Maximum Mono Print Speed: 10 in/s
Maximum Print Resolution: 406 dpi
Print Color: Monochrome
Maximum Print Width: 4.09"
Recommended Use: Label Print
Barcode Symbology Supported:
- UPC/EAN Shipping Container
- UCC/EAN 128 Serial Shipping Container
- LOGMARS
- POSTNET
- HIBCC
- ISBT-128
- GM1724

General Information

Product Type: Direct Thermal/Thermal Transfer Printer
Product Series: PM
Brand Name: Intermec
Manufacturer: Intermec Technologies Corporation
Product Model: PM43
Product Name: PM43 Mid-Range Printer

Physical Characteristics

Height: 11.6"
Width: 11.2"
Depth: 19"
Form Factor: Desktop
Weight (Approximate): 34.88 lb

Interfaces/Ports

USB: Yes
Serial Port: Yes

Media Types & Handling

Maximum Label Width: 4.50"
Media Type:
- Label
- Tag
- Linered Label
- Linerless
- Roll Fed
- Fanfold
- Gap
- Notch
- Black Mark
- Continuous Label
Media Thickness: 10.40 mil
Media Sensor: Transmissive Media Sensor
Label Core Size: 3"
Ribbon Core Size: 1"
Maximum Roll Diameter: 8.38"

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- ENERGY STAR
- RoHS
Platform Supported: PC
Certifications & Standards:
- PFC Regulation: IEC320/C14
- CE (EN55022 Class A)
- FCC Class A
- UL/cUL
- C-Tick
- D Mark
- CCC

Power Description

Input Voltage:
- 110 V AC
- 220 V AC
Standby Power Consumption: 9 W
Maximum Power Consumption: 300 W
Power Source: AC Supply

Fonts & Emulation

Language Emulation:
- Fingerprint
- IPL
- ZSim
- DSim
- XML

Memory

Standard Memory: 128 MB
Memory Technology: SDRAM
Flash Memory: 128 MB

Network & Communication

Ethernet: Yes
Ethernet Technology: Fast Ethernet

Display & Graphics

Touchscreen: Yes

Warranty

Limited Warranty: 1 Year

Full specifications (PDF)

See all Intermec PM43 options »

Brand	Intermec
Model	PM43
Print Resolution	400 dpi, 406 dpi
Max Roll Outer Diameter	8, 8.38
Print Speed	12, 10
Interface Options	Ethernet, USB, Serial
Printer Type	Industrial
Maximum Print Width	4.25
Label Core	1.5 inches, 3 inches
Print Method	Thermal Transfer
Included Features	Media Hanger
Max Label Width	4.50
Printer Mobility	Not Mobile
Ribbon Core	1
