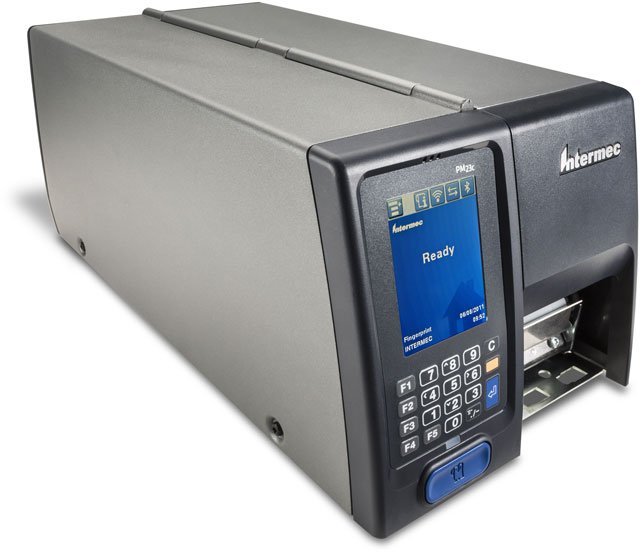

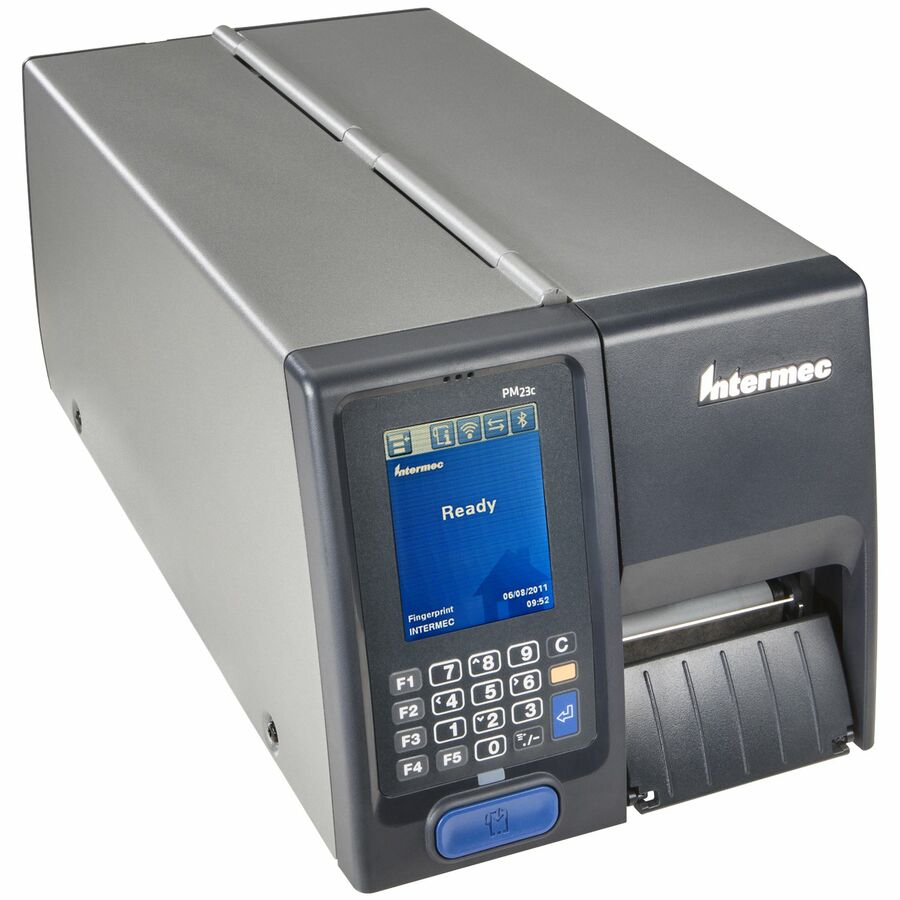

Intermec PM23c – Barcode Label Printer – 203 dpi – Direct Thermal

Part Number: PM23CA1100021211
Model: PM23c
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Direct Thermal
Interface Options
Ethernet, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  INTERMEC, PM23 DESKTOP PRINTER, TOUCH USER INTERFACE, ETHERNET, LONG DOOR, NO I/O, REWINDER & LABEL TAKEN SENSOR, HANGER, REAL TIME CLOCK, DT203DPI, US POWER CORD
Explore all Intermec PM23c Barcode Label Printers
Add to Quote
Intermec PM23CA1100021211 Barcode Label Printer
Intermec PM23CA1100021211 Barcode Label Printer
Intermec PM23CA1100021211 Barcode Label Printer
Intermec PM23CA1100021211 Barcode Label Printer Intermec PM23CA1100021211 Barcode Label Printer

Full specifications (PDF)

Intermec PM23c Barcode Label Printer Model Overview

The Intermec compact PM23c Mid-Range Industrial Printer of the PM Series features a two-inch print width and a compact footprint, ideal for demanding applications in transportation, manufacturing, retail, distribution center and warehouse environments. As the third generation of Intermec industrial printers, the rugged PM Series incorporate features that increase uptime and reduce maintenance costs. The PM23c delivers fast print speeds, drop-in deployment, advanced connectivity and proven reliability.
Intermec PM23CA1100021211 Barcode Label Printer Overview
The PM23c mid-range industrial printer features a two-inch print width and a compact footprint, ideal for demanding applications in transportation, manufacturing, retail, distribution center and warehouse environments.
Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
11.81 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
2.20"
Barcode Symbology Supported:
  • UPC/EAN Shipping Container
  • UCC/EAN 128 Serial Shipping Container
  • LOGMARS
  • POSTNET
  • HIBCC
  • ISBT-128
  • GM1724
Real Time Clock:
Yes
Rewinder:
Yes
Application/Usage:
Mid-range
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
128 MB
Memory Technology:
SDRAM
Flash Memory:
128 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Touchscreen:
Yes
Media Types & Handling
Media Type:
  • Label
  • Tag
  • Linered Media
  • Linerless
  • Ticket
  • Roll Fed
  • Fanfold
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
  • Label Taken Sensor
Maximum Roll Diameter:
8.38"
Maximum Label Width:
2.70"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • IPL
  • ZPL
  • DPL
  • XML
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Maximum Power Consumption:
300 W
Standby Power Consumption:
9 W
Miscellaneous
Platform Supported:
PC
Certifications & Standards:
  • PFC Regulation IEC320/C14
  • CE (EN55022 Class A)
  • FCC Class A
  • UL
  • cUL
  • D Mark
  • CCC
Environmentally Friendly:
Yes
Item Numbers
GTIN: 0783555099155
UPC: 783555099155
EAN: 0783555099155
UNSPSC: 43212108
