Multi-lingual Capability

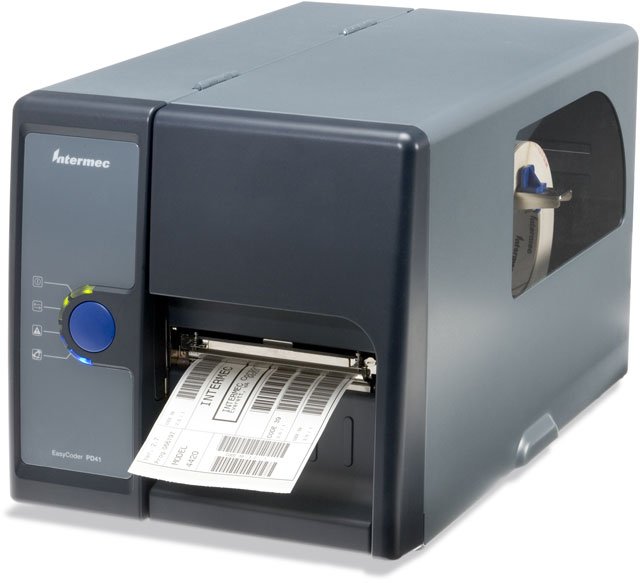

The EasyCoder PD41 is the perfect choice for medium-duty applications in manufacturing and warehousing environments-the standard features include EasyLAN high-speed, multi-channel Ethernet, multi-language capability and Ready-to-Work indicator. PrintSet, a PC-based setup tool, makes installation and setup of the EasyCoder PD41 simple and intuitive. The one-button interface makes the printer easy to operate and well protected against unintentional changes of the setup. Media loading is effortless with the open and accessible design and the printhead can be replaced without any tools. The ability to use any Intermec printer language and emulate other printer protocols makes the EasyCoder PD41 both fully compatible with other Intermec equipment and a cost-effective "drop-in" printer replacement in almost any non-Intermec firmware environment. Includes Intermec LabelShop START barcode label design software.
General Information
- Product Type: Direct Thermal Printer
- Brand Name: Intermec
- Manufacturer: Intermec Technologies Corporation
- Product Model: PD41
- Product Name: PD41 Thermal Label printer
Technical Information
- Maximum Mono Print Speed: 6 in/s
- Maximum Print Resolution: 203 dpi
- Print Color: Monochrome
- Maximum Print Width: 4.09"
- Recommended Use: Label Print
Physical Characteristics
- Height: 10.8"
- Width: 10.6"
- Depth: 17.8"
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
- Parallel Port: Yes
Media Types & Handling
- Maximum Label Width: 4.65"
- Media Type:
- Label
- Tag
- Roll Fed
- Die-cut Label
- Continuous Form
- Fanfold
- Media Thickness: 9.80 mil
- Media Sensor:
- Transmissive Media Sensor
- Reflective Media Sensor
- Label Taken Sensor
- Label Core Size: 3"
- Maximum Roll Diameter: 8.38"
Fonts & Emulation
- Language Emulation:
- IPL
- Fingerprint
- ZPL
- DPL
- EPL
- XML
Memory
- Standard Memory: 16 MB
- Memory Technology: SDRAM
- Flash Memory: 8 MB
Network & Communication
- Ethernet: Yes
- Ethernet Technology: Fast Ethernet
Full specifications (PDF)
Full specifications (PDF)
| Brand |
Intermec |
| Model |
EasyCoder PD41 |
|
Maximum Print Width
|
4.09 |
|
Max Label Width
|
4.65, 4.64 |
|
Interface Options
|
Serial, Ethernet, Parallel |
|
Max Roll Outer Diameter
|
8.35, 8 |
|
Printer Type
|
Industrial |
|
Print Resolution
|
203 dpi |
|
Print Speed
|
6 |
|
Label Core
|
1.5 inches, 3 inches |
|
Print Method
|
Direct Thermal |
|
Printer Mobility
|
Not Mobile |
