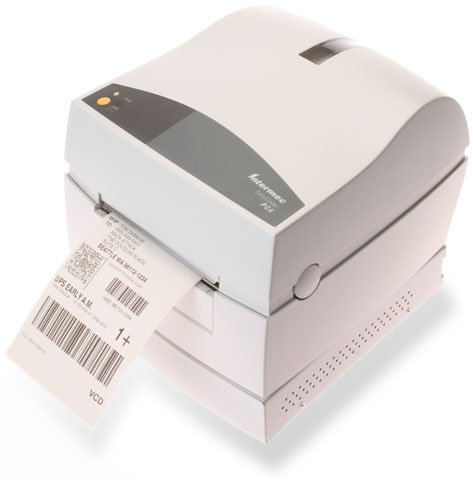

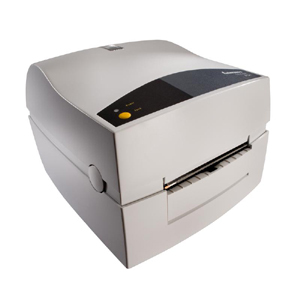

Intermec EasyCoder PC4 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: PC4C00100000

Model: EasyCoder PC4

Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Printer Type

Desktop

Printing Technology

Thermal Transfer

Interface Options

Parallel, Serial (RS-232), USB

Print Resolution

203 dpi

Product Description:

Direct thermal-Thermal transfer printing, US Power Cord, Tear Off and Self Strip with LTS, 203 dpi, Serial, Parallel and USB Ports, 2MB DRAM and 1MB Flash)

Explore all Intermec EasyCoder PC4 Barcode Label Printers

Add to Quote

Intermec PC4C00100000 Barcode Label Printer

Overview

Full specifications (PDF)

Intermec EasyCoder PC4 Barcode Label Printer Model Overview

Perfect for new installations, the Intermec EasyCoder PC4 is easy to set up and easy to use. All needed cables, software, drivers and even labels are included with the printer when it ships, making the EasyCoder PC4 ideal for busy or inexperienced users. The EasyCoder PC4 features RS232, USB and parallel interfaces, a choice of 200 or 300 dpi resolution, and a battery option for mobile printing. The Intermec EasyCoder PC4 is compatible with the EasyCoder 91 and the EasyCoder 7422 applications. Includes Intermec LabelShop START barcode label design software.

Intermec PC4C00100000 Barcode Label Printer Overview

The EasyCoder PC4 Label Printer is the perfect printer for the inexperienced or busy user. Intermec's Connect & Print concept makes setting up and printing a quick and easy task. The printer's compact size, sturdiness, and silent operation make it ideal for a variety of applications, including retail, office, healthcare, logistics, government, and manufacturing. The unique double clam shell design makes it extremely easy to load supplies with the simple drop-in method. Label and ribbon changes can be done in no time.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

4 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.10"

Barcode Symbology Supported:

Maxi Code
PDF-417
Data Matrix
QR Code
UCC/EAN 128

Features:

Tear-off

Print Technology:

Direct Thermal /Thermal Transfer

Memory

Standard Memory:

2 MB

Memory Technology:

DRAM

Flash Memory:

1 MB

Media Types & Handling

Media Type:

Label
Tag
Continuous Form

Media Size:

Custom Size - 4.65"
Custom Size - 1"

Media Sensor:

Label Taken Sensor

Maximum Roll Diameter:

Maximum Label Width:

4.65"

Maximum Label Length:

47"

Label Core Size:

1.50"

Ribbon Core Size:

0.50"

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

6.6"

Width:

9.1"

Depth:

10.1"

Miscellaneous

Power Cable Localization:

Package Contents:

EasyCoder PC4 Label Printer
US Power Cord
Centronics Parallel to DB25M Cable
Cleaning Card
User Quick Guide
Sample DT Media
Companion CD with Windows Drivers & LabelShop software

Cables Included:

Additional Information:

Self-strip with label taken sensor

Platform Supported:

Certifications & Standards:

CE
FCC Class A
C-UL
UL
GS
IEC 950/EN 60950
CB
MIC
CCC
VCCI
C-TIC
BSMI
NOM

Warranty

Limited Warranty:

1 Year
