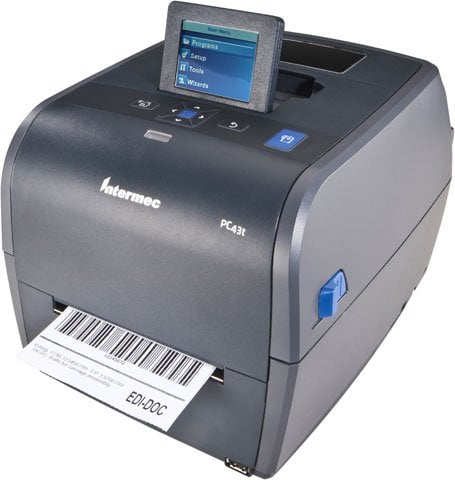

Intermec PC43t – Barcode Label Printer – 300 dpi, 305 dpi – Thermal Transfer – Real-Time Clock

Part Number: PC43TA00100301
Model: PC43t
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
USB
Print Resolution
300 dpi, 305 dpi

Product Description:

  PC43T PRINTER, 4" THERMAL TRANSFER DESKTOP WITH LCD DISPLAY AND REAL TIME CLOCK, 300DPI, INCLUDES AMERICAS POWER CORD

Honeywell PC43t Barcode Label Printer Model Overview

The Intermec PC43t Desktop Printer is designed to set a new standard in user friendliness and flexibility. The PC43t Desktop Printer features a multi-language LCD or Icon-graphics user interface for maximum ease of use. User-installable connectivity options and accessories ensure that PC43t will fit your business needs both today and tomorrow. Its low cost and fast operation make the PC43t the smart choice for light-duty labeling applications where users need a reliable, easy-to-use printing solution. The PC43t Desktop Printer is a thermal transfer, easy-to-use printer.
Intermec PC43TA00100301 Barcode Label Printer Overview

Available in 4" direct thermal (PC43d) or 4" thermal transfer (PC43t), the Intermec PC43d / PC43t is designed to set a new standard in user friendliness and flexibility. PC43d / PC43t features a multi-language LCD or Icon-graphics user interface for maximum ease of use. User-installable connectivity options and accessories ensure that PC43d / PC43t will fit your business needs both today and tomorrow. Its low cost and fast operation make the PC43d / PC43t the smart choice for light-duty labeling applications where users need a reliable, easy-to-use printing solution.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.20"
Barcode Symbology Supported:
  • Aztec Code
  • Code 16K
  • Code 49
  • Data Matrix
  • EAN.UCC 128
  • EAN-8
  • EAN-13
  • Grid Matrix
  • HIBC Code 39
  • HIBC Code 128
  • Maxi Code
  • MSI
  • PDF-417
  • Micro PDF-417
  • Planet Code
  • Plessey
  • POSTNET
  • QR Code
  • RSS-14
Real Time Clock:
Yes
Application/Usage:
Desktop
Print Technology:
Thermal Transfer
Memory
Standard Memory:
128 MB
Memory Technology:
DDR2 SDRAM
Flash Memory:
128 MB
Interfaces/Ports
USB:
Yes
Display & Graphics
Display Screen:
Yes
Screen Size:
2.4"
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Self Adhesive Label
  • Non-adhesive Tag
  • Floodcoat
  • Continuous Paper
  • Linerless
Media Sensor:
Transmissive Media Sensor
Maximum Roll Diameter:
5"
Maximum Label Width:
4.70"
Maximum Label Length:
35"
Label Core Size:
1.50"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • IPL
  • Fingerprint
  • DSim
  • E-Sim
  • ZSim
  • XML
Power Description
Power Source:
Power Adapter
Input Voltage:
24 V DC
Physical Characteristics
Height:
8.9"
Width:
8.3"
Depth:
11.1"
Weight (Approximate):
5.95 lb
Miscellaneous
Package Contents:
  • PC43t Desktop Printer
  • Software, Driver & Documentation CD
  • USB Cable
  • Power Adapter
  • Power Cord
  • Handy QuickGuide
Cables Included:
USB
Power Adapter Included:
Yes
Platform Supported:
PC
Certifications & Standards:
  • CE
  • FCC Class A
  • C-UL-US
  • UL
  • GS
  • TUVGS
  • BSMI
  • D Mark
  • cUL
  • CCC (China)
  • KCC (South Korea)
  • C-TICK (Australia/NZ)
  • UL 60950-1
  • EN 60950-1
  • CE marked
  • NYCE Certified
  • NOM 19
  • IEC 60950-1
  • USA FCC Title 47
  • Part 15
  • Subpart A
  • Class B
  • Europe EMC Directive (EN55022 Class B + EN55024)
  • CISPR22
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0735548761273, 0783555087640, 0880959934324
UPC: 735548761273, 783555087640, 880959934324
EAN: 0735548761273, 0783555087640, 0880959934324
UNSPSC: 43212108
