Intermec CN70EQ4KN14W1R10 RFID Reader


0.0

(No reviews)

Be the first to

Write a Review

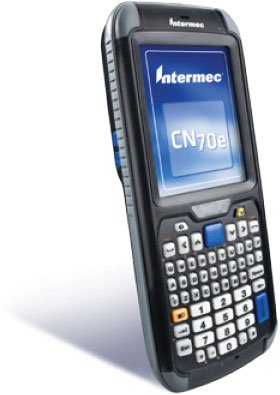

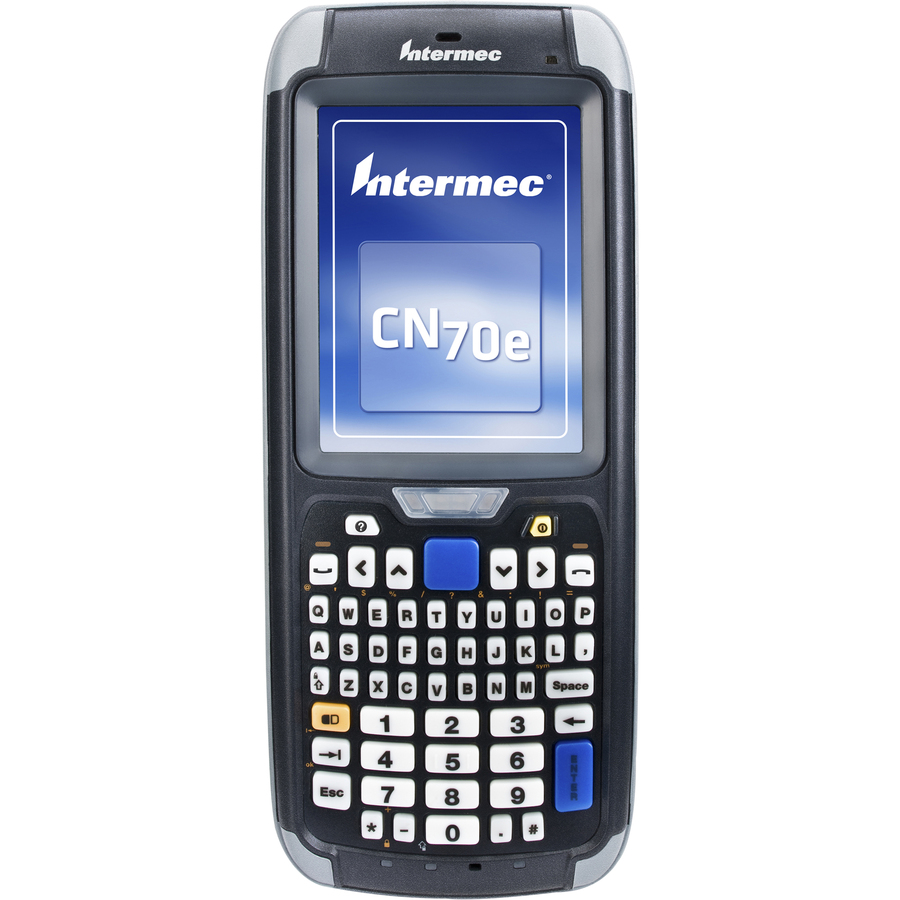

Intermec CN70e RFID Non-Incendive - CN70e RFID Reader, Non-Incendive, 2D Imager, QWERTY Keypad, No Camera, No Data Communication, Windows Embedded Handheld, Smart Systems, US and CA Version. Interface cables and charging cradle sold separately.
Superior read capability meets or exceeds typical handheld RFID read range requirements in a design that is more compact and comfortable to use.

For businesses who want to accomplish in-premise data collection tasks with greater efficiency and accuracy, the no-compromise, fully-integrated CN70e RFID mobile computer provides the perfect balance of ruggedness, duty cycle and ergonomics to deliver optimal worker productivity in demanding environments. No other reader on the market has the same advanced computing capabilities.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification:
    • 94.49" To Concrete
    • 70.87" To Concrete @ -4°F (-20°C) to 140°F (60°C)
  • Barcode Symbology Supported:
    • 1D
    • 2D

General Information

Physical Characteristics

  • Width: 3.1"
  • Depth: 1.3"
  • Length: 7.7"
  • Weight (Approximate): 1.08 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • WEEE
    • RoHS
  • Package Contents:
    • CN70e Handheld Terminal
    • Battery
    • CN70e Handheld Terminal
    • Battery
  • Certifications & Standards:
    • IP67
    • IEC 60068-2-32
    • MIL-STD 810G
    • CCXv4
    • 1000CP01
    • 1000CP01U
    • 1000CP01C
    • Safety:
    • cULus
    • DEMKO
    • BSMI
    • EMC:
    • Class B - FCC/ICES/EN
    • GOST-R
    • Radio:
    • FCC w/HAC
    • Industry Canada
    • CE 0981
    • A-tick (AU)
    • C-tick (NZ)
    • NCC
    • OFTA
    • IDA
    • ICASA
    • POSTEL
    • NTC
    • ETA
    • SIRIM
    • ANATEL
    • 61 Countries in Total

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • Wireless Security:
    • WPA
    • WPA2
    • WAPI
    • 802.1x
    • WEP (64 or 128 bit)
    • AES
    • TKIP

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 480 x 640

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 512 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 4000 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Texas Instruments
  • Processor Type: OMAP 3

Keyboard/Keypad

  • Keyboard Type: Numeric
  • Keyboard Layout: QWERTY

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Embedded Handheld 6.5.3

Full specifications (PDF)

Full specifications (PDF)

Brand Intermec
Model CN70e RFID
Scanner Type Imager
Frequency UHF
Style Handheld
Operating System Windows Embedded Handheld
Keypad QWERTY
