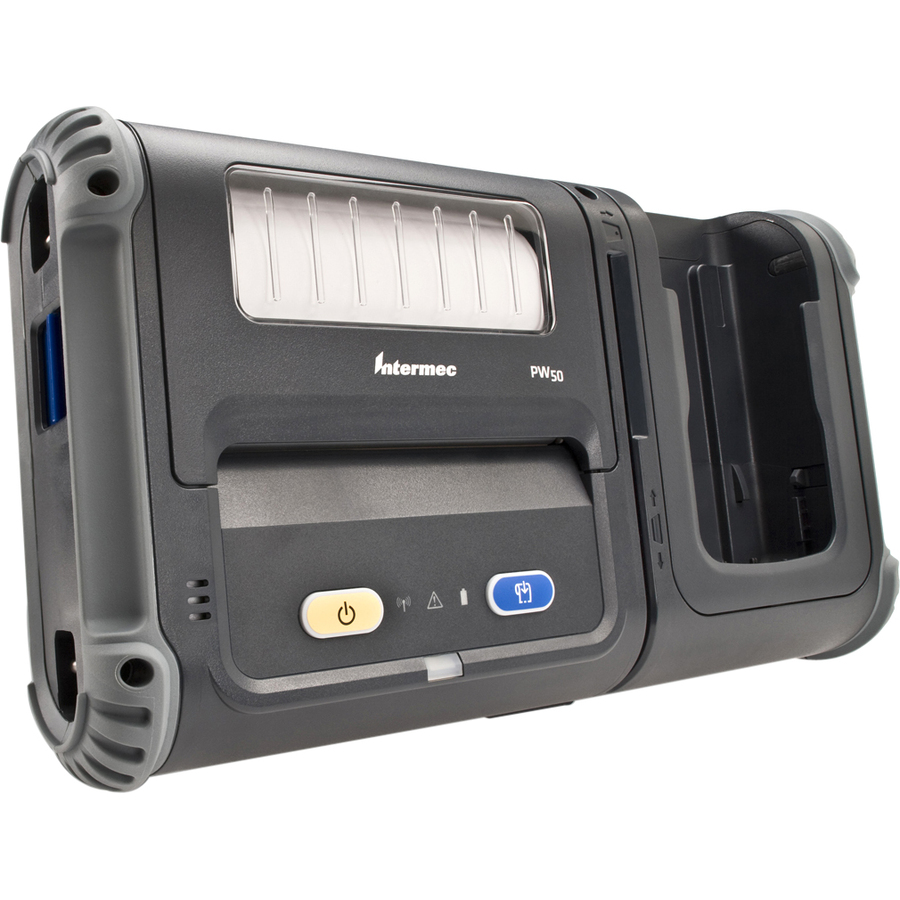

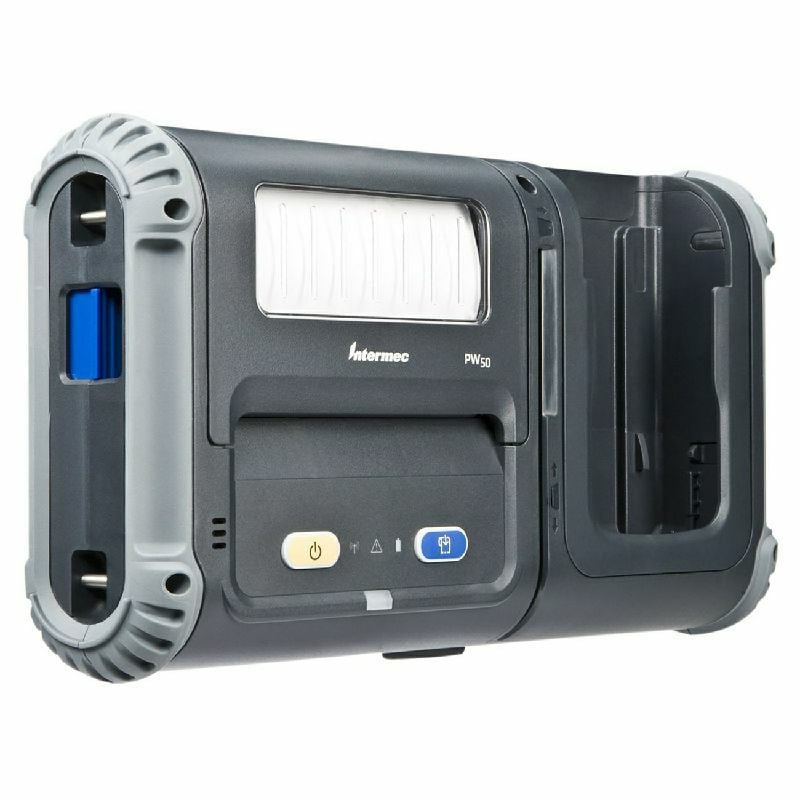

Honeywell PW50A050102 Portable Barcode Printer

Part Number: PW50A050102
Model: PW50
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Mobile
Printing Technology
Direct Thermal
Interface Options
Bluetooth, DEX, Serial (RS-232)
Print Resolution
203 dpi

Product Description:

  Intermec PW50 Direct Thermal Printer - Monochrome - Portable - Receipt Print - Serial - 4.25" Print Width - 4 in/s Mono - 203 dpi - Direct Thermal Label, Fanfold, Receipt - 4.40" Label Width - 24" Label Length
Explore all Intermec PW50 Portable Barcode Printers
Add to Quote
Honeywell PW50A050102 Portable Barcode Printer
Honeywell PW50A050102 Portable Barcode Printer
Honeywell PW50A050102 Portable Barcode Printer
Honeywell PW50A050102 Portable Barcode Printer Honeywell PW50A050102 Portable Barcode Printer Honeywell PW50A050102 Portable Barcode Printer
Full specifications (PDF)

Intermec PW50 Portable Barcode Printer Model Overview

The PW50 Mobile Workboard Printer is expertly designed to complement Intermec's CN3, CN3e, and CK61 mobile computers, making it an ideal solution for DSD, home delivery, and field service applications. This compact printer boasts integrated DEX communications for seamless connectivity, along with optional magnetic stripe and smart card readers for versatile mobile payments. Its patented power management technology maximizes battery longevity while high-speed electronics ensure rapid printing speeds, delivering high-quality output on-the-go.


Key Features
  • Integrated DEX communications for easy in-store connectivity
  • Patented power management extends battery life for maximum efficiency
  • Bluetooth® and serial communications for seamless device pairing
  • High-speed printing at 4 inches per second (IPS)
  • Durable design withstands bumps and drops typical in mobile environments

Specifications
  • Physical Characteristics:
    • Height: 180 mm (7.0 in)
    • Width: 310 mm (12.2 in)
    • Depth: 80 mm (3.2 in)
    • Weight: 1688 g (59.5 oz) with battery
  • Environmental:
    • Operating temperature: -20°C to 50°C (-4°F to 122°F)
    • Storage temperature: -30°C to 70°C (-22°F to 158°F)
    • Humidity: 10 to 90% (non-condensing)
  • Battery:
    • Rechargeable 14.8V Li-Ion, 2200mAh
    • Recharging time: 6 hours maximum
  • Print Specifications:
    • Print Speed: 4 IPS (100 mm/s)
    • Print Resolution: 203 DPI (8 dots/mm)
    • Maximum Print Width: 108 mm (4.25 in)
  • Memory:
    • RAM: 16MB
    • Flash: 64MB
Honeywell PW50A050102 Portable Barcode Printer Overview

Designed for use with Intermec CN3, CN3e and CK61 mobile computers, the PW50 mobile workboard receipt printer provides a convenient, integrated solution for DSD and field service applications. Integrated DEX connector, optional readers, Bluetooth connectivity and fast print speed simplify transaction processing. Patented power management system maximizes battery life.

Full specifications (PDF)
Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Number of Columns:
132
Maximum Print Width:
4.25"
Barcode Symbology Supported:
  • Codabar
  • Code 39
  • Code 128
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • EAN-8
  • EAN-13
  • EAN-128 Subset C
  • Interleaved 2 of 5
  • UPC-A
  • PDF-417
Features:
  • Magnetic Stripe Reader
  • Smart Card Reader
Memory
Standard Memory:
16 MB
Flash Memory:
64 MB
Interfaces/Ports
Serial Port:
Yes
Network & Communication
Bluetooth:
Yes
Media Types & Handling
Media Type:
  • Direct Thermal Label
  • Fanfold
  • Receipt
Media Thickness:
4.40 mil
Maximum Roll Diameter:
2.65"
Maximum Label Width:
4.40"
Maximum Label Length:
24"
Label Core Size:
0.75"
Fonts & Emulation
Language Emulation:
ESC/P
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Rechargeable:
Yes
Physical Characteristics
Form Factor:
Portable
Height:
7"
Width:
12.2"
Depth:
3.2"
Miscellaneous
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0735548763550, 0783555125069
UPC: 735548763550, 783555125069
EAN: 0735548763550, 0783555125069
UNSPSC: 45101512
