Intermec CN70EQ4KCD6W3100 Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review

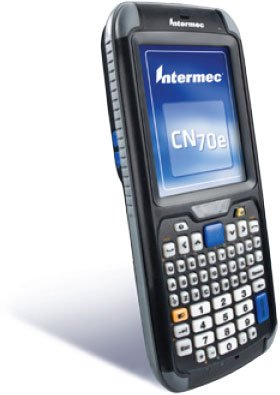

Intermec CN70e - WLAN, 2D Imager Scanner, QWERTY Keypad, Bluetooth, 1GHz Processor, Camera, CDMA VERIZON, 512MB/1GB, Windows Embedded 6.5, Smart Systems. Interface cables and charging cradle sold separately. USB Cable for single dock (Part# 236-209-001). Single slot charging cradle kit (Part# DX1A01A10). Quad dock charging cradle kit (Part# DX4A2111110).
Designed and optimized for field mobility environments

The Intermec CN70e, with a large keypad designed for use with gloves, is engineered to be at home in demanding environments, where its industry-leading performance, incredible durability and low power consumption can actually reduce overhead. Its superior scanning performance and improved ergonomics lead to increased efficiency, while its extensive communication ability meets the needs of field workers. The no-compromise design of the CN70e includes an all-light visible VGA display, high durability touch panel and indestructible keypad technology to ensure that they stay in workers' hands instead of the repair depot. The CN70e also features a 3.75G WWAN and first-in-market dual-band 802.11n WLAN radios that provide mobile workers with high-performance connectivity inside and outside the four walls. And by combining an ultra-efficient processing architecture with long-life battery technology and state-of-the-art battery health diagnostics, dead batteries and downtime will become a thing of the past.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification:
    • 94.49" To Concrete
    • 70.87" To Concrete @ -4°F (-20°C) to 140°F (60°C)
  • Barcode Symbology Supported:
    • 1D
    • 2D

General Information

Physical Characteristics

  • Width: 3.1"
  • Depth: 1.3"
  • Length: 7.7"
  • Weight (Approximate): 1.08 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • WEEE
    • RoHS
  • Package Contents:
    • CN70e Handheld Terminal
    • Battery
    • CN70e Handheld Terminal
    • Battery
  • Certifications & Standards:
    • IEEE 1725
    • IP67
    • IEC 60068-2-32
    • MIL-STD 810G
    • CCXv4
    • 1000CP01
    • 1000CP01U
    • 1000CP01C
    • Safety:
    • cULus
    • DEMKO
    • BSMI
    • EMC:
    • Class B - FCC/ICES/EN
    • GOST-R
    • Radio:
    • FCC w/HAC
    • Industry Canada
    • CE 0981
    • A-tick (AU)
    • C-tick (NZ)
    • NCC
    • OFTA
    • IDA
    • ICASA
    • POSTEL
    • NTC
    • ETA
    • SIRIM
    • ANATEL
    • 61 Countries in Total

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Cellular Network Supported: CDMA
  • Network Band: Dual Band
  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • Wireless Security:
    • WPA
    • WPA2
    • WAPI
    • 802.1x
    • WEP (64 or 128 bit)
    • AES
    • TKIP

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 480 x 640

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 512 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Processor & Chipset

  • Processor Manufacturer: Texas Instruments
  • Processor Speed: 1 GHz
  • Processor Type: OMAP 3

Battery Information

  • Battery Capacity: 4000 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Microsoft Windows Embedded Handheld 6.5

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Keyboard Layout: QWERTY

Full specifications (PDF)

Full specifications (PDF)

Brand Intermec
Model CN70e
Operating System Windows Embedded Handheld 6.5
RAM Memory 512 MB
Style Phone-size
Scanner Type Imager
Scanner Capability 2D
