Intermec CN3BQH84000E100 Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review

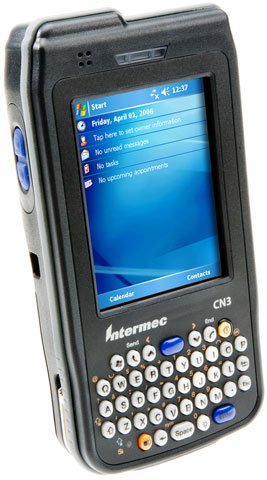

Intermec CN3 - USB interface, Wi-Fi (802.11b/g), 2D Imager, Windows Mobile 5, QWERTY Keypad, Bluetooth. Battery sold separately.

Designed to meet the needs of workers performing mission-critical tasks in transportation, logistics and field service, the Intermec CN3 mobile computer delivers a powerful combination of communications technologies in a compact, rugged package. With standard Wi-Fi, Bluetooth and choice of integrated, network independent GPS receiver and WAN voice and data services (including 3G EV-DO or EDGE), the CN3 enables companies to stay connected with their mobile workforce in real time, driving improved efficiencies and increased asset visibility across their operations. The CN3 provides access to information at the point of work, allowing companies to dynamically deploy the right resources to the right location, and enabling their mobile workers to tap into the information they need to work most effectively.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Contact Discharge
  • Drop Specification: 59.06" To Concrete

General Information

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Certifications & Standards:
    • Safety:
    • cULus Listed
    • OSHA 29 CFR 1910.178/ASMEB56.11.6 Compliant
    • GS
    • CCC
    • GOST
    • NOM
    • eK
    • HKSI
    • SABS
    • SPRING
    • prEN ISO 13564
    • EMC:
    • FCC Part 15B Class B
    • ICES-003 Class B
    • EN 55022 Class B
    • EN 55024
    • EN 301 489-17AS/ZNS 3548
    • GB9254-1998
    • Radio:
    • FCC Part 15.247
    • Industry Canada RSS 210
    • EN 300 328-2
    • Telecom Num 547
    • Other:
    • R&TTE
    • Vehicle
  • Additional Information:
    • Rain & Dust Resistance: IP54:
    • Radio Countries:
    • Canada
    • Mexico
    • New Zealand
    • United States

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11b/g
  • Wireless Security:
    • 802.11x
    • WPA
    • WEP
    • 802.11i

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 240 x 320

Memory

  • Flash Memory: 256 MB
  • Standard Memory: 128 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: miniSD Card

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 520 MHz
  • Processor Type: XScale

Keyboard/Keypad

  • Keyboard Layout: QWERTY

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 5.0

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Full specifications (PDF)

Full specifications (PDF)

Brand Intermec
Model CN3
Network Connectivity 802.11 b/g, 802.11g
RAM Memory 128MB
Style Phone-size
Operating System Windows CE 5.0
Display Resolution 240 x 320
Operating Temperature 14 F - 122 F
Processor 520 MHz Intel PXA270
IP Rating IP54
Scanner Type Imager
Data Collection Type Wireless
Scanner Capability 2D
Drop Rating 5 ft.1.5 m
