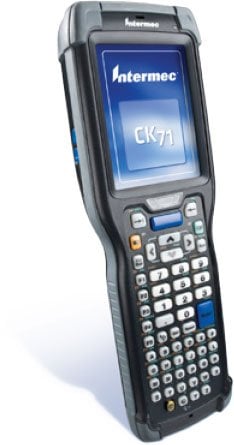

Intermec CK71AA4MN00W1400 Mobile Computer


1.0

(1 reviews)

Intermec CK71 - WLAN Only, Alphanumeric Keypad, Near-Far 2D Imager Scanner with Auto-Focus, No Camera, Windows Embedded Handheld 6.5, ICP Software. Interface cables and charging cradle sold separately. USB Cable for dock (Part# 236-209-001). Single slot charging cradle kit (Part# DX1A02B10). Quad dock charging cradle kit (Part# DX4A2222210).
31% smaller and lighter than leading devices in the ultra rugged class

The Intermec CK71 ultra-rugged mobile computer is 31% smaller and lighter than other form factors in its ultra-rugged class, plus it's optimized for warehouse and distribution environments for the perfect balance of ruggedness and duty cycle along with next generation features that focus on enabling flexibility and agility, even in the most extreme conditions. The CK71 features the industry's first dual-band 802.11n WLAN radio, delivering rock solid performance and consistently fast response times even in areas where you might experience low signal levels or intermittent connections with traditional 802.11a/b/g products. The CK71 also leverages Intermec's industry-leading near/far area imager, providing the flexibility to read both 1D and 2D barcodes without the need for specialized scanners. For highly dynamic environments, the CK71 also offers the industry's fastest imaging engine, capable of scanning barcodes moving at up to 12.7 m (500 in) per second, enabling the CK71 to provide remarkable tolerance to hand or barcode movement.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification:
    • 94.49" To Concrete
    • 70.87" To Concrete @ -4°F (-20°C) to 140°F (60°C)
  • Barcode Symbology Supported:
    • 1D
    • 2D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: CK71
  • Product Name: CK71 Ultra-Rugged Mobile Computer

Physical Characteristics

  • Width: 3.1"
  • Depth: 2"
  • Length: 9.3"
  • Weight (Approximate): 1.29 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • WEEE
    • RoHS
  • Package Contents:
    • CK71 Ultra-Rugged Mobile Computer
    • Battery
    • Client Pack (Terminal Emulator/Browser)
    • CK71 Ultra-Rugged Mobile Computer
    • Battery
    • Client Pack (Terminal Emulator/Browser)
  • Certifications & Standards:
    • IP67
    • MIL-STD 810G
    • IEC 60068-2-32
    • CCXv4
    • 1001CP01
    • Safety:
    • cULus
    • DEMKO
    • BSMI
    • EMC:
    • Class B - FCC/ICES/EN
    • GOST-R
    • Radio:
    • FCC w/HAC
    • Industry Canada
    • CE 0981
    • A-tick (AU)
    • C-tick (NZ)
    • NCC
    • OFTA
    • IDA
    • ICASA
    • POSTEL
    • NTC
    • ETA
    • SIRIM
    • ANATEL
    • 61 Countries in Total

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Network Band: Dual Band
  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • Wireless Security:
    • WPA
    • WPA2
    • 802.1x
    • WEP (64 or 128 bit)
    • AES
    • TKIP

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 480 x 640

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 512 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 5200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Texas Instruments
  • Processor Speed: 1 GHz
  • Processor Type: OMAP 3

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Microsoft Windows Embedded Handheld 6.5

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Keyboard Type: Alphanumeric

Full specifications (PDF)

Full specifications (PDF)

Brand Intermec
Model CK71
Operating System Windows Embedded Handheld 6.5
Style Full-size
RAM Memory 512 MB
Scanner Type Imager
Scanner Capability 2D
