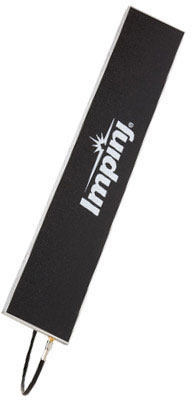

Impinj Threshold RFID Antenna
Impinj Threshold -
Initially designed for boundary/threshold crossing applications, the Impinj Threshold has a very wide beam width to maximize zone coverage. Threshold antennas provide a consistent and continuous read zone when linearly distributed head-to-tail. At 18.1 x 3.5 x 0.7 in., the Threshold's planar form factor fits readily onto fencing or other borders.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$523.00
Get help from a Barcoding Expert!
Accessories For Impinj Threshold RFID Antenna
Impinj Threshold RFID Antenna Options
-
Impinj IPJ-A0311-USA RFID Antenna
Impinj Threshold RFID Antenna, UHF, FCC, 18.1 x 3.5 x 0.7 inches, Far Field, Outdoor, Linear Polarization, 5 dBiL Gain, Includes 7 Foot SMA to R-TNC Cable. -
Impinj IPJ-A0311-EU1 RFID Antenna
Reader Antenna (ETSI) (18.1 x 3.5 x 0.7 in.) with 1 7ft SMA to R-TNC cable.
Impinj Threshold RFID Antenna Model Overview
The Impinj Threshold-FS Antenna is engineered for exceptional boundary and threshold detection, ensuring a consistent and continuous read zone even when aligned linearly. With its low-profile design measuring 457 x 89 x 19 mm, this versatile antenna is ideal for easy installation on fencing or borders. Operating effectively within the 902-928 MHz range, it offers strong far-field performance and maximizes coverage with a wide beam width. Whether for indoor or outdoor applications, the Threshold antenna delivers reliable RFID integrity.
Key Features:
Specifications:
Key Features:
- Wide Beam Width: Maximizes zone coverage for extensive boundary area.
- Strong Far-Field Performance: Ensures reliable detection at greater distances.
- Low Profile Form Factor: Fits seamlessly onto borders and fencing.
- Optimized for 902-928 MHz: Guaranteed operational performance within frequency range.
Specifications:
- Electrical Specifications:
- Frequency Range: 902 to 928 MHz
- Far-field Gain: 5.0 dBi
- VSWR: 2:1
- Input Power: 30 dBm
- ESD: 2 KV
- Environmental Specifications:
- IP Rating: IP54
- Temperature: -25 to 55 °C
- Humidity: 5-95%
- Mechanical Specifications:
- Weight: 710 grams
- Connector: BNC plug
- Dimensions: 457 x 89 x 19 mm
- Radome: ABS
- Cable Length: 305 mm
