Impinj IPJ-A0311-USA RFID Antenna
Part Number:
IPJ-A0311-USA
Model:
Threshold
Full specifications (PDF)

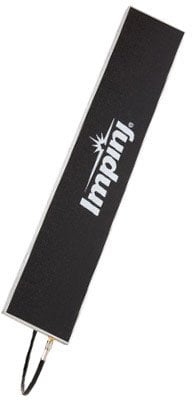

Impinj Threshold RFID Antenna Model Overview
The Impinj Threshold-FS Antenna is engineered for exceptional boundary and threshold detection, ensuring a consistent and continuous read zone even when aligned linearly. With its low-profile design measuring 457 x 89 x 19 mm, this versatile antenna is ideal for easy installation on fencing or borders. Operating effectively within the 902-928 MHz range, it offers strong far-field performance and maximizes coverage with a wide beam width. Whether for indoor or outdoor applications, the Threshold antenna delivers reliable RFID integrity.
Key Features:
Specifications:
Key Features:
- Wide Beam Width: Maximizes zone coverage for extensive boundary area.
- Strong Far-Field Performance: Ensures reliable detection at greater distances.
- Low Profile Form Factor: Fits seamlessly onto borders and fencing.
- Optimized for 902-928 MHz: Guaranteed operational performance within frequency range.
Specifications:
- Electrical Specifications:
- Frequency Range: 902 to 928 MHz
- Far-field Gain: 5.0 dBi
- VSWR: 2:1
- Input Power: 30 dBm
- ESD: 2 KV
- Environmental Specifications:
- IP Rating: IP54
- Temperature: -25 to 55 °C
- Humidity: 5-95%
- Mechanical Specifications:
- Weight: 710 grams
- Connector: BNC plug
- Dimensions: 457 x 89 x 19 mm
- Radome: ABS
- Cable Length: 305 mm
Brand
Impinj
Model
Threshold
Environment
Outdoor
Read Range
Far Field
