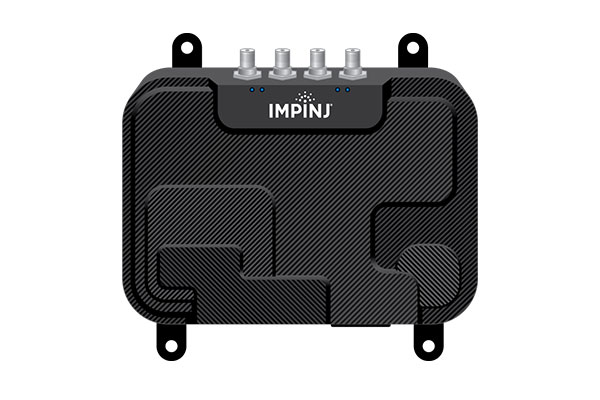

Impinj IPJ-R700-341-B RFID Reader
Full specifications (PDF)
Impinj Impinj R700 RFID Reader Model Overview
Key features:
- Enterprise-grade reliability and security with field-upgradable capabilities
- Integrated standardized connections for easy attachment to peripherals
- Gigabit Ethernet connectivity for fast data transmission
- Wide operational temperature range from -20°C to 50°C
- High sensitivity of -92 dBm for reading smaller tags
Specifications:
- Physical Dimensions: 8.4 in. x 7.4 in. x 1.2 in. (with mounting brackets)
- Power Supply: PoE (802.3af), PoE+ (802.3at)
- Air Interface Protocol: EPC global UHF Gen2 v2 / ISO 18000-63 RFID
- Frequency Range: FCC: 902-928 MHz; ETSI: 865-868 MHz, 915-921 MHz
- Transmit Power: Up to 33 dBm (PoE+) / 30 dBm (PoE)
- Receive Sensitivity: -92 dBm max
- Processor: Dual-Core 1 GHz
- Memory: 1 GB Flash, 1 GB RAM
- Network Connectivity: 10/100/1000 BASE-T Ethernet
- General Purpose I/O: 3 out, 2 in (optically isolated)
Frequently Asked Questions
What is the read rate of the Impinj R700 RAIN RFID Reader?
The Impinj R700 processes tag reads at rates up to 1100 reads per second, making it suitable for high-throughput enterprise RFID applications. This performance is powered by its dual-core 1 GHz processor and 1 GB RAM, enabling efficient handling of complex IoT solutions.
What power supply options does the Impinj IPJ-R700-341-B support?
The R700 supports both PoE (802.3af) and PoE+ (802.3at) power delivery with LLDP for automatic power negotiation. This allows seamless integration into existing network infrastructure without requiring separate power lines.
What is the receive sensitivity and frequency range of this RFID reader?
The Impinj R700 offers a high sensitivity of -92 dBm maximum, enabling it to read smaller tags reliably. It supports FCC frequencies (902–928 MHz) and ETSI frequencies (865–868 MHz, 915–921 MHz), with transmit power up to 33 dBm on PoE+ and 30 dBm on PoE.
What are the operating temperature specifications for the R700?
The Impinj R700 operates reliably across a wide temperature range from -20°C to 50°C, making it suitable for deployment in challenging environmental conditions. This broad operational range supports both cold storage and hot warehouse environments.
How many antenna ports does the Impinj R700 have and what connectivity options are available?
The R700 features 4 monostatic antenna ports with RP-TNC connectors for flexible multi-antenna configurations. It includes Gigabit Ethernet (10/100/1000 BASE-T) for fast network connectivity, 3 USB Type-A ports, 1 micro USB port, and optically isolated GPIO (3 outputs, 2 inputs) for peripheral integration.
Is the Impinj R700 suitable for enterprise security and custom applications?
Yes, the R700 is engineered for enterprise-grade reliability and security with field-upgradable capabilities and strong data protection measures. It supports custom on-reader applications, making it ideal for complex IoT solutions that require tailored functionality and enhanced security protocols.
